LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING

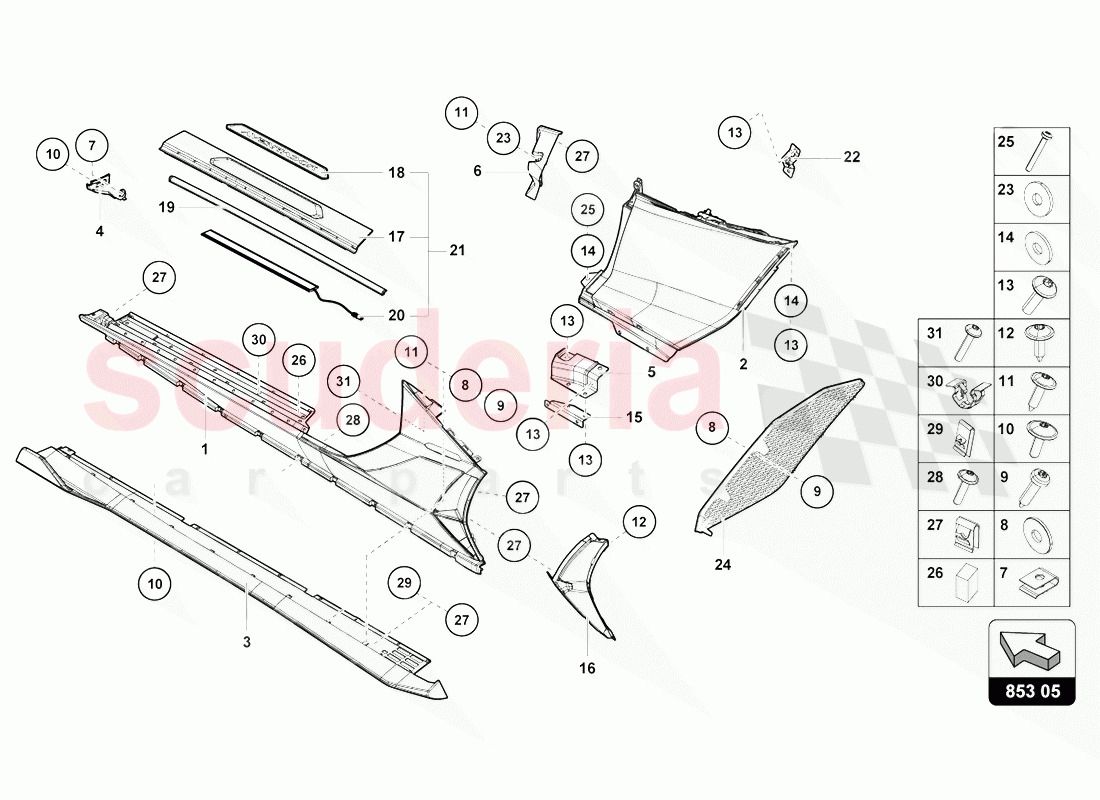

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470853553K	SIDE MEMBER TRIM	Enquire	To Order
	470853554K	SIDE MEMBER TRIM	Enquire	To Order
	470853553L	SIDE MEMBER TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470853989D	SIDE MEMBER TRIM	Enquire	To Order
	470853990D	SIDE MEMBER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853759D	WIDENED SILL PANELS	Enquire	To Order
	470853760D	WIDENED SILL PANELS	Enquire	To Order
	470853751B	WIDENED SILL PANELS	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470853293E	COVER	Enquire	To Order
	470853294E	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470814707	ARM	Enquire	To Order
	470814708	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470809953B	Cover (left)	Enquire	To Order
	470809954B	Cover (right)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90526602	SPEED NUT	Enquire	To Order
	N90170803	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166422	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT009097	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90698606	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853883A	SECURING BRACKET	Enquire	To Order
	470853884A	SECURING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853653D	RADIATOR GRILLE	Enquire	To Order
	470853654D	RADIATOR GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853369	SILL TRIM STRIP	Enquire	To Order
	470853370	SILL TRIM STRIP	Enquire	To Order
	470853369A	SILL TRIM STRIP	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470853655A	MOLDING FOR SIDE MEMBER	Enquire	To Order
	470853655B	MOLDING FOR SIDE MEMBER	Enquire	To Order
		MOLDING FOR SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853383	SEAL FOR SILL PANEL	Enquire	To Order
	470853384	SEAL FOR SILL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ENTRY LIGHTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853369	SILL TRIM STRIP	Enquire	To Order
	470853370	SILL TRIM STRIP	Enquire	To Order
	470853369A	SILL TRIM STRIP	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470814589	BRACKET	Enquire	To Order
	470814590	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470825327E	AIR GUIDE GRILLE	Enquire	To Order
	470825328E	AIR GUIDE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405702	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400845235A	DISTANCE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0154487	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91121101	HEXALOBULAR FLANGE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007409	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6N0867190A	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632202	ROUND HD. SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470853553K	SIDE MEMBER TRIM	470853553K SIDE MEMBER TRIM MATT BLACK-LEFT	-	1	Enquire
1	470853554K	SIDE MEMBER TRIM	470853554K SIDE MEMBER TRIM MATT BLACK-RIGHT	-	1	Enquire
1	470853553L	SIDE MEMBER TRIM	470853553L SIDE MEMBER TRIM SHINY BLACK-LEFT	-	1	Enquire
1	470853554L	SIDE MEMBER TRIM	470853554L SIDE MEMBER TRIM SHINY BLACK-RIGHT	-	1	Enquire
2	470853989D	SIDE MEMBER TRIM	470853989D SIDE MEMBER TRIM LEFT	-	1	Enquire
2	470853990D	SIDE MEMBER TRIM	470853990D SIDE MEMBER TRIM RIGHT	-	1	Enquire
3	470853759D	WIDENED SILL PANELS	470853759D WIDENED SILL PANELS CARBON MATT-LEFT	-	1	Enquire
3	470853760D	WIDENED SILL PANELS	470853760D WIDENED SILL PANELS CARBON MATT-RIGHT	-	1	Enquire
3	470853751B	WIDENED SILL PANELS	470853751B WIDENED SILL PANELS MATT BLACK-LEFT	-	1	Enquire
3	470853752B	WIDENED SILL PANELS	470853752B WIDENED SILL PANELS MATT BLACK-RIGHT	-	1	Enquire
3	470853751D	WIDENED SILL PANELS	470853751D WIDENED SILL PANELS SHINY BLACK-LEFT	-	1	Enquire
3	470853752D	WIDENED SILL PANELS	470853752D WIDENED SILL PANELS SHINY BLACK-RIGHT	-	1	Enquire
3	470853759C	WIDENED SILL PANELS	470853759C WIDENED SILL PANELS SHINY CARBON-LEFT	-	1	Enquire
3	470853760C	WIDENED SILL PANELS	470853760C WIDENED SILL PANELS SHINY CARBON-RIGHT	-	1	Enquire
4	470853293E	COVER	470853293E COVER LEFT	-	-	Enquire
4	470853294E	COVER	470853294E COVER RIGHT	-	-	Enquire
5	470814707	ARM	470814707 ARM LEFT REAR	-	1	Enquire
5	470814708	ARM	470814708 ARM RIGHT REAR	-	1	Enquire
6	470809953B	Cover (left)	470809953B Cover (left) LEFT	-	1	Enquire
6	470809954B	Cover (right)	470809954B Cover (right) RIGHT	-	1	Enquire
7	N90526602	SPEED NUT	N90526602 SPEED NUT CFK-M4X13,6X15	-	4	Enquire
7	N90170803	SPEED NUT	N90170803 SPEED NUT STD-4,2X13X11	-	12	Enquire
8	N01166422	WASHER	N01166422 WASHER	-	2	Enquire
9	WHT009097	SCREW	WHT009097 SCREW	-	2	Enquire
10	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	N91188301 HEXAGON SOCKET HEAD BOLT M6 X 20 M6X20	-	16	Enquire
11	N90698606	HEXAGON SOCKET HEAD PANEL BOLT	N90698606 HEXAGON SOCKET HEAD PANEL BOLT 4,2X16	-	2	Enquire
12	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT 4,2X13	-	8	Enquire
13	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	N10661002 HEX SOCKET OVAL HEAD COLLARED M6 X 20 M6X20	-	24	Enquire
14	N01166623	WASHER	N01166623 WASHER 6,4X18X1,6	-	14	Enquire
15	470853883A	SECURING BRACKET	470853883A SECURING BRACKET LEFT	-	1	Enquire
15	470853884A	SECURING BRACKET	470853884A SECURING BRACKET RIGHT	-	1	Enquire
16	470853653D	RADIATOR GRILLE	470853653D RADIATOR GRILLE LEFT	-	1	Enquire
16	470853654D	RADIATOR GRILLE	470853654D RADIATOR GRILLE RIGHT	-	1	Enquire
17	470853369	SILL TRIM STRIP	470853369 SILL TRIM STRIP OPT LIGHT - STD-LEFT	-	1	Enquire
17	470853370	SILL TRIM STRIP	470853370 SILL TRIM STRIP OPT LIGHT - STD-RIGHT	-	1	Enquire
17	470853369A	SILL TRIM STRIP	470853369A SILL TRIM STRIP OPT LIGHT - CFK-LEFT	-	1	Enquire
17	470853370A	SILL TRIM STRIP	470853370A SILL TRIM STRIP OPT LIGHT - CFK-RIGHT	-	1	Enquire
17	470853491B	SILL TRIM STRIP	470853491B SILL TRIM STRIP STD-LEFT	-	1	Enquire
17	470853492B	SILL TRIM STRIP	470853492B SILL TRIM STRIP STD-RIGHT	-	1	Enquire
17	470853491C	Sill Trim Strip (with Additional Lighting-left)	470853491C Sill Trim Strip (with Additional Lighting-left) LEFT	-	1	Enquire
17	470853492C	Sill Trim Strip (with Additional Lighting-right)	470853492C Sill Trim Strip (with Additional Lighting-right) RIGHT	-	1	Enquire
18	470853655A	MOLDING FOR SIDE MEMBER	470853655A MOLDING FOR SIDE MEMBER CARBON PACK	-	2	Enquire
18	470853655B	MOLDING FOR SIDE MEMBER	470853655B MOLDING FOR SIDE MEMBER CARBON FABRIC	-	2	Enquire
18	-	MOLDING FOR SIDE MEMBER	MOLDING FOR SIDE MEMBER NOT SOLD SEPARATELY - ORDER REF 21	-	-	Enquire
19	470853383	SEAL FOR SILL PANEL	470853383 SEAL FOR SILL PANEL LEFT	-	1	Enquire
19	470853384	SEAL FOR SILL PANEL	470853384 SEAL FOR SILL PANEL RIGHT	-	1	Enquire
20	-	ENTRY LIGHTING	ENTRY LIGHTING NOT SOLD SEPARATELY - ORDER REF 21	-	-	Enquire
21	470853369	SILL TRIM STRIP	470853369 SILL TRIM STRIP STD-LEFT	-	1	Enquire
21	470853370	SILL TRIM STRIP	470853370 SILL TRIM STRIP STD-RIGHT	-	1	Enquire
21	470853369A	SILL TRIM STRIP	470853369A SILL TRIM STRIP CFK-LEFT	-	1	Enquire
21	470853370A	SILL TRIM STRIP	470853370A SILL TRIM STRIP CFK-RIGHT	-	1	Enquire
22	470814589	BRACKET	470814589 BRACKET LEFT	-	1	Enquire
22	470814590	BRACKET	470814590 BRACKET RIGHT	-	1	Enquire
23	WHT000778	WASHER	WHT000778 WASHER 30X36X1	-	2	Enquire
24	470825327E	AIR GUIDE GRILLE	470825327E AIR GUIDE GRILLE LEFT	-	1	Enquire
24	470825328E	AIR GUIDE GRILLE	470825328E AIR GUIDE GRILLE RIGHT	-	1	Enquire
25	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT M6X45	-	4	Enquire
26	400845235A	DISTANCE PIECE	400845235A DISTANCE PIECE	-	4	Enquire
27	N0154487	SPEED NUT	N0154487 SPEED NUT 4,2X16,3X11	-	26	Enquire
28	N91121101	HEXALOBULAR FLANGE SCREW	N91121101 HEXALOBULAR FLANGE SCREW	-	18	Enquire
29	WHT007409	SPEED NUT	WHT007409 SPEED NUT	-	2	Enquire
30	6N0867190A	CLIP	6N0867190A CLIP	-	12	Enquire
31	N10632202	ROUND HD. SCREW	N10632202 ROUND HD. SCREW M6X30	-	4	Enquire
