TUNNEL of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - TUNNEL

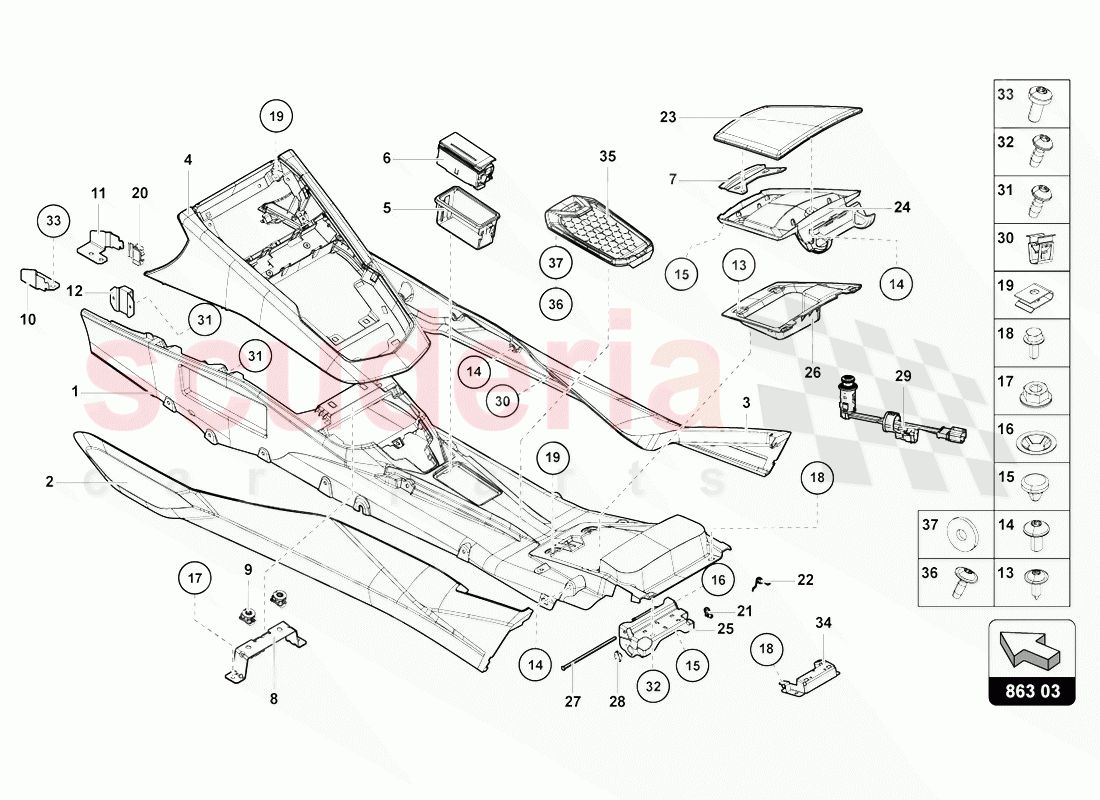

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		CENTRE CONSOLE, UPPER PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863667P	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	470863667N	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	470863667S	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863668P	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	470863668F	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	470863668R	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470863315A	Lining For Console (leather Interior - Supply Vin)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	472863849	CORNER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G8857406A6PS	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470868186	T-BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863253	ATTACHMENT BARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0806193	COMPENSATING PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863583	ATTACHMENT BARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863584	ATTACHMENT BARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863346	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653801	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470861147	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90657502	CLAMPING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653201	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0154487	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0857949A	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863285	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863286	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863761A	Cover For Drawer (alcantara Upholstery - Supply Vin-alcantara)	Enquire	To Order
	470863761	COVER FOR DRAWER	Enquire	To Order
	470863761B	Cover For Drawer (supply Vin-carbon Effect)	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470863273A	TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475861839A	SECURING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863300A	GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863348	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	418880324	BRAKE ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8J0919303A	SOCKET	Enquire	To Order
	8J0919303	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8T0853107	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10602101	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10721401	OVAL HD. SELF-TAPP FITT. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BRACKET FOR TRANSCEIVER FOR TELEPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	CENTRE CONSOLE, UPPER PART	CENTRE CONSOLE, UPPER PART 863-150	-	-	Enquire
2	470863667P	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863667P SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA - SUPPLY VIN-LEFT	-	1	Enquire
2	470863667N	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863667N SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER - SUPPLY VIN	-	1	Enquire
2	470863667S	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863667S SIDE PANEL TRIM FOR CENTRE CONSOLE ARTIFICIAL LEATHER - SUPPLY VIN- LHD	-	-	Enquire
3	470863668P	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863668P SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA - SUPPLY VIN-RIGHT	-	1	Enquire
3	470863668F	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863668F SIDE PANEL TRIM FOR CENTRE CONSOLE SEMIANILINA UPHOLSTERY - SUPPLY VIN	-	1	Enquire
3	470863668R	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863668R SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA + Q-CITURA WITH CUP HOLDER	-	1	Enquire
3	470863668Q	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863668Q SIDE PANEL TRIM FOR CENTRE CONSOLE	-	-	Enquire
3	470863668T	SIDE PANEL TRIM FOR CENTRE CONSOLE	470863668T SIDE PANEL TRIM FOR CENTRE CONSOLE SEMI- ANILINA + Q- CITURA WITH CUP HOLDER	-	-	Enquire
4	470863315A	Lining For Console (leather Interior - Supply Vin)	470863315A Lining For Console (leather Interior - Supply Vin) LEATHER INTERIOR - SUPPLY VIN	-	1	Enquire
5	472863849	CORNER TRIM	472863849 CORNER TRIM	-	1	Enquire
6	4G8857406A6PS	ASHTRAY	4G8857406A6PS ASHTRAY SOUL (BLACK)	-	1	Enquire
7	470868186	T-BAR	470868186 T-BAR	-	1	Enquire
8	470863253	ATTACHMENT BARS	470863253 ATTACHMENT BARS CENTER	-	1	Enquire
9	8E0806193	COMPENSATING PIECE	8E0806193 COMPENSATING PIECE 3,4MM	-	2	Enquire
10	470863583	ATTACHMENT BARS	470863583 ATTACHMENT BARS LEFT FRONT	-	1	Enquire
11	470863584	ATTACHMENT BARS	470863584 ATTACHMENT BARS RIGHT FRONT	-	1	Enquire
12	470863346	BRACKET	470863346 BRACKET	-	2	Enquire
13	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT 4,2X13	-	4	Enquire
14	N10653801	HEXAGON SOCKET HEAD BOLT	N10653801 HEXAGON SOCKET HEAD BOLT M5X8.0	-	16	Enquire
15	470861147	STOP BUFFER	470861147 STOP BUFFER 4,5X2,2X8,6	-	2	Enquire
16	N90657502	CLAMPING WASHER	N90657502 CLAMPING WASHER 5X11,75	-	1	Enquire
17	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	3	Enquire
18	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT M6X16	-	4	Enquire
19	N0154487	SPEED NUT	N0154487 SPEED NUT 4,2X16,3X11	-	4	Enquire
20	4D0857949A	GROMMET	4D0857949A GROMMET	-	2	Enquire
21	470863285	SPRING	470863285 SPRING LEFT	-	-	Enquire
22	470863286	SPRING	470863286 SPRING RIGHT	-	-	Enquire
23	470863761A	Cover For Drawer (alcantara Upholstery - Supply Vin-alcantara)	470863761A Cover For Drawer (alcantara Upholstery - Supply Vin-alcantara) ALCANTARA UPHOLSTERY - SUPPLY VIN-ALCANTARA	-	1	Enquire
23	470863761	COVER FOR DRAWER	470863761 COVER FOR DRAWER LEATHER INTERIOR - SUPPLY VIN-LEATHER (STANDARD)	-	1	Enquire
23	470863761B	Cover For Drawer (supply Vin-carbon Effect)	470863761B Cover For Drawer (supply Vin-carbon Effect) SEMI- ANILINA - SUPPLY VIN-CARBON EFFECT	-	1	Enquire
23	470863761C	COVER FOR DRAWER	470863761C COVER FOR DRAWER ALCANTARA + Q-CITURA - SUPPLY VIN	-	1	Enquire
24	470863273A	TRIM	470863273A TRIM INNER	-	1	Enquire
25	475861839A	SECURING BRACKET	475861839A SECURING BRACKET	-	1	Enquire
26	470863300A	GLOVE COMPARTMENT	470863300A GLOVE COMPARTMENT	-	1	Enquire
27	470863348	PIN	470863348 PIN	-	1	Enquire
28	418880324	BRAKE ELEMENT	418880324 BRAKE ELEMENT	-	2	Enquire
29	8J0919303A	SOCKET	8J0919303A SOCKET OUTLET 12V	-	1	Enquire
29	8J0919303	CIGARETTE LIGHTER	8J0919303 CIGARETTE LIGHTER LIGHTER	-	1	Enquire
30	8T0853107	CLIP	8T0853107 CLIP	-	6	Enquire
31	N10602101	HEXAGON SOCKET FLAT HEAD BOLT	N10602101 HEXAGON SOCKET FLAT HEAD BOLT	-	10	Enquire
32	N10721401	OVAL HD. SELF-TAPP FITT. SCREW	N10721401 OVAL HD. SELF-TAPP FITT. SCREW	-	3	Enquire
33	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
34	-	ARM	ARM NOT FOR THIS MODEL - ONLY FOR ROADSTER	-	-	Enquire
35	-	BRACKET FOR TRANSCEIVER FOR TELEPHONE	BRACKET FOR TRANSCEIVER FOR TELEPHONE NOT FOR THIS MODEL	-	-	Enquire
36	-	HEXAGON SOCKET HEAD PANEL BOLT	HEXAGON SOCKET HEAD PANEL BOLT NOT FOR THIS MODEL	-	-	Enquire
37	-	WASHER	WASHER NOT FOR THIS MODEL	-	-	Enquire
