DRIVER AND PASSENGER DOOR of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - DRIVER AND PASSENGER DOOR

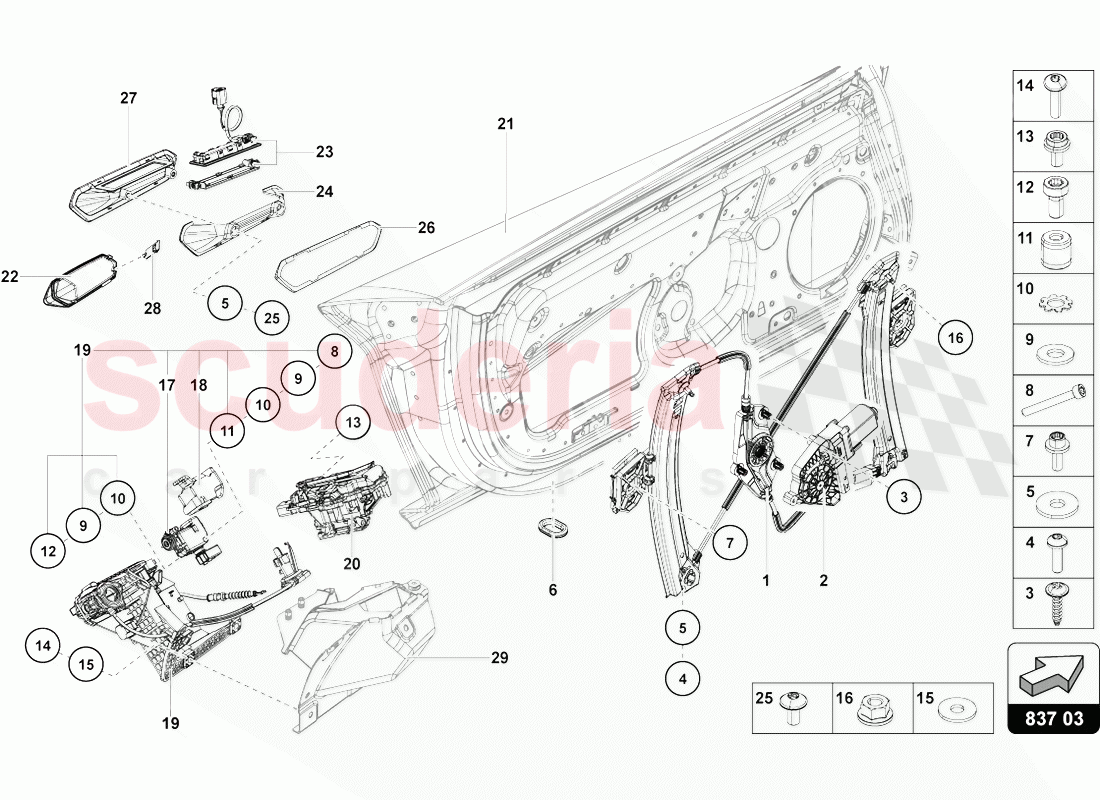

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470837397B	Window Regulator Without Motor (left)	Enquire	To Order
	470837398G	Window Regulator Without Motor (right)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0959801B	WINDOW REGULATOR MOTOR	Enquire	To Order
	8K0959802B	WINDOW REGULATOR MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470813591	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		DAMPING SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002225A	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632202	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002961	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000127	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ACTUATOR FOR IMPACT SOUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SERVOMOTOR HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471837011	DOOR LOCK WITH DOOR CONTACT SWITCH	Enquire	To Order
	471837012	DOOR LOCK WITH DOOR CONTACT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471837015B	DOOR LOCK WITH DOOR CONTACT SWITCH	Enquire	To Order
	471837016B	DOOR LOCK WITH DOOR CONTACT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471837599G	REMOVABLE LID	Enquire	To Order
	472837599G	REMOVABLE LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470827566A	OPERATING MECHANISM WITH MICRO SWITCH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	470831635B	BRACKET DOOR HANDLE	Enquire	To Order
	470831636A	Bracket For Grab Handle (right)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837521A	SEAL	Enquire	To Order
	470837522A	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837159B	DOOR HANDLE, EXTERIOR	Enquire	To Order
	470837160B	DOOR HANDLE, EXTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853582	SECURING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		MUD WING COMPENSATION PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470837397B	Window Regulator Without Motor (left)	470837397B Window Regulator Without Motor (left) LEFT	-	1	Enquire
1	470837398G	Window Regulator Without Motor (right)	470837398G Window Regulator Without Motor (right) RIGHT	-	1	Enquire
2	8K0959801B	WINDOW REGULATOR MOTOR	8K0959801B WINDOW REGULATOR MOTOR LEFT	-	1	Enquire
2	8K0959802B	WINDOW REGULATOR MOTOR	8K0959802B WINDOW REGULATOR MOTOR RIGHT	-	1	Enquire
3	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT 5X22	-	6	Enquire
4	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT M6X20	-	4	Enquire
5	N01166623	WASHER	N01166623 WASHER 6,4X18X1,6	-	8	Enquire
6	470813591	COVER	470813591 COVER	-	4	Enquire
7	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91104901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X25	-	4	Enquire
8	-	SOCKET HEAD BOLT	SOCKET HEAD BOLT CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
9	-	WASHER	WASHER CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
10	-	WASHER	WASHER CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
11	-	DAMPING SLEEVE	DAMPING SLEEVE CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
12	-	SOCKET HEAD BOLT	SOCKET HEAD BOLT CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
13	WHT002225A	HEXAGON SOCKET HEAD BOLT	WHT002225A HEXAGON SOCKET HEAD BOLT M8X16	-	6	Enquire
14	N10632202	ROUND HD. SCREW	N10632202 ROUND HD. SCREW M6X30	-	6	Enquire
15	WHT002961	WASHER	WHT002961 WASHER 6,5X18X1,5	-	6	Enquire
16	WHT000127	HEXAGON NUT	WHT000127 HEXAGON NUT M8	-	4	Enquire
17	-	ACTUATOR FOR IMPACT SOUND	ACTUATOR FOR IMPACT SOUND CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
18	-	SERVOMOTOR HOLDER	SERVOMOTOR HOLDER CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
19	471837011	DOOR LOCK WITH DOOR CONTACT SWITCH	471837011 DOOR LOCK WITH DOOR CONTACT SWITCH LEFT LHD	-	1	Enquire
19	471837012	DOOR LOCK WITH DOOR CONTACT SWITCH	471837012 DOOR LOCK WITH DOOR CONTACT SWITCH RIGHT LHD	-	1	Enquire
20	471837015B	DOOR LOCK WITH DOOR CONTACT SWITCH	471837015B DOOR LOCK WITH DOOR CONTACT SWITCH LEFT LHD	-	1	Enquire
20	471837016B	DOOR LOCK WITH DOOR CONTACT SWITCH	471837016B DOOR LOCK WITH DOOR CONTACT SWITCH RIGHT LHD	-	1	Enquire
21	-	DOOR	DOOR SEE ILLUSTRATION :- 837-020	-	-	Enquire
22	471837599G	REMOVABLE LID	471837599G REMOVABLE LID LEFT	-	1	Enquire
22	472837599G	REMOVABLE LID	472837599G REMOVABLE LID RIGHT	-	1	Enquire
23	470827566A	OPERATING MECHANISM WITH MICRO SWITCH ARRIVING SOON	470827566A OPERATING MECHANISM WITH MICRO SWITCH ARRIVING SOON	-	2	Enquire
24	470831635B	BRACKET DOOR HANDLE	470831635B BRACKET DOOR HANDLE LEFT	-	1	Enquire
24	470831636A	Bracket For Grab Handle (right)	470831636A Bracket For Grab Handle (right) RIGHT	-	1	Enquire
25	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT M5X10	-	4	Enquire
26	470837521A	SEAL	470837521A SEAL LEFT	-	1	Enquire
26	470837522A	SEAL	470837522A SEAL RIGHT	-	1	Enquire
27	470837159B	DOOR HANDLE, EXTERIOR	470837159B DOOR HANDLE, EXTERIOR LEFT	-	1	Enquire
27	470837160B	DOOR HANDLE, EXTERIOR	470837160B DOOR HANDLE, EXTERIOR RIGHT	-	1	Enquire
28	470853582	SECURING ELEMENT	470853582 SECURING ELEMENT	-	2	Enquire
29	-	MUD WING COMPENSATION PLATE	MUD WING COMPENSATION PLATE SEE ILLUSTRATION :- 821-020	-	-	Enquire
