DOOR PANEL of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - DOOR PANEL

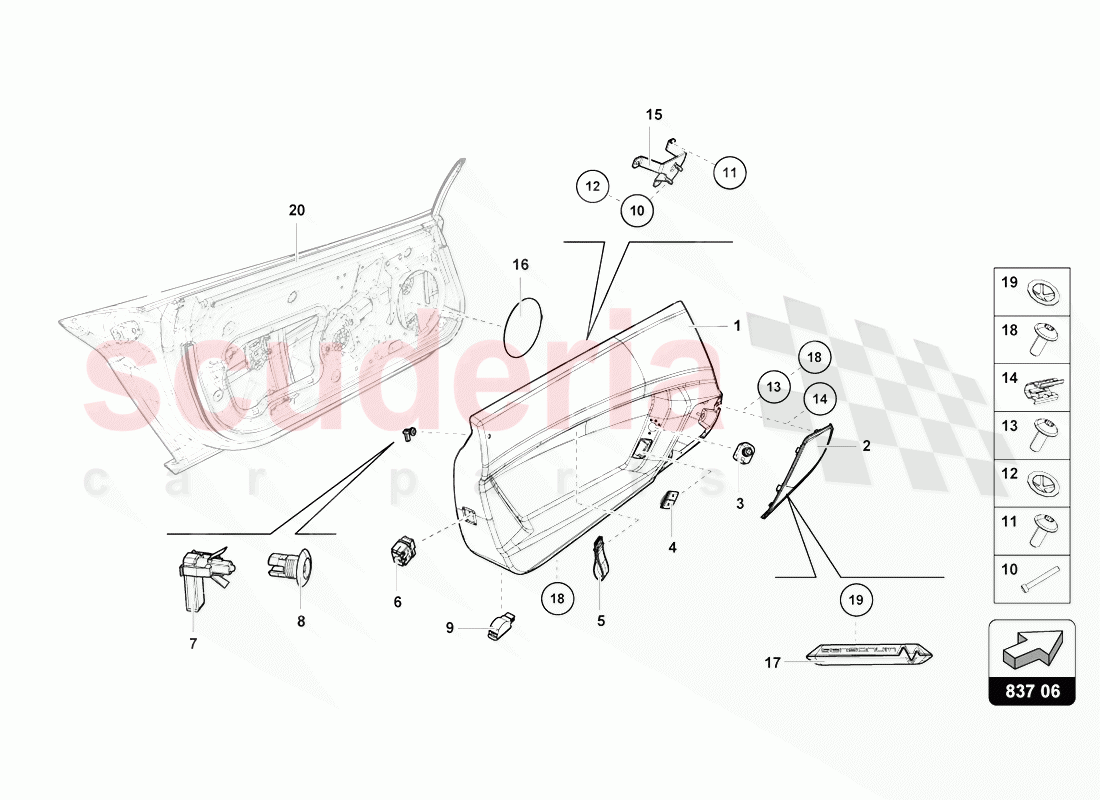

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	471867105M	DOOR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470868151C	LOUDSPEAKER GRILLE	Enquire	To Order
	470868152C	LOUDSPEAKER GRILLE	Enquire	To Order
	470868151D	LOUDSPEAKER GRILLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0959565	SWITCH FOR EXTERIOR MIRROR WITH ELECTRIC ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G8962107	SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM	Enquire	To Order
	4G8962108	SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837221	PULL HANDLE	Enquire	To Order
	470837222	PULL HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4F0962109	BUTTON FOR DEACTIVATION OF ANTI-THEFT ALARM SYSTEM AND TOW-AWAY PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8N0919238	WARNING LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0919424A4PK	SLEEVE DWA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6Y0947411	DOOR WARNING LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470858175A	HINGE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10595002	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90657502	CLAMPING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10464802	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3B0867190	SPRING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837895	BRACKET	Enquire	To Order
	470837896	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0837903	COVER (SELF-ADHESIVE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853741	LETTERING	Enquire	To Order
	470853740	LETTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90684705	HEXAGON SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10588402	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		DOOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	471867105M	DOOR PANEL	471867105M DOOR PANEL CARBON LOOK SHINY-LEFT LHD	-	1	Enquire
2	470868151C	LOUDSPEAKER GRILLE	470868151C LOUDSPEAKER GRILLE LEFT	-	1	Enquire
2	470868152C	LOUDSPEAKER GRILLE	470868152C LOUDSPEAKER GRILLE RIGHT	-	1	Enquire
2	470868151D	LOUDSPEAKER GRILLE	470868151D LOUDSPEAKER GRILLE PREMIUM SOUND SYSTEM-LEFT	-	1	Enquire
2	470868152D	LOUDSPEAKER GRILLE	470868152D LOUDSPEAKER GRILLE PREMIUM SOUND SYSTEM-RIGHT	-	1	Enquire
3	4T0959565	SWITCH FOR EXTERIOR MIRROR WITH ELECTRIC ADJUSTMENT	4T0959565 SWITCH FOR EXTERIOR MIRROR WITH ELECTRIC ADJUSTMENT BLACK H77	-	1	Enquire
4	4G8962107	SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM	4G8962107 SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM LEFT	-	1	Enquire
4	4G8962108	SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM	4G8962108 SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM RIGHT	-	1	Enquire
5	470837221	PULL HANDLE	470837221 PULL HANDLE SUPPLY VIN-LEFT	-	1	Enquire
5	470837222	PULL HANDLE	470837222 PULL HANDLE SUPPLY VIN-RIGHT	-	1	Enquire
6	4F0962109	BUTTON FOR DEACTIVATION OF ANTI-THEFT ALARM SYSTEM AND TOW-AWAY PROTECTION	4F0962109 BUTTON FOR DEACTIVATION OF ANTI-THEFT ALARM SYSTEM AND TOW-AWAY PROTECTION ANTI-THEFT SYSTEM	-	1	Enquire
7	8N0919238	WARNING LAMP	8N0919238 WARNING LAMP	-	1	Enquire
8	8Z0919424A4PK	SLEEVE DWA	8Z0919424A4PK SLEEVE DWA	-	2	Enquire
9	6Y0947411	DOOR WARNING LIGHT	6Y0947411 DOOR WARNING LIGHT RED	-	2	Enquire
10	470858175A	HINGE PIN	470858175A HINGE PIN	-	4	Enquire
11	N10595002	ROUND HD. SCREW	N10595002 ROUND HD. SCREW M5X18	-	4	Enquire
12	N90657502	CLAMPING WASHER	N90657502 CLAMPING WASHER 5X11,75	-	2	Enquire
13	N10464802	OVAL HEXAGON SOCKET HEAD BOLT	N10464802 OVAL HEXAGON SOCKET HEAD BOLT 4X12	-	2	Enquire
14	3B0867190	SPRING CLIP	3B0867190 SPRING CLIP	-	20	Enquire
15	470837895	BRACKET	470837895 BRACKET LEFT	-	1	Enquire
15	470837896	BRACKET	470837896 BRACKET RIGHT	-	1	Enquire
16	8K0837903	COVER (SELF-ADHESIVE)	8K0837903 COVER (SELF-ADHESIVE)	-	2	Enquire
17	470853741	LETTERING	470853741 LETTERING PREMIUM SOUND SYSTEM-'SENSONUM' LEFT	-	1	Enquire
17	470853740	LETTERING	470853740 LETTERING PREMIUM SOUND SYSTEM-'SENSONUM' RIGHT	-	1	Enquire
18	N90684705	HEXAGON SOCKET HEAD BOLT (COMBI)	N90684705 HEXAGON SOCKET HEAD BOLT (COMBI) M6X20	-	4	Enquire
19	N10588402	SPEED NUT	N10588402 SPEED NUT	-	2	Enquire
20	-	DOOR	DOOR SEE ILLUSTRATION :- 837-020	-	-	Enquire
