Find Your Part

DRIVER AND PASSENGER DOOR of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

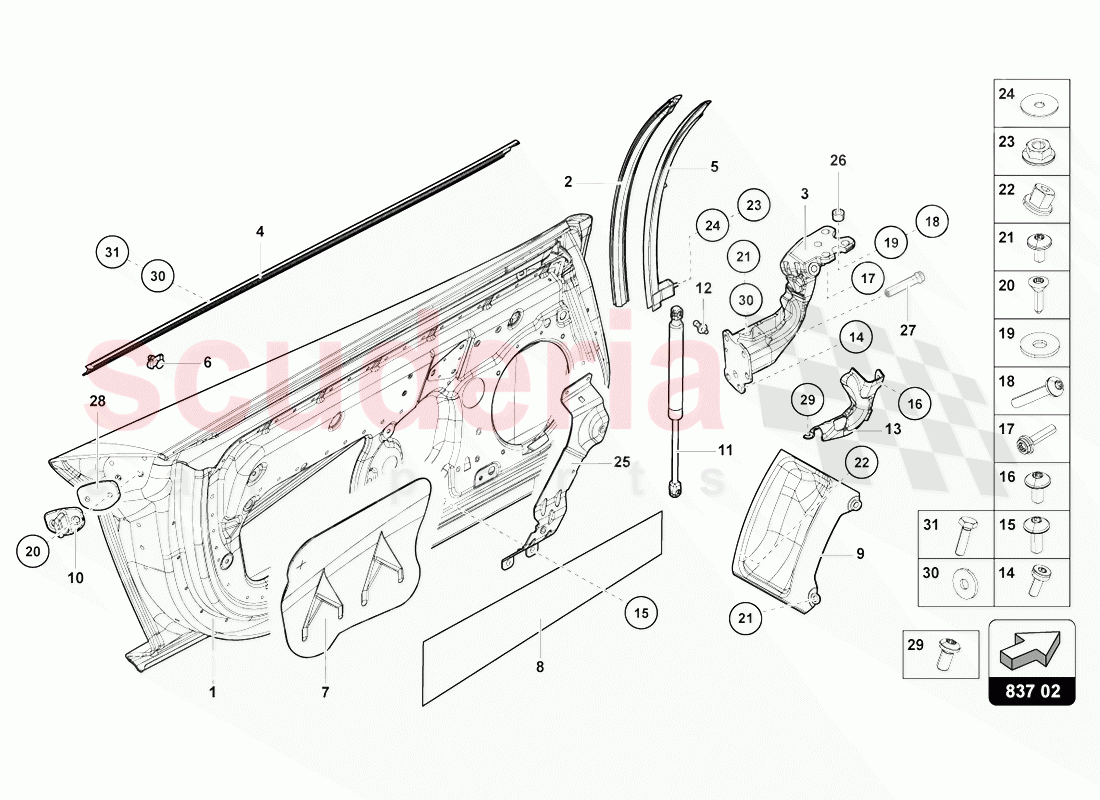

Lamborghini Aventador LP770 SVJ Coupe - DRIVER AND PASSENGER DOOR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470831051G	Door (contact Your Area Manager-left)	Enquire	To Order
	470831052G	DOOR-IN-WHITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837349D	DOOR SEAL	Enquire	To Order
	470837350D	DOOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470831411G	DOOR HINGE	Enquire	To Order
	470831412F	Door Hinge (right)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837703F	WINDOW APERTURE SEAL	Enquire	To Order
	470837704F	WINDOW APERTURE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837403G	WINDOW GUIDE	Enquire	To Order
	470837404F	Window Guide (from Vin Ela02674-right)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8L3837199B	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837917A	DOOR SEAL	Enquire	To Order
	470837918A	DOOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8J0837805A	SOUND ABSORBER (SELF-ADHESIVE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470831437B	COVER	Enquire	To Order
	470831438B	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0837033	LOCK STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837723E	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837646A	BALL STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470831547D	COVER	Enquire	To Order
	470831548D	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008391	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10665002	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10554005	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01152527	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005435	COUNTERSUNK BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10015101	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017307	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91109201	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470831121F	REINFORCEMENT FOR DOOR HANDLE	Enquire	To Order
	470831122F	REINFORCEMENT FOR DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470831400A	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470837779A	INTERMEDIATE LAYER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91030702	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10854301	HEXAGON BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470831051G	Door (contact Your Area Manager-left)	470831051G Door (contact Your Area Manager-left) CONTACT YOUR AREA MANAGER-LEFT	-	1	Enquire
1	470831052G	DOOR-IN-WHITE	470831052G DOOR-IN-WHITE RIGHT	-	1	Enquire
2	470837349D	DOOR SEAL	470837349D DOOR SEAL LEFT	-	1	Enquire
2	470837350D	DOOR SEAL	470837350D DOOR SEAL RIGHT	-	1	Enquire
3	470831411G	DOOR HINGE	470831411G DOOR HINGE LEFT	-	1	Enquire
3	470831412F	Door Hinge (right)	470831412F Door Hinge (right) RIGHT	-	1	Enquire
4	470837703F	WINDOW APERTURE SEAL	470837703F WINDOW APERTURE SEAL LEFT	-	1	Enquire
4	470837704F	WINDOW APERTURE SEAL	470837704F WINDOW APERTURE SEAL RIGHT	-	1	Enquire
5	470837403G	WINDOW GUIDE	470837403G WINDOW GUIDE FROM VIN ELA02674-LEFT	-	1	Enquire
5	470837404F	Window Guide (from Vin Ela02674-right)	470837404F Window Guide (from Vin Ela02674-right) FROM VIN ELA02674-RIGHT	-	1	Enquire
6	8L3837199B	CLIP	8L3837199B CLIP	-	14	Enquire
7	470837917A	DOOR SEAL	470837917A DOOR SEAL LEFT	-	1	Enquire
7	470837918A	DOOR SEAL	470837918A DOOR SEAL RIGHT	-	1	Enquire
8	8J0837805A	SOUND ABSORBER (SELF-ADHESIVE)	8J0837805A SOUND ABSORBER (SELF-ADHESIVE) 600X120/80X2,7	-	2	Enquire
9	470831437B	COVER	470831437B COVER LEFT	-	1	Enquire
9	470831438B	COVER	470831438B COVER RIGHT	-	1	Enquire
10	8E0837033	LOCK STRIKER	8E0837033 LOCK STRIKER	-	2	Enquire
11	470837723E	SPRING	470837723E SPRING	-	2	Enquire
12	470837646A	BALL STUD	470837646A BALL STUD	-	4	Enquire
13	470831547D	COVER	470831547D COVER LEFT	-	1	Enquire
13	470831548D	COVER	470831548D COVER RIGHT	-	1	Enquire
14	WHT008391	HEXAGON BOLT	WHT008391 HEXAGON BOLT M8X20	-	10	Enquire
15	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	10	Enquire
16	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT M5X10	-	8	Enquire
17	N10665002	FLAT HEAD MULTI-POINT SOCKET BOLT	N10665002 FLAT HEAD MULTI-POINT SOCKET BOLT M8X30	-	8	Enquire
18	N10554005	ROUND HD. SCREW	N10554005 ROUND HD. SCREW M6X35	-	4	Enquire
19	N01152527	WASHER	N01152527 WASHER 8,4X16X1,6	-	4	Enquire
20	WHT005435	COUNTERSUNK BOLT	WHT005435 COUNTERSUNK BOLT M8X30	-	4	Enquire
21	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	N91096601 HEXAGON SOCKET FLAT HEAD BOLT M6X12	-	4	Enquire
22	N10015101	HEXAGON NUT	N10015101 HEXAGON NUT	-	1	Enquire
23	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT M5	-	4	Enquire
24	N91109201	WASHER	N91109201 WASHER 5,3X20X1	-	4	Enquire
25	470831121F	REINFORCEMENT FOR DOOR HANDLE	470831121F REINFORCEMENT FOR DOOR HANDLE LEFT	-	1	Enquire
25	470831122F	REINFORCEMENT FOR DOOR HANDLE	470831122F REINFORCEMENT FOR DOOR HANDLE RIGHT	-	1	Enquire
26	470831400A	GROMMET	470831400A GROMMET	-	4	Enquire
27	-	SOCKET HEAD BOLT	SOCKET HEAD BOLT CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 3	-	-	Enquire
28	470837779A	INTERMEDIATE LAYER	470837779A INTERMEDIATE LAYER	-	-	Enquire
29	N91030702	HEXAGON SOCKET FLAT HEAD BOLT	N91030702 HEXAGON SOCKET FLAT HEAD BOLT M4X8	-	2	Enquire
30	WHT000778	WASHER	WHT000778 WASHER 30X36X1	-	2	Enquire
31	N10854301	HEXAGON BOLT	N10854301 HEXAGON BOLT M4X14	-	2	Enquire
