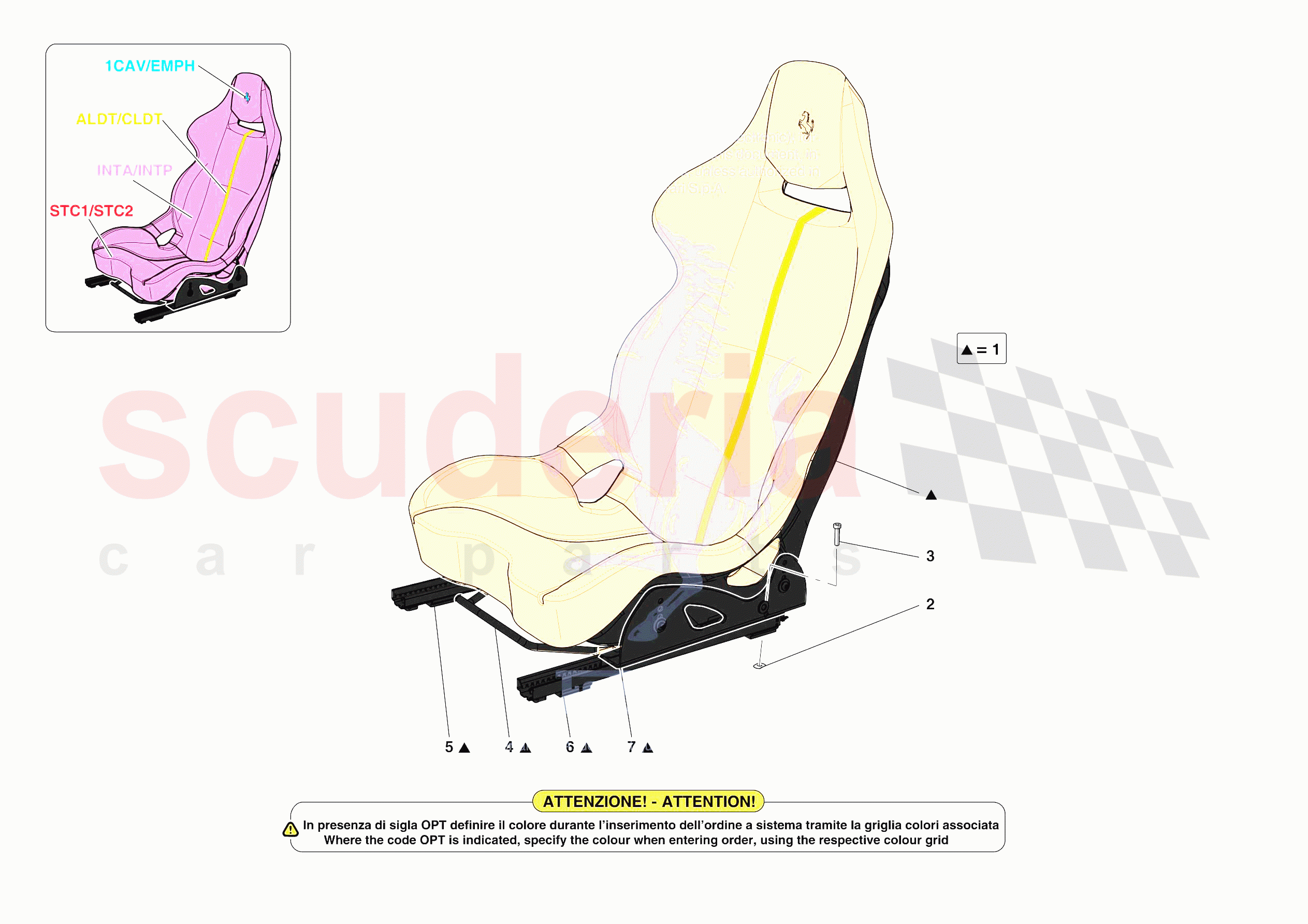

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65806500	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85635700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768800	SEAT ARCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86770900	RH GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86771000	LH GUIDE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	834176	MONOCOQUE SHELL SEAT, SIZE M	834176 MONOCOQUE SHELL SEAT, SIZE M INTP - INTA - CLDT - ALDT - EMPH - 1CAV - STC1 - STC2	-	2	Enquire
0001	834178	MONOCOQUE SHELL SEAT, SIZE L	834178 MONOCOQUE SHELL SEAT, SIZE L INTP - INTA - CLDT - ALDT - EMPH - 1CAV - STC1 - STC2	-	2	Enquire
0002	65806500	SPRING PLATE	65806500 SPRING PLATE	-	4	Enquire
0003	85635700	SCREW	85635700 SCREW M8 X 33	-	8	Enquire
0004	86768800	SEAT ARCH	86768800 SEAT ARCH	-	2	Enquire
0005	86770900	RH GUIDE	86770900 RH GUIDE	-	2	Enquire
0006	86771000	LH GUIDE	86771000 LH GUIDE	-	2	Enquire
0007	88850600	LH BRACKET	88850600 LH BRACKET	-	2	Enquire
0007	88850500	RH BRACKET	88850500 RH BRACKET	-	2	Enquire
