ENGINE COMPARTMENT INSULATION of Ferrari Ferrari Monza SPA2 Europe

View All

Ferrari Monza SPA2 Europe - ENGINE COMPARTMENT INSULATION

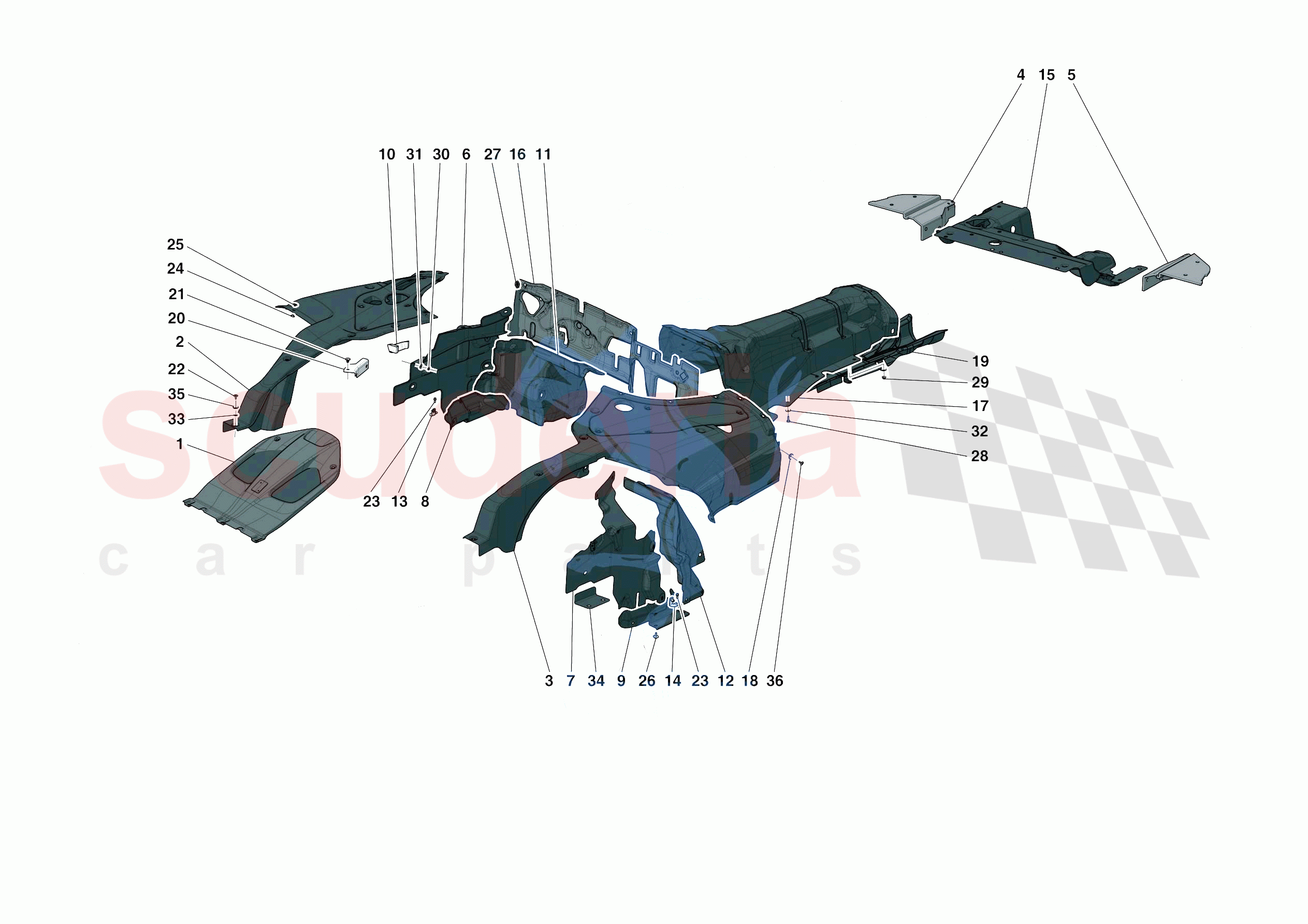

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	849230	COMPL. CENTRAL ENGINE COMPARTMENT COVER	Enquire	To Order
	861194	COMPL. CENTRAL ENGINE COMPARTMENT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	852398	COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER	Enquire	To Order
	861217	COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	852405	COMPL. LH LATERAL ENGINE COMPARTMENT COVER	Enquire	To Order
	861232	COMPL. LH LATERAL ENGINE COMPARTMENT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827862	RH SILENCER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827865	LH SILENCER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88703400	UPPER RH MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88703300	LH MANIFOLD UPPER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88703700	RH BODYWORK REAR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88703600	LH BODYWORK REAR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	909955	LATERAL ENGINE COMPARTMENT COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88703200	RH CATALYTIC CONVERTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88703100	LH CATALYTIC CONVERTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88495000	CENTRAL FASTENER BRACKET FOR RH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88495100	CENTRAL FASTENER BRACKET FOR LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88463500	SERVICES TUB HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87742200	UPPER FIREWALL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85676300	COMPL. TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299593	TRANSMISSION SHAFT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295058	ANGULAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296823	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84247400	FEMALE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84247300	MALE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84533500	CERAMIC WASHER	Enquire	To Order
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	922547	LH GPF PIPE HEAT SHIELD	Enquire	To Order
	922548	RH GPF PIPE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	849230	COMPL. CENTRAL ENGINE COMPARTMENT COVER	849230 COMPL. CENTRAL ENGINE COMPARTMENT COVER	-	1	Enquire
0001	861194	COMPL. CENTRAL ENGINE COMPARTMENT COVER	861194 COMPL. CENTRAL ENGINE COMPARTMENT COVER Carbon version	-	1	Enquire
0002	852398	COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER	852398 COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER	-	1	Enquire
0002	861217	COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER	861217 COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER Carbon version	-	1	Enquire
0003	852405	COMPL. LH LATERAL ENGINE COMPARTMENT COVER	852405 COMPL. LH LATERAL ENGINE COMPARTMENT COVER	-	1	Enquire
0003	861232	COMPL. LH LATERAL ENGINE COMPARTMENT COVER	861232 COMPL. LH LATERAL ENGINE COMPARTMENT COVER Carbon version	-	1	Enquire
0004	827862	RH SILENCER HEAT SHIELD	827862 RH SILENCER HEAT SHIELD	-	1	Enquire
0005	827865	LH SILENCER HEAT SHIELD	827865 LH SILENCER HEAT SHIELD	-	1	Enquire
0006	88703400	UPPER RH MANIFOLD HEAT SHIELD	88703400 UPPER RH MANIFOLD HEAT SHIELD	-	1	Enquire
0007	88703300	LH MANIFOLD UPPER HEAT SHIELD	88703300 LH MANIFOLD UPPER HEAT SHIELD	-	1	Enquire
0008	88703700	RH BODYWORK REAR HEAT SHIELD	88703700 RH BODYWORK REAR HEAT SHIELD	-	1	Enquire
0009	88703600	LH BODYWORK REAR HEAT SHIELD	88703600 LH BODYWORK REAR HEAT SHIELD	-	1	Enquire
0010	909955	LATERAL ENGINE COMPARTMENT COVER SEAL	909955 LATERAL ENGINE COMPARTMENT COVER SEAL No longer supplied	-	2	Enquire
0011	88703200	RH CATALYTIC CONVERTER HEAT SHIELD	88703200 RH CATALYTIC CONVERTER HEAT SHIELD	-	1	Enquire
0012	88703100	LH CATALYTIC CONVERTER HEAT SHIELD	88703100 LH CATALYTIC CONVERTER HEAT SHIELD	-	1	Enquire
0013	88495000	CENTRAL FASTENER BRACKET FOR RH HEAT SHIELD	88495000 CENTRAL FASTENER BRACKET FOR RH HEAT SHIELD	-	1	Enquire
0014	88495100	CENTRAL FASTENER BRACKET FOR LH HEAT SHIELD	88495100 CENTRAL FASTENER BRACKET FOR LH HEAT SHIELD	-	1	Enquire
0015	88463500	SERVICES TUB HEAT SHIELD	88463500 SERVICES TUB HEAT SHIELD	-	1	Enquire
0016	87742200	UPPER FIREWALL INSULATION	87742200 UPPER FIREWALL INSULATION	-	1	Enquire
0017	85676300	COMPL. TUNNEL HEAT SHIELD	85676300 COMPL. TUNNEL HEAT SHIELD	-	1	Enquire
0018	219344	WASHER	219344 WASHER D. 8.5 X 24 X 3	-	2	Enquire
0019	299593	TRANSMISSION SHAFT HEAT SHIELD	299593 TRANSMISSION SHAFT HEAT SHIELD	-	1	Enquire
0020	295058	ANGULAR SHIELD	295058 ANGULAR SHIELD	-	1	Enquire
0021	296823	BUTTON	296823 BUTTON	-	2	Enquire
0022	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16 M5 X 12	-	2	Enquire
0023	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0024	84247400	FEMALE CLIP	84247400 FEMALE CLIP	-	10	Enquire
0025	84247300	MALE CLIP	84247300 MALE CLIP	-	10	Enquire
0026	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	14	Enquire
0027	67315400	WASHER	67315400 WASHER	-	27	Enquire
0028	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20 M6 X 25	-	8	Enquire
0029	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0030	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M 5 X 5	-	2	Enquire
0031	12643778	WASHER	12643778 WASHER 18 X 1.5	-	8	Enquire
0032	12642078	WASHER	12642078 WASHER	-	10	Enquire
0033	84533500	CERAMIC WASHER	84533500 CERAMIC WASHER	-	20	Enquire
0033	263276	WASHER	263276 WASHER	-	25	Enquire
0034	922547	LH GPF PIPE HEAT SHIELD	922547 LH GPF PIPE HEAT SHIELD	-	1	Enquire
0034	922548	RH GPF PIPE HEAT SHIELD	922548 RH GPF PIPE HEAT SHIELD	-	1	Enquire
0035	263276	WASHER	263276 WASHER	-	25	Enquire
0036	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16 M5 X 12	-	2	Enquire
