DASHBOARD - TRIM -NOT FOR RHD- of Ferrari Ferrari Monza SPA2 Europe

View All

Ferrari Monza SPA2 Europe - DASHBOARD - TRIM -NOT FOR RHD-

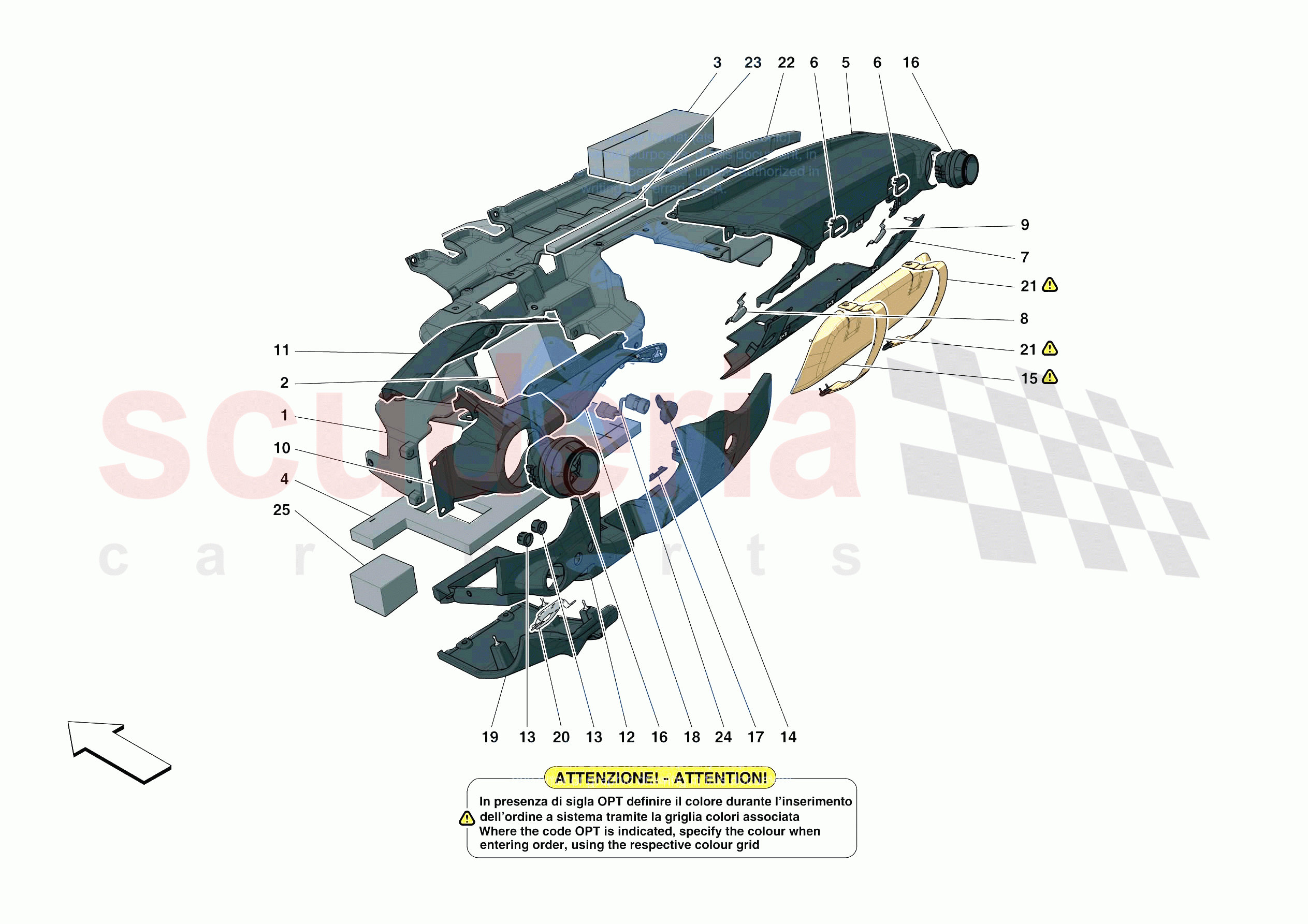

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	831518	DASHBOARD SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85154300	LH DASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83636400	RH DASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83705600	CENTRAL DASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831299	PASSENGER SIDE UPPER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831303	UPPER ELASTIC FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831311	PASSENGER SIDE LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	854222	INNER PASSENGER SIDE TWEETER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	854223	OUTER PASSENGER SIDE TWEETER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831313	COMPL. COVER FOR LH UPPER VENT ZONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831314	CENTRE COVER BEHIND INSTRUMENT BINNACLE	Enquire	To Order
	874589	CENTRE COVER BEHIND INSTRUMENT BINNACLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	906577	COMPL. DRIVER SIDE UNDERDASH TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268000	TRIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	834233	CENTRE DRIVER SIDE TWEETER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831527	COMPL. KNEE REST	Enquire	To Order
	906533	COMPL. KNEE REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88752200	AC VENT	Enquire	To Order
	87893200	AC VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808863	TEMPERATURE SENSOR COVER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88036300	COMPL. STEERING COLUMN SHIELD DASHBOARD BELLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831318	COMPL. FUSE BOX COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	832763	EPB BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878860	COMPLETE STRAP WITH ELASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895740	PASSENGER SIDE UPPER DASHBOARD SECTION SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895880	PASSENGER SIDE UPPER DASHBOARD SECTION SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236847	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	934695	DRIVER SIDE DASHBOARD ANTI-VIBRATION PAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	831518	DASHBOARD SUBSTRUCTURE	831518 DASHBOARD SUBSTRUCTURE	-	1	Enquire
0002	85154300	LH DASHBOARD INSULATION	85154300 LH DASHBOARD INSULATION	-	1	Enquire
0003	83636400	RH DASHBOARD INSULATION	83636400 RH DASHBOARD INSULATION	-	1	Enquire
0004	83705600	CENTRAL DASHBOARD INSULATION	83705600 CENTRAL DASHBOARD INSULATION	-	1	Enquire
0005	831299	PASSENGER SIDE UPPER COVER	831299 PASSENGER SIDE UPPER COVER	-	1	Enquire
0006	831303	UPPER ELASTIC FASTENER PLATE	831303 UPPER ELASTIC FASTENER PLATE	-	2	Enquire
0007	831311	PASSENGER SIDE LOWER COVER	831311 PASSENGER SIDE LOWER COVER	-	1	Enquire
0008	854222	INNER PASSENGER SIDE TWEETER GRILLE	854222 INNER PASSENGER SIDE TWEETER GRILLE	-	1	Enquire
0009	854223	OUTER PASSENGER SIDE TWEETER GRILLE	854223 OUTER PASSENGER SIDE TWEETER GRILLE	-	1	Enquire
0010	831313	COMPL. COVER FOR LH UPPER VENT ZONE	831313 COMPL. COVER FOR LH UPPER VENT ZONE	-	1	Enquire
0011	831314	CENTRE COVER BEHIND INSTRUMENT BINNACLE	831314 CENTRE COVER BEHIND INSTRUMENT BINNACLE Applies until depletion	-	1	Enquire
0011	874589	CENTRE COVER BEHIND INSTRUMENT BINNACLE	874589 CENTRE COVER BEHIND INSTRUMENT BINNACLE Applicable after depletion of 831314	-	1	Enquire
0012	906577	COMPL. DRIVER SIDE UNDERDASH TRIM	906577 COMPL. DRIVER SIDE UNDERDASH TRIM	-	1	Enquire
0013	268000	TRIM RING	268000 TRIM RING	-	2	Enquire
0014	834233	CENTRE DRIVER SIDE TWEETER GRILLE	834233 CENTRE DRIVER SIDE TWEETER GRILLE	-	1	Enquire
0015	831527	COMPL. KNEE REST	831527 COMPL. KNEE REST Leather; INTP	-	1	Enquire
0015	906533	COMPL. KNEE REST	906533 COMPL. KNEE REST Alcantara; INTA	-	1	Enquire
0016	88752200	AC VENT	88752200 AC VENT Version with black rings	-	2	Enquire
0016	87893200	AC VENT	87893200 AC VENT Version with red rings	-	2	Enquire
0017	808863	TEMPERATURE SENSOR COVER GRILLE	808863 TEMPERATURE SENSOR COVER GRILLE Leather	-	1	Enquire
0018	88036300	COMPL. STEERING COLUMN SHIELD DASHBOARD BELLOW	88036300 COMPL. STEERING COLUMN SHIELD DASHBOARD BELLOW	-	1	Enquire
0019	831318	COMPL. FUSE BOX COVER	831318 COMPL. FUSE BOX COVER	-	1	Enquire
0020	832763	EPB BRACKET	832763 EPB BRACKET	-	1	Enquire
0021	878860	COMPLETE STRAP WITH ELASTIC	878860 COMPLETE STRAP WITH ELASTIC Leather - STC1 - STC2; INTP	-	2	Enquire
0022	895740	PASSENGER SIDE UPPER DASHBOARD SECTION SEAL	895740 PASSENGER SIDE UPPER DASHBOARD SECTION SEAL	-	1	Enquire
0023	895880	PASSENGER SIDE UPPER DASHBOARD SECTION SEAL	895880 PASSENGER SIDE UPPER DASHBOARD SECTION SEAL	-	1	Enquire
0024	236847	TEMPERATURE SENSOR	236847 TEMPERATURE SENSOR	-	1	Enquire
0025	934695	DRIVER SIDE DASHBOARD ANTI-VIBRATION PAD	934695 DRIVER SIDE DASHBOARD ANTI-VIBRATION PAD No longer supplied	-	1	Enquire
