Find Your Part

ROLLBAR of Ferrari Ferrari Monza SPA2 Europe

View All

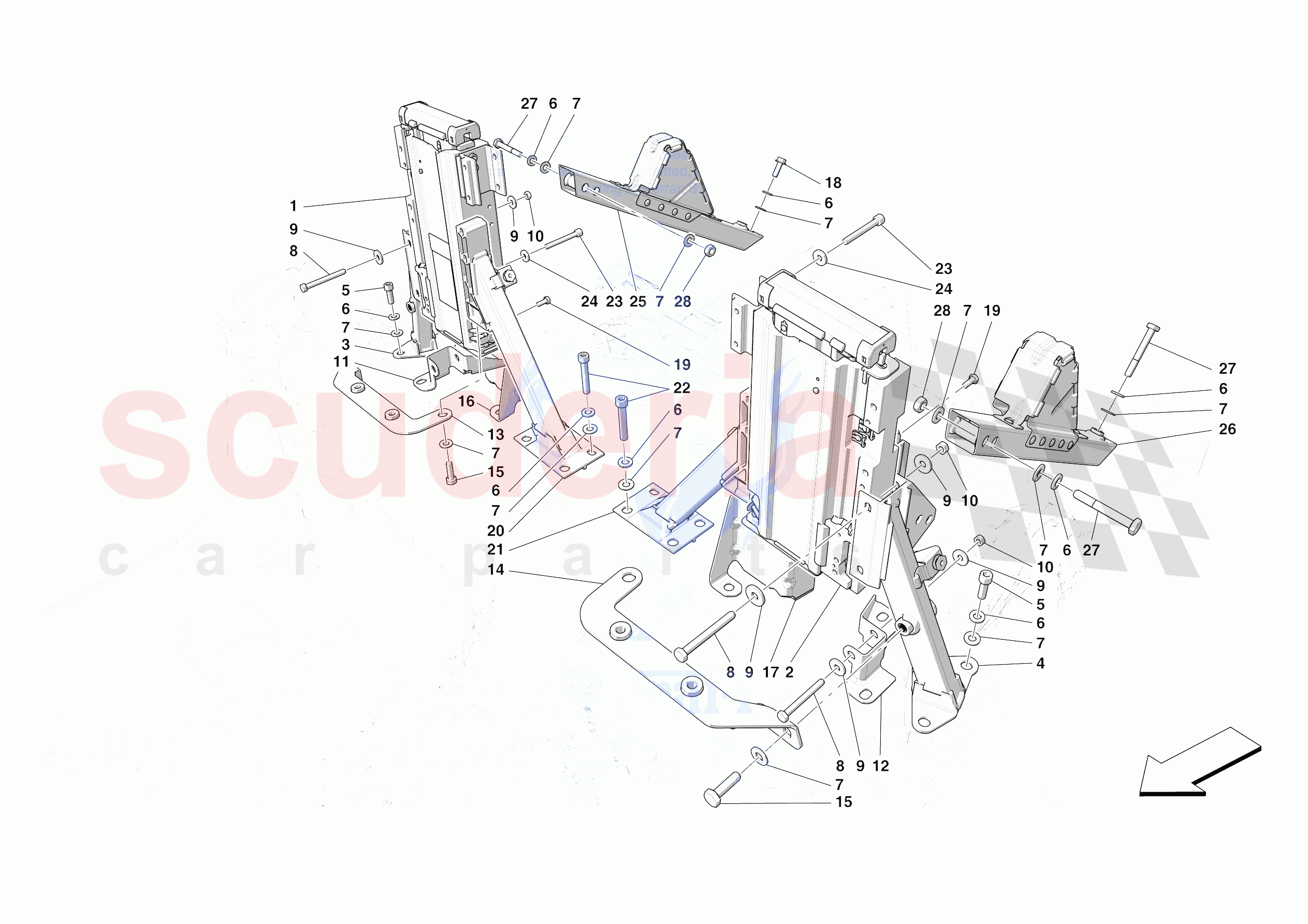

Ferrari Monza SPA2 Europe - ROLLBAR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	828379	RH ROLL BAR	Enquire	To Order
	787473	RH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828378	LH ROLL BAR	Enquire	To Order
	787472	LH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849379	OUTER MOUNT FOR RH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	843915	OUTER MOUNT FOR LH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11198374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15213924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301583	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831176	RH FRONT FASTENER BRACKET FOR ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831175	LH FRONT FASTENER BRACKET FOR ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849332	COMPL. RH SEAT BELT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849340	COMPL. LH SEAT BELT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970934	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	848335	RH REAR ROLL BAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	848332	REAR BRACKET FOR LH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68984500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	852276	RH ROLL BAR MOUNTING EXTRUSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	843913	LH ROLL BAR MOUNTING EXTRUSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308134	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904672	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860490	REAR EXTRUDED MOUNT FOR RH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	844199	REAR EXTRUDED MOUNT FOR LH ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15971334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	828379	RH ROLL BAR	828379 RH ROLL BAR Applies until depletion	-	1	Enquire
0001	787473	RH ROLL BAR	787473 RH ROLL BAR Applicable after depletion of 828379	-	1	Enquire
0002	828378	LH ROLL BAR	828378 LH ROLL BAR Applies until depletion	-	1	Enquire
0002	787472	LH ROLL BAR	787472 LH ROLL BAR Applicable after depletion of 828378	-	1	Enquire
0003	849379	OUTER MOUNT FOR RH ROLL BAR	849379 OUTER MOUNT FOR RH ROLL BAR	-	1	Enquire
0004	843915	OUTER MOUNT FOR LH ROLL BAR	843915 OUTER MOUNT FOR LH ROLL BAR	-	1	Enquire
0005	14307534	SCREW	14307534 SCREW M10 X 1.25 X 30	-	18	Enquire
0006	11198374	WASHER	11198374 WASHER	-	31	Enquire
0007	13578324	WASHER	13578324 WASHER	-	38	Enquire
0008	15213924	SCREW	15213924 SCREW M8 X 70	-	6	Enquire
0009	219344	WASHER	219344 WASHER D. 8.5 X 24 X 3	-	13	Enquire
0010	301583	NUT	301583 NUT	-	6	Enquire
0011	831176	RH FRONT FASTENER BRACKET FOR ROLL BAR	831176 RH FRONT FASTENER BRACKET FOR ROLL BAR	-	1	Enquire
0012	831175	LH FRONT FASTENER BRACKET FOR ROLL BAR	831175 LH FRONT FASTENER BRACKET FOR ROLL BAR	-	1	Enquire
0013	849332	COMPL. RH SEAT BELT MOUNTING BRACKET	849332 COMPL. RH SEAT BELT MOUNTING BRACKET	-	1	Enquire
0014	849340	COMPL. LH SEAT BELT MOUNTING BRACKET	849340 COMPL. LH SEAT BELT MOUNTING BRACKET	-	1	Enquire
0015	15970934	SCREW	15970934 SCREW	-	4	Enquire
0016	848335	RH REAR ROLL BAR BRACKET	848335 RH REAR ROLL BAR BRACKET	-	1	Enquire
0017	848332	REAR BRACKET FOR LH ROLL BAR	848332 REAR BRACKET FOR LH ROLL BAR	-	1	Enquire
0018	68984500	SCREW	68984500 SCREW M10 X 30 X 1.25	-	2	Enquire
0019	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20 M8 X 20	-	2	Enquire
0020	852276	RH ROLL BAR MOUNTING EXTRUSION	852276 RH ROLL BAR MOUNTING EXTRUSION	-	1	Enquire
0021	843913	LH ROLL BAR MOUNTING EXTRUSION	843913 LH ROLL BAR MOUNTING EXTRUSION	-	1	Enquire
0022	14308134	SCREW	14308134 SCREW	-	4	Enquire
0023	904672	SCREW	904672 SCREW M8 X 65	-	4	Enquire
0024	910700	WASHER	910700 WASHER	-	4	Enquire
0025	860490	REAR EXTRUDED MOUNT FOR RH ROLL BAR	860490 REAR EXTRUDED MOUNT FOR RH ROLL BAR	-	1	Enquire
0026	844199	REAR EXTRUDED MOUNT FOR LH ROLL BAR	844199 REAR EXTRUDED MOUNT FOR LH ROLL BAR	-	1	Enquire
0027	15971334	SCREW	15971334 SCREW M10 X 1.25 X 75	-	1	Enquire
0028	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	4	Enquire
