LUGGAGE COMPARTMENT MATS of Ferrari Ferrari Monza SPA2 Europe

View All

Ferrari Monza SPA2 Europe - LUGGAGE COMPARTMENT MATS

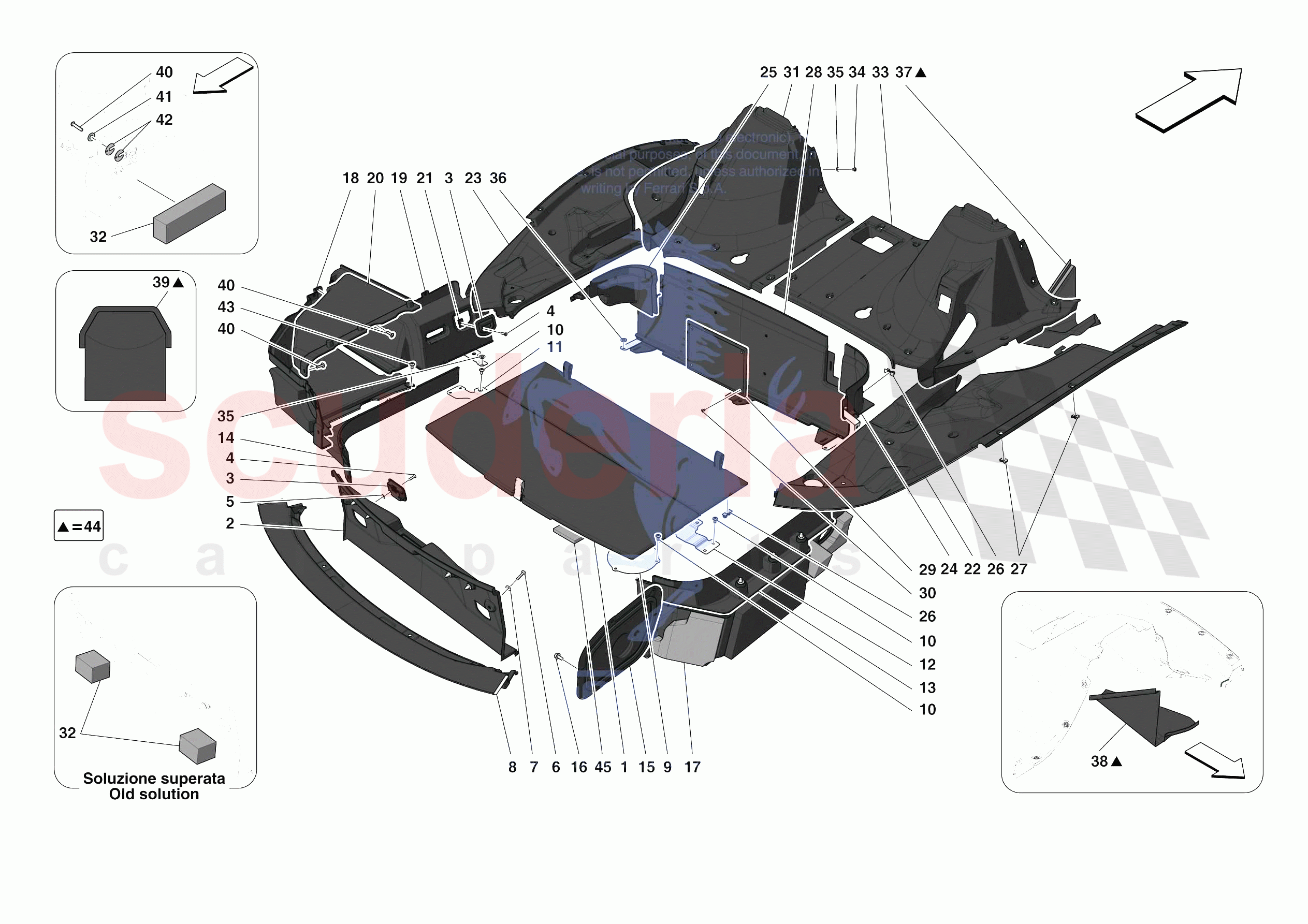

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	839362	COMPL. LOAD SURFACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838153	COMPL. SILL PROTECTOR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82541600	LUGGAGE RETAINER HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14440834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85617800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	968460	COMPL. CENTRE SHIELD	Enquire	To Order
	968460	COMPL. CENTRE SHIELD	Enquire	To Order
	968454	COMPL. CENTRE SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	272640	COMPL. LIFT SYSTEM INSPECTION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	854464	COMPL. LH LATERAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	854465	COMPL. RH LATERAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838905	COMPL. RH REAR CHANNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838837	COMPL. LH REAR CHANNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838932	COMPL. CANISTER COMPARTMENT CLOSURE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838914	COMPL. RH REAR LATERAL LUGGAGE COMPARTMENT TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838157	COMPL. LH REAR LATERAL LUGGAGE COMPARTMENT TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838846	COMPL. LH FRONT LATERAL LUGGAGE COMPARTMENT TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838831	COMPL. INSPECTION HATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	968464	COMPL. RH LATERAL SHIELD	Enquire	To Order
	968464	COMPL. RH LATERAL SHIELD	Enquire	To Order
	968462	COMPL. RH LATERAL SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	968468	COMPL. LH LATERAL SHIELD	Enquire	To Order
	968468	COMPL. LH LATERAL SHIELD	Enquire	To Order
	968476	COMPL. LH LATERAL SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	838890	COMPL. RH FRONT CHANNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838877	COMPL. LH FRONT CHANNEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	SNAP FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838886	COMPL. FRONT TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87731010	VEHICLE OPT. LIST HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903431	COMPL. LH ROLL BAR SHIELD	Enquire	To Order
	881593	COMPL. LH ROLL BAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892670	BUSH	Enquire	To Order
	922720	LATERAL SILL PROTECTOR PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903498	RH ROPS SHIELD	Enquire	To Order
	881600	RH ROPS SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	918910	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1002912	MEMBRANE KIT, TWO SEAT VERSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	927036	LID VIBRATION DAMPER SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	839362	COMPL. LOAD SURFACE	839362 COMPL. LOAD SURFACE	-	1	Enquire
0002	838153	COMPL. SILL PROTECTOR TRIM	838153 COMPL. SILL PROTECTOR TRIM	-	1	Enquire
0003	82541600	LUGGAGE RETAINER HOOK	82541600 LUGGAGE RETAINER HOOK	-	4	Enquire
0004	14440834	SCREW	14440834 SCREW M5 X 20	-	8	Enquire
0005	85617800	WASHER	85617800 WASHER	-	4	Enquire
0006	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 30	-	2	Enquire
0007	62769800	WASHER	62769800 WASHER	-	2	Enquire
0008	968460	COMPL. CENTRE SHIELD	968460 COMPL. CENTRE SHIELD	-	1	Enquire
0008	968460	COMPL. CENTRE SHIELD	968460 COMPL. CENTRE SHIELD	-	1	Enquire
0008	968454	COMPL. CENTRE SHIELD	968454 COMPL. CENTRE SHIELD Gloss carbon	-	1	Enquire
0008	968454	COMPL. CENTRE SHIELD	968454 COMPL. CENTRE SHIELD Gloss carbon	-	1	Enquire
0009	272640	COMPL. LIFT SYSTEM INSPECTION COVER	272640 COMPL. LIFT SYSTEM INSPECTION COVER	-	1	Enquire
0010	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0011	854464	COMPL. LH LATERAL BRACKET	854464 COMPL. LH LATERAL BRACKET	-	1	Enquire
0012	854465	COMPL. RH LATERAL BRACKET	854465 COMPL. RH LATERAL BRACKET	-	1	Enquire
0013	838905	COMPL. RH REAR CHANNEL TRIM	838905 COMPL. RH REAR CHANNEL TRIM	-	1	Enquire
0014	838837	COMPL. LH REAR CHANNEL TRIM	838837 COMPL. LH REAR CHANNEL TRIM	-	1	Enquire
0015	838932	COMPL. CANISTER COMPARTMENT CLOSURE PLATE	838932 COMPL. CANISTER COMPARTMENT CLOSURE PLATE	-	1	Enquire
0016	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	5	Enquire
0017	838914	COMPL. RH REAR LATERAL LUGGAGE COMPARTMENT TRIM PANEL	838914 COMPL. RH REAR LATERAL LUGGAGE COMPARTMENT TRIM PANEL	-	1	Enquire
0018	838157	COMPL. LH REAR LATERAL LUGGAGE COMPARTMENT TRIM PANEL	838157 COMPL. LH REAR LATERAL LUGGAGE COMPARTMENT TRIM PANEL	-	1	Enquire
0019	838846	COMPL. LH FRONT LATERAL LUGGAGE COMPARTMENT TRIM PANEL	838846 COMPL. LH FRONT LATERAL LUGGAGE COMPARTMENT TRIM PANEL	-	1	Enquire
0020	838831	COMPL. INSPECTION HATCH	838831 COMPL. INSPECTION HATCH	-	1	Enquire
0021	68700800	CLIP	68700800 CLIP	-	4	Enquire
0022	968464	COMPL. RH LATERAL SHIELD	968464 COMPL. RH LATERAL SHIELD	-	1	Enquire
0022	968464	COMPL. RH LATERAL SHIELD	968464 COMPL. RH LATERAL SHIELD	-	1	Enquire
0022	968462	COMPL. RH LATERAL SHIELD	968462 COMPL. RH LATERAL SHIELD Gloss carbon	-	1	Enquire
0022	968462	COMPL. RH LATERAL SHIELD	968462 COMPL. RH LATERAL SHIELD Gloss carbon	-	1	Enquire
0023	968468	COMPL. LH LATERAL SHIELD	968468 COMPL. LH LATERAL SHIELD	-	1	Enquire
0023	968468	COMPL. LH LATERAL SHIELD	968468 COMPL. LH LATERAL SHIELD	-	1	Enquire
0023	968476	COMPL. LH LATERAL SHIELD	968476 COMPL. LH LATERAL SHIELD Gloss carbon	-	1	Enquire
0023	968476	COMPL. LH LATERAL SHIELD	968476 COMPL. LH LATERAL SHIELD Gloss carbon	-	1	Enquire
0024	838890	COMPL. RH FRONT CHANNEL TRIM	838890 COMPL. RH FRONT CHANNEL TRIM	-	1	Enquire
0025	838877	COMPL. LH FRONT CHANNEL TRIM	838877 COMPL. LH FRONT CHANNEL TRIM	-	1	Enquire
0026	68700200	SNAP FASTENING CLIP	68700200 SNAP FASTENING CLIP	-	7	Enquire
0027	68700800	CLIP	68700800 CLIP	-	8	Enquire
0028	838886	COMPL. FRONT TRIM	838886 COMPL. FRONT TRIM	-	1	Enquire
0029	87731010	VEHICLE OPT. LIST HOLDER	87731010 VEHICLE OPT. LIST HOLDER Available in Italian or English, in relation to the country	-	1	Enquire
0030	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 6	-	4	Enquire
0031	903431	COMPL. LH ROLL BAR SHIELD	903431 COMPL. LH ROLL BAR SHIELD	-	1	Enquire
0031	881593	COMPL. LH ROLL BAR SHIELD	881593 COMPL. LH ROLL BAR SHIELD Gloss carbon	-	1	Enquire
0032	892670	BUSH	892670 BUSH Applies until depletion	-	2	Enquire
0032	922720	LATERAL SILL PROTECTOR PULER	922720 LATERAL SILL PROTECTOR PULER Applicable after depletion of 892670	-	1	Enquire
0033	903498	RH ROPS SHIELD	903498 RH ROPS SHIELD	-	1	Enquire
0033	881600	RH ROPS SHIELD	881600 RH ROPS SHIELD Gloss carbon	-	1	Enquire
0034	85833700	SCREW	85833700 SCREW M5 X 10	-	43	Enquire
0034	85833700	SCREW	85833700 SCREW M5 X 12	-	41	Enquire
0034	85833700	SCREW	85833700 SCREW M5 X 14	-	2	Enquire
0035	62769800	WASHER	62769800 WASHER	-	43	Enquire
0035	62769800	WASHER	62769800 WASHER	-	39	Enquire
0036	12643724	WASHER	12643724 WASHER D. 5 - 20 X 1.5	-	2	Enquire
0040	85833700	SCREW	85833700 SCREW M5 X 12	-	3	Enquire
0040	81591700	SCREW	81591700 SCREW M5 X 20	-	3	Enquire
0041	62769800	WASHER	62769800 WASHER	-	4	Enquire
0041	12643724	WASHER	12643724 WASHER D. 5 - 20 X 1.5	-	4	Enquire
0042	918910	WASHER	918910 WASHER	-	4	Enquire
0043	85833700	SCREW	85833700 SCREW M5 X 12	-	4	Enquire
0043	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0044	1002912	MEMBRANE KIT, TWO SEAT VERSION	1002912 MEMBRANE KIT, TWO SEAT VERSION Consisting of ref. 940245, 923987 and 940253 tab.147, ref. 953876 and 953937 tab. 148, ref. 940179 tab. 149 and ref. 959099 tab. 157	-	1	Enquire
0045	927036	LID VIBRATION DAMPER SEAL	927036 LID VIBRATION DAMPER SEAL	-	1	Enquire
