Name: LATERAL OUTER BODYSHELL
Rating: 5.0 (1 reviews)

View All

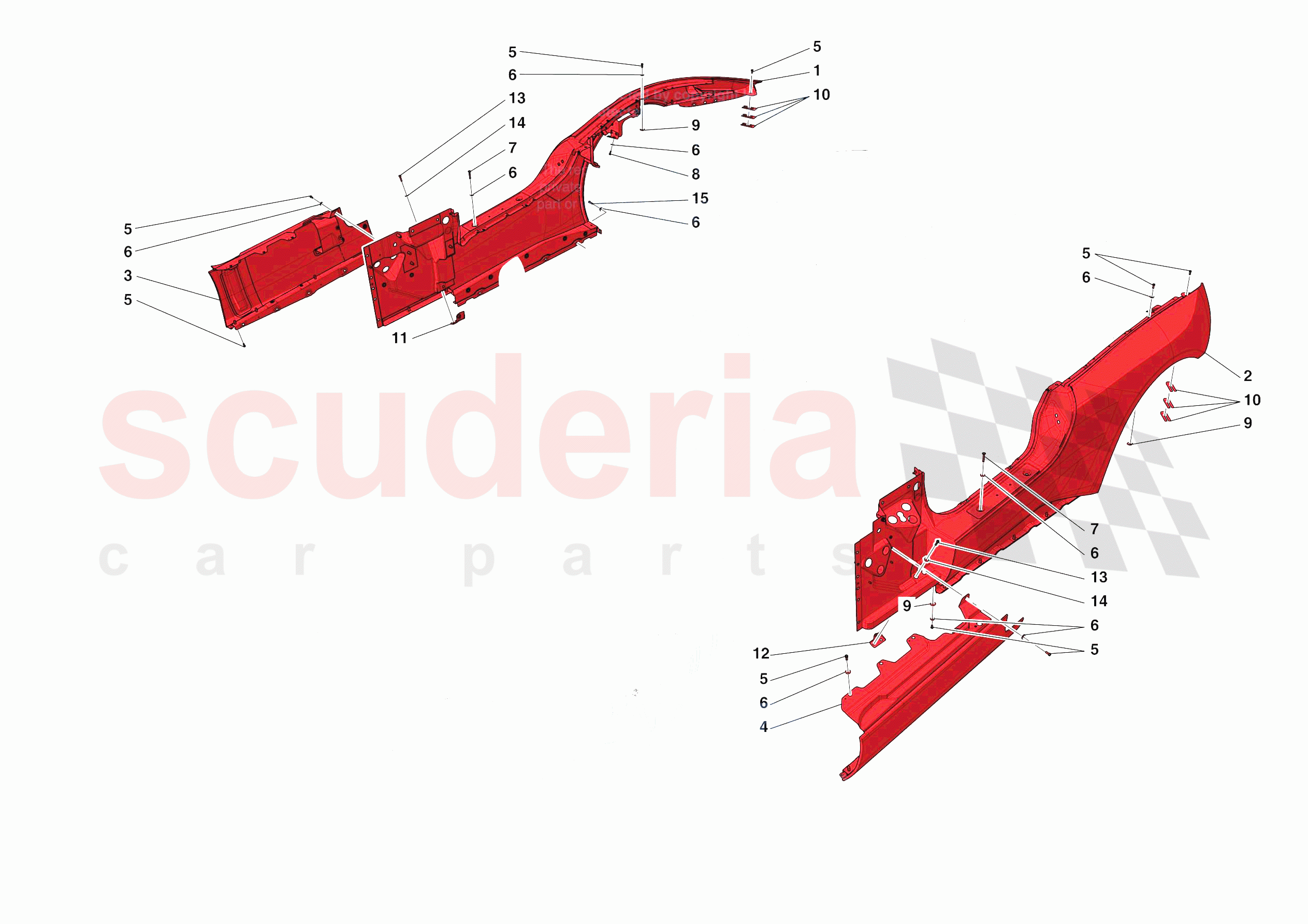

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985880903	COMPL. RH REAR FLANK	$22,480.89	To Order

Photo	Part No	Description	Price (each)	Stock
	985880897	COMPL. LH REAR FLANK	$19,847.63	To Order

Photo	Part No	Description	Price (each)	Stock
	881623	COMPL. RH FRONT FENDER	$5,652.00	To Order

Photo	Part No	Description	Price (each)	Stock
	881621	COMPL. LH FRONT FENDER	$5,652.00	To Order

Photo	Part No	Description	Price (each)	Stock
	13027087	SCREW	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	85679100	SCREW	$8.02	To Order

Photo	Part No	Description	Price (each)	Stock
	917338	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	87583800	ADJUSTMENT SHIM	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	85471300	LID HINGE ADJUSTER SHIM	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	865377	COMPL. RH DOOR SWING STOP MOUNTING BRACKET	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	865333	COMPL. LH DOOR SWING STOP MOUNTING BRACKET	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	14305428	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14305524	SCREW	$0.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985880903	COMPL. RH REAR FLANK	985880903 COMPL. RH REAR FLANK	$22,480.89	1
0002	985880897	COMPL. LH REAR FLANK	985880897 COMPL. LH REAR FLANK	$19,847.63	1
0003	881623	COMPL. RH FRONT FENDER	881623 COMPL. RH FRONT FENDER Request ASM authorisation	$5,652.00	1
0004	881621	COMPL. LH FRONT FENDER	881621 COMPL. LH FRONT FENDER Request ASM authorisation	$5,652.00	1
0005	13027087	SCREW	13027087 SCREW M6 X 16	$0.60	48
0006	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5 18 X 1.5	$0.28 MSRP: ~~0.50~~ (44% off)	70
0007	85679100	SCREW	85679100 SCREW M6 X 40	$8.02	8
0008	917338	SCREW	917338 SCREW M5 X 16	$0.71	4
0009	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM	$1.85	16
0010	85471300	LID HINGE ADJUSTER SHIM	85471300 LID HINGE ADJUSTER SHIM	$28.66	36
0011	865377	COMPL. RH DOOR SWING STOP MOUNTING BRACKET	865377 COMPL. RH DOOR SWING STOP MOUNTING BRACKET	$34.38	1
0012	865333	COMPL. LH DOOR SWING STOP MOUNTING BRACKET	865333 COMPL. LH DOOR SWING STOP MOUNTING BRACKET	$34.38	1
0013	14305428	SCREW	14305428 SCREW M6 X 25	$0.42	4
0014	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
0015	14305524	SCREW	14305524 SCREW M6 X 30	$0.15	8
