FRONT AND REAR BRAKE CALIPERS of Ferrari Ferrari LaFerrari Aperta

View All

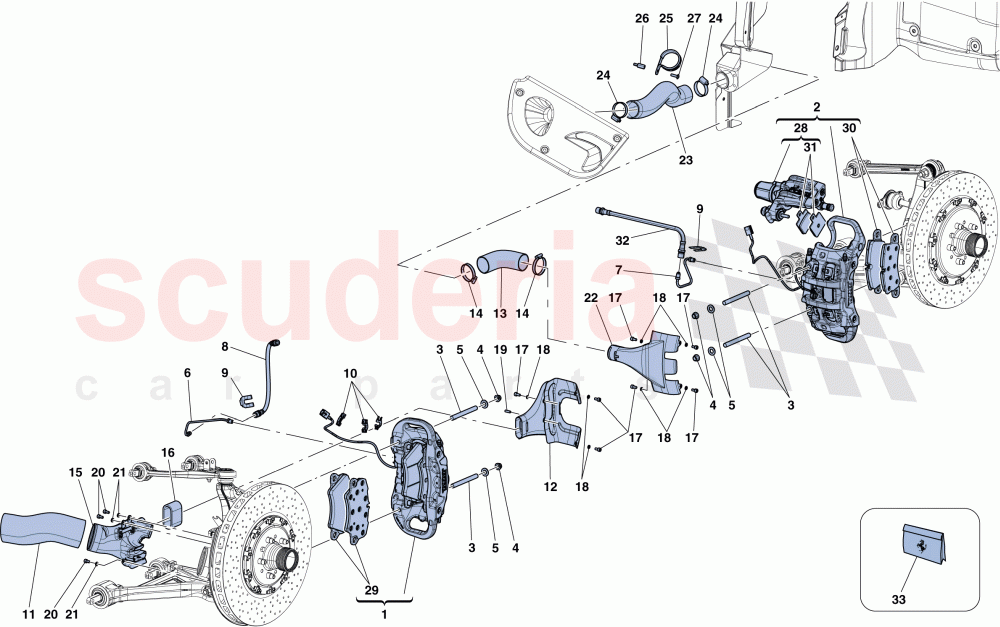

Ferrari LaFerrari Aperta - FRONT AND REAR BRAKE CALIPERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306262	FRONT RH CALLIPER WITH PADS	Enquire	To Order
	306261	FRONT LH CALLIPER WITH PADS	Enquire	To Order
	306284	FRONT RH CALLIPER WITH PADS	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	314872	REAR RH CALLIPER WITH PADS	Enquire	To Order
	314871	REAR LH CALLIPER WITH PADS	Enquire	To Order
	314888	REAR RH CALLIPER WITH PADS	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	291920	CALIPER FASTENER STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183243	CALIPER FASTENER NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291921	CALIPER FASTENER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292474	FRONT BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order
	292473	FRONT BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299555	REAR BRAKE PIPE FROM CALIPER TO RH HOSE	Enquire	To Order
	299553	REAR BRAKE PIPE FROM CALIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	977797	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251744	TRIPLE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288136	FRONT AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306005	RH FRONT CALLIPER HOUSING COVER	Enquire	To Order
	306004	LH FRONT CALLIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281349	COILED AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	306210	AIR OUTLET ON RH HUB CARRIER	Enquire	To Order
	306209	AIR OUTLET ON LH HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290912	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11499924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296545	REAR CALLIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85577100	REAR RH BRAKE COOLING PIPE	Enquire	To Order
	85576600	REAR LH BRAKE COOLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	287686	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212519	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289315	COMPL. RH PARKING BRAKE CALIPER	Enquire	To Order
	289314	COMPL. LH PARKING BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003189	FRONT PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003656	SET OF REAR PADS	Enquire	To Order
	70003190	REAR PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003667	SET OF EPB PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003493	DUST GAITER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	306262	FRONT RH CALLIPER WITH PADS	306262 FRONT RH CALLIPER WITH PADS Anodised black	-	1	Enquire
1	306261	FRONT LH CALLIPER WITH PADS	306261 FRONT LH CALLIPER WITH PADS Anodised black	-	1	Enquire
1	306284	FRONT RH CALLIPER WITH PADS	306284 FRONT RH CALLIPER WITH PADS Yellow	-	1	Enquire
1	306283	FRONT LH CALLIPER WITH PADS	306283 FRONT LH CALLIPER WITH PADS Yellow	-	1	Enquire
1	306282	FRONT RH CALLIPER WITH PADS	306282 FRONT RH CALLIPER WITH PADS Corsa red	-	1	Enquire
1	306281	FRONT LH CALLIPER WITH PADS	306281 FRONT LH CALLIPER WITH PADS Corsa red	-	1	Enquire
1	306280	FRONT RH CALLIPER WITH PADS	306280 FRONT RH CALLIPER WITH PADS Aluminium	-	1	Enquire
1	306279	FRONT LH CALLIPER WITH PADS	306279 FRONT LH CALLIPER WITH PADS Aluminium	-	1	Enquire
1	306278	FRONT RH CALLIPER WITH PADS	306278 FRONT RH CALLIPER WITH PADS Silverstone grey	-	1	Enquire
1	306277	FRONT LH CALLIPER WITH PADS	306277 FRONT LH CALLIPER WITH PADS Silverstone grey	-	1	Enquire
1	306275	FRONT RH CALLIPER WITH PADS	306275 FRONT RH CALLIPER WITH PADS Blue	-	1	Enquire
1	306274	FRONT LH CALLIPER WITH PADS	306274 FRONT LH CALLIPER WITH PADS Blue	-	1	Enquire
1	306273	FRONT RH CALLIPER WITH PADS	306273 FRONT RH CALLIPER WITH PADS Gold	-	1	Enquire
1	306272	FRONT LH CALLIPER WITH PADS	306272 FRONT LH CALLIPER WITH PADS Gold	-	1	Enquire
1	306271	FRONT RH CALLIPER WITH PADS	306271 FRONT RH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	306267	FRONT LH CALLIPER WITH PADS	306267 FRONT LH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	306266	FRONT RH CALLIPER WITH PADS	306266 FRONT RH CALLIPER WITH PADS Gloss black	-	1	Enquire
1	306264	FRONT LH CALLIPER WITH PADS	306264 FRONT LH CALLIPER WITH PADS Gloss black	-	1	Enquire
2	314872	REAR RH CALLIPER WITH PADS	314872 REAR RH CALLIPER WITH PADS Anodised black	-	1	Enquire
2	314871	REAR LH CALLIPER WITH PADS	314871 REAR LH CALLIPER WITH PADS Anodised black	-	1	Enquire
2	314888	REAR RH CALLIPER WITH PADS	314888 REAR RH CALLIPER WITH PADS Yellow	-	1	Enquire
2	314887	REAR LH CALLIPER WITH PADS	314887 REAR LH CALLIPER WITH PADS Yellow	-	1	Enquire
2	314886	REAR RH CALLIPER WITH PADS	314886 REAR RH CALLIPER WITH PADS Corsa red	-	1	Enquire
2	314885	REAR LH CALLIPER WITH PADS	314885 REAR LH CALLIPER WITH PADS Corsa red	-	1	Enquire
2	314884	REAR RH CALLIPER WITH PADS	314884 REAR RH CALLIPER WITH PADS Aluminium	-	1	Enquire
2	314883	REAR LH CALLIPER WITH PADS	314883 REAR LH CALLIPER WITH PADS Aluminium	-	1	Enquire
2	314882	REAR RH CALLIPER WITH PADS	314882 REAR RH CALLIPER WITH PADS Silverstone grey	-	1	Enquire
2	314881	REAR LH CALLIPER WITH PADS	314881 REAR LH CALLIPER WITH PADS Silverstone grey	-	1	Enquire
2	314880	REAR RH CALLIPER WITH PADS	314880 REAR RH CALLIPER WITH PADS Blue	-	1	Enquire
2	314879	REAR LH CALLIPER WITH PADS	314879 REAR LH CALLIPER WITH PADS Blue	-	1	Enquire
2	314878	REAR RH CALLIPER WITH PADS	314878 REAR RH CALLIPER WITH PADS Gold	-	1	Enquire
2	314877	REAR LH CALLIPER WITH PADS	314877 REAR LH CALLIPER WITH PADS Gold	-	1	Enquire
2	314876	REAR RH CALLIPER WITH PADS	314876 REAR RH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
2	314875	REAR LH CALLIPER WITH PADS	314875 REAR LH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
2	314874	REAR RH CALLIPER WITH PADS	314874 REAR RH CALLIPER WITH PADS Gloss black	-	1	Enquire
2	314873	REAR LH CALLIPER WITH PADS	314873 REAR LH CALLIPER WITH PADS Gloss black	-	1	Enquire
3	291920	CALIPER FASTENER STUD	291920 CALIPER FASTENER STUD No longer supplied	-	8	Enquire
4	183243	CALIPER FASTENER NUT	183243 CALIPER FASTENER NUT	-	8	Enquire
5	291921	CALIPER FASTENER WASHER	291921 CALIPER FASTENER WASHER	-	8	Enquire
6	292474	FRONT BRAKE PIPE FROM CALLIPER TO RH HOSE	292474 FRONT BRAKE PIPE FROM CALLIPER TO RH HOSE	-	1	Enquire
6	292473	FRONT BRAKE PIPE FROM CALLIPER TO LH HOSE	292473 FRONT BRAKE PIPE FROM CALLIPER TO LH HOSE	-	1	Enquire
7	299555	REAR BRAKE PIPE FROM CALIPER TO RH HOSE	299555 REAR BRAKE PIPE FROM CALIPER TO RH HOSE	-	1	Enquire
7	299553	REAR BRAKE PIPE FROM CALIPER TO LH HOSE	299553 REAR BRAKE PIPE FROM CALIPER TO LH HOSE	-	1	Enquire
8	977797	HOSE	977797 HOSE	-	2	Enquire
9	116374	CLIP	116374 CLIP	-	8	Enquire
10	251744	TRIPLE CLIP	251744 TRIPLE CLIP	-	6	Enquire
11	288136	FRONT AIR DELIVERY PIPE	288136 FRONT AIR DELIVERY PIPE	-	2	Enquire
12	306005	RH FRONT CALLIPER HOUSING COVER	306005 RH FRONT CALLIPER HOUSING COVER	-	1	Enquire
12	306004	LH FRONT CALLIPER HOUSING COVER	306004 LH FRONT CALLIPER HOUSING COVER	-	1	Enquire
13	281349	COILED AIR DELIVERY PIPE	281349 COILED AIR DELIVERY PIPE	-	2	Enquire
14	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
15	306210	AIR OUTLET ON RH HUB CARRIER	306210 AIR OUTLET ON RH HUB CARRIER	-	1	Enquire
15	306209	AIR OUTLET ON LH HUB CARRIER	306209 AIR OUTLET ON LH HUB CARRIER	-	1	Enquire
16	290912	HOSE	290912 HOSE	-	2	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	14	Enquire
18	13550224	WASHER	13550224 WASHER	-	14	Enquire
19	11499924	STUD BOLT	11499924 STUD BOLT	-	2	Enquire
20	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	8	Enquire
21	12643724	WASHER	12643724 WASHER	-	8	Enquire
22	296545	REAR CALLIPER HOUSING COVER	296545 REAR CALLIPER HOUSING COVER	-	2	Enquire
23	85577100	REAR RH BRAKE COOLING PIPE	85577100 REAR RH BRAKE COOLING PIPE	-	1	Enquire
23	85576600	REAR LH BRAKE COOLING PIPE	85576600 REAR LH BRAKE COOLING PIPE	-	1	Enquire
24	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
25	287686	BRACKET WITH SHEATH	287686 BRACKET WITH SHEATH	-	3	Enquire
26	212519	STUD BOLT	212519 STUD BOLT	-	1	Enquire
27	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20	-	3	Enquire
28	289315	COMPL. RH PARKING BRAKE CALIPER	289315 COMPL. RH PARKING BRAKE CALIPER No longer supplied	-	1	Enquire
28	289314	COMPL. LH PARKING BRAKE CALIPER	289314 COMPL. LH PARKING BRAKE CALIPER No longer supplied	-	1	Enquire
29	70003189	FRONT PAD SET WITH SPRING	70003189 FRONT PAD SET WITH SPRING	-	1	Enquire
30	70003656	SET OF REAR PADS	70003656 SET OF REAR PADS Applicable for track usage only	-	1	Enquire
30	70003190	REAR PAD SET WITH SPRING	70003190 REAR PAD SET WITH SPRING	-	1	Enquire
31	70003667	SET OF EPB PADS	70003667 SET OF EPB PADS Applicable from Ass. No. 125019	-	1	Enquire
32	271771	PIPE	271771 PIPE	-	2	Enquire
33	70003493	DUST GAITER KIT	70003493 DUST GAITER KIT	-	1	Enquire
