REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Find Your Part

Ferrari LaFerrari Aperta - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
306950 REAR SHOCK ABSORBER $7,641.08 To Order
Photo Part No Description Price (each) Stock
283925 REAR SUSPENSION SPRING $3,509.24 To Order
Photo Part No Description Price (each) Stock
250394 STOP CAP SHOCK ABSORBER $272.77 To Order
Photo Part No Description Price (each) Stock
281221 ENDSTOP BUSH, SHOCK ABSORBER $40.10 To Order
Photo Part No Description Price (each) Stock
917866 UPPER SPRING SPACER $60.96 To Order
Photo Part No Description Price (each) Stock
293648 LOWER SPRING SPACER $7.73 To Order
Photo Part No Description Price (each) Stock
248790 SCREW $4.04 To Order
Photo Part No Description Price (each) Stock
298378 REAR BRAKE DISC $5,124.71 To Order
Photo Part No Description Price (each) Stock
228131 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
228132 SPRING WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
257424 RH REAR DISC SHIELD $62.56 To Order
257423 LH REAR DISC SHIELD $62.56 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
283024 RH AXLE SHAFT HEAT SHIELD $320.90 To Order
283026 LH AXLE SHAFT HEAT SHIELD $320.90 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.47 To Order
Photo Part No Description Price (each) Stock
237821 BUSH $4.86 To Order
Photo Part No Description Price (each) Stock
246962 SPECIAL SCREW $31.36 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
255271 NUT $1.41 To Order
Photo Part No Description Price (each) Stock
14507987 PLUG $1.83 To Order
Photo Part No Description Price (each) Stock
302242 AXLE SHAFT $4,691.83 To Order
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $118.72 ARRIVING SOON
Photo Part No Description Price (each) Stock
220325 PLATE $4.04 To Order
Photo Part No Description Price (each) Stock
237590 SCREW M10 X 1.25 X 50 $4.86 To Order
Photo Part No Description Price (each) Stock
266664 NUT $32.32 To Order
Photo Part No Description Price (each) Stock
266686 WASHER $21.54 To Order
Photo Part No Description Price (each) Stock
283935 RH REAR JOINT BRACKET $74.52 To Order
283934 LH REAR JOINT BRACKET $74.52 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
302653 COMPL. TITANIUM REAR STABILISER BAR $4,991.89 To Order
Photo Part No Description Price (each) Stock
302871 PLUG $20.05 To Order
Photo Part No Description Price (each) Stock
305873 PLATE $25.79 To Order
Photo Part No Description Price (each) Stock
299889 TITANIUM SCREW $85.03 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10791014 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
301698 RH BALL-JOINT TIE-ROD $286.67 To Order
301697 LH BALL-JOINT TIE-ROD $286.67 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
304440 STUD BOLT $304.86 To Order
View All

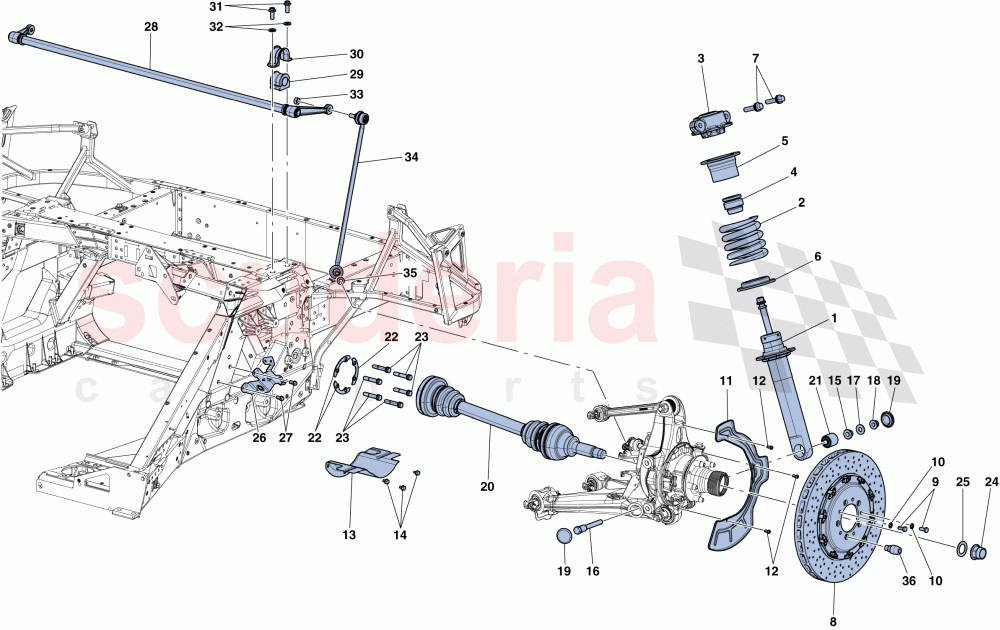

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 306950
REAR SHOCK ABSORBER 		$7,641.08 2
2 283925
REAR SUSPENSION SPRING 		$3,509.24 2
3 250394
STOP CAP SHOCK ABSORBER 		$272.77 2
4 281221
ENDSTOP BUSH, SHOCK ABSORBER 		$40.10 2
5 917866
UPPER SPRING SPACER 		$60.96 2
6 293648
LOWER SPRING SPACER 		$7.73 2
7 248790
SCREW 		$4.04 4
8 298378
REAR BRAKE DISC
380 x 34 mm 		$5,124.71 2
9 228131
SCREW 		$0.83 4
10 228132
SPRING WASHER 		$0.32 4
11 257424
RH REAR DISC SHIELD 		$62.56 1
11 257423
LH REAR DISC SHIELD 		$62.56 (24.1% off) 1
12 250657
SCREW 		$7.60 6
13 283024
RH AXLE SHAFT HEAT SHIELD 		$320.90 1
13 283026
LH AXLE SHAFT HEAT SHIELD 		$320.90 1
14 16296934
SCREW 6 X 14MM
M6 X 10 		$0.47 6
15 237821
BUSH 		$4.86 (11.6% off) 2
16 246962
SPECIAL SCREW 		$31.36 2
17 12646921
WASHER 		$0.53 2
18 255271
NUT 		$1.41 (2.8% off) 2
19 14507987
PLUG 		$1.83 (25.3% off) 4
20 302242
AXLE SHAFT 		$4,691.83 2
21 157630
SHOCK ABSORBER BUSH
ARRIVING SOON 		$118.72 (22% off) 2
22 220325
PLATE 		$4.04 6
23 237590
SCREW M10 X 1.25 X 50 		$4.86 (2.6% off) 12
24 266664
NUT 		$32.32 (2.7% off) 2
25 266686
WASHER 		$21.54 2
26 283935
RH REAR JOINT BRACKET 		$74.52 1
26 283934
LH REAR JOINT BRACKET 		$74.52 1
27 86574700
SCREW 		$0.71 4
28 302653
COMPL. TITANIUM REAR STABILISER BAR 		$4,991.89 1
29 302871
PLUG 		$20.05 2
30 305873
PLATE 		$25.79 2
31 299889
TITANIUM SCREW 		$85.03 4
32 11190574
WASHER 		$0.06 4
33 10791014
NUT 		$0.29 2
34 301698
RH BALL-JOINT TIE-ROD 		$286.67 1
34 301697
LH BALL-JOINT TIE-ROD 		$286.67 1
35 12601474
WASHER 		$0.03 2
36 304440
STUD BOLT 		$304.86 10
