POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari LaFerrari Aperta

View All

Ferrari LaFerrari Aperta - POWER STEERING PUMP AND RESERVOIR

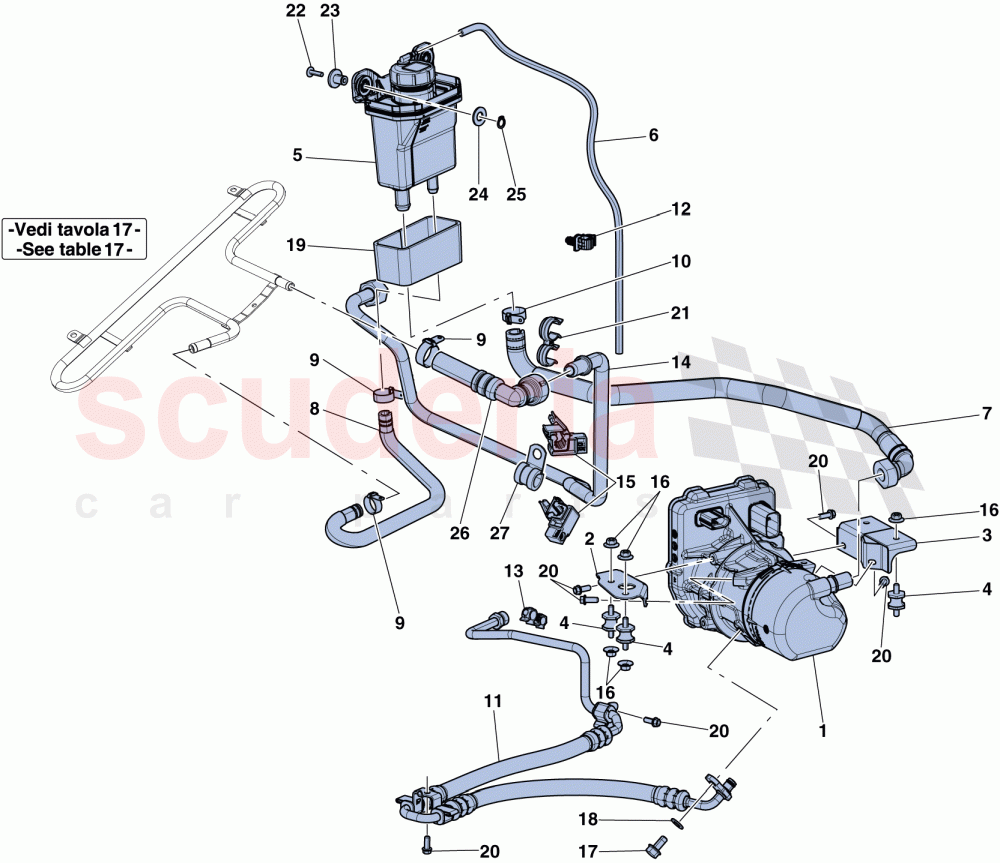

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	309203	POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288801	FRONT POWER STEERING PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295350	REAR POWER STEERING PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284347	POWER STEERING PUMP DAMPER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292342	COMPL. POWER STEERING FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330662	PIPE FROM RESERVOIR TO POWER STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327446	PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262108	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327255	PIPE FROM PUMP TO FIREWALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204777	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327445	PIPE FROM FIREWALL TO COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81649400	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16297924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303090	FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302574	ERGAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82329900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303591	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303594	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11065976	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330953	RUBBER PIPE FROM COIL QUICK CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450290	BRACKET WITH SHEATH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	309203	POWER STEERING PUMP	309203 POWER STEERING PUMP	-	1	Enquire
2	288801	FRONT POWER STEERING PUMP BRACKET	288801 FRONT POWER STEERING PUMP BRACKET	-	1	Enquire
3	295350	REAR POWER STEERING PUMP BRACKET	295350 REAR POWER STEERING PUMP BRACKET	-	1	Enquire
4	284347	POWER STEERING PUMP DAMPER MOUNT	284347 POWER STEERING PUMP DAMPER MOUNT	-	4	Enquire
5	292342	COMPL. POWER STEERING FLUID RESERVOIR	292342 COMPL. POWER STEERING FLUID RESERVOIR	-	1	Enquire
6	122126	RUBBER PIPE	122126 RUBBER PIPE	-	1	Enquire
7	330662	PIPE FROM RESERVOIR TO POWER STEERING PUMP	330662 PIPE FROM RESERVOIR TO POWER STEERING PUMP	-	1	Enquire
8	327446	PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR	327446 PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR	-	1	Enquire
9	262108	SCREW COLLAR	262108 SCREW COLLAR	-	3	Enquire
10	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
11	327255	PIPE FROM PUMP TO FIREWALL	327255 PIPE FROM PUMP TO FIREWALL	-	1	Enquire
12	250318	SNAP CLIP	250318 SNAP CLIP	-	1	Enquire
13	204777	CLIP	204777 CLIP	-	1	Enquire
14	327445	PIPE FROM FIREWALL TO COIL	327445 PIPE FROM FIREWALL TO COIL	-	1	Enquire
15	81649400	CLIP	81649400 CLIP	-	2	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
17	16297924	SCREW	16297924 SCREW	-	1	Enquire
18	14496524	WASHER	14496524 WASHER	-	1	Enquire
19	303090	FOAM	303090 FOAM	-	1	Enquire
20	302574	ERGAL SCREW	302574 ERGAL SCREW M6 X 15	-	6	Enquire
21	82329900	CLIP	82329900 CLIP	-	1	Enquire
22	85833700	SCREW	85833700 SCREW M5 X 14	-	2	Enquire
23	303591	SEEGER RING	303591 SEEGER RING	-	2	Enquire
24	303594	SEAL RING	303594 SEAL RING	-	2	Enquire
25	11065976	SEEGER RING	11065976 SEEGER RING	-	2	Enquire
26	330953	RUBBER PIPE FROM COIL QUICK CONNECTOR	330953 RUBBER PIPE FROM COIL QUICK CONNECTOR	-	1	Enquire
27	10450290	BRACKET WITH SHEATH	10450290 BRACKET WITH SHEATH	-	1	Enquire
