INJECTION - IGNITION SYSTEM of Ferrari Ferrari LaFerrari Aperta

View All

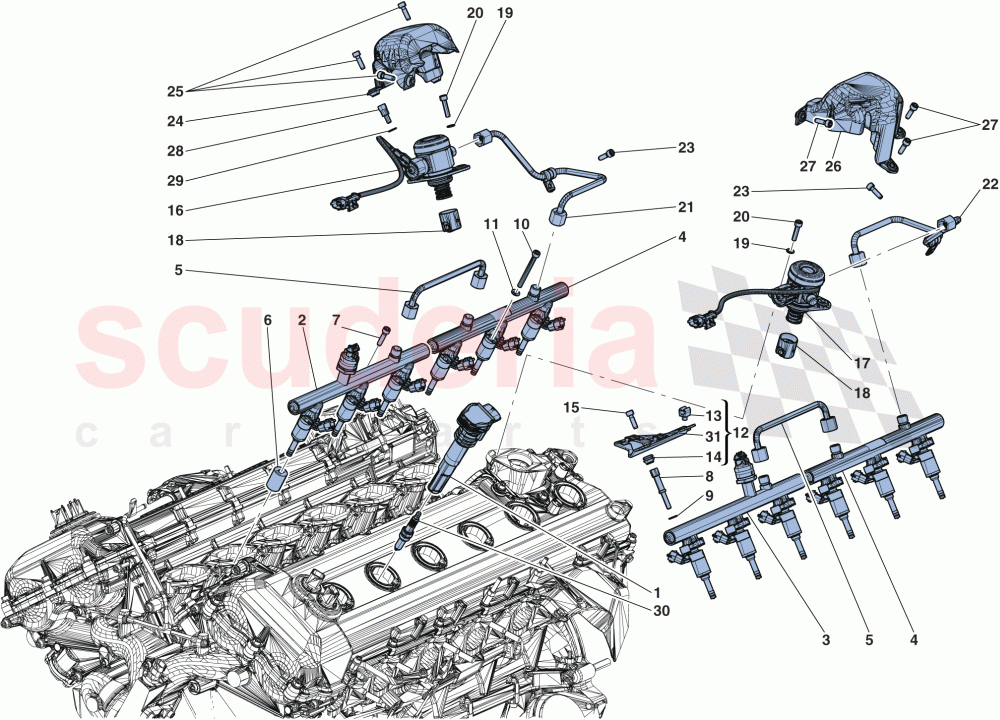

Ferrari LaFerrari Aperta - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	268691	COMPL. FRONT RH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268692	COMPL. FRONT LH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268693	COMPL. REAR FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247918	FUEL PIPE CONNECTING FRONT AND REAR RAILS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255724	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260965	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284961	MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248674	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284909	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259334	RH FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259335	LH FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305428	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327854	RH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254516	LH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301848	RH PUMP SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301849	LH PUMP SOUNDPROOFING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287940	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297423	SPARK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284961	MOUNTING BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	268691	COMPL. FRONT RH FUEL PIPE	268691 COMPL. FRONT RH FUEL PIPE Also order pipe ref. 5	-	1	Enquire
3	268692	COMPL. FRONT LH FUEL PIPE	268692 COMPL. FRONT LH FUEL PIPE Also order pipe ref. 5	-	1	Enquire
4	268693	COMPL. REAR FUEL PIPE	268693 COMPL. REAR FUEL PIPE Also order pipe ref. 5 and pipe ref. 21 for RH cylinder bank or ref. 22 for LH cylinder bank	-	2	Enquire
5	247918	FUEL PIPE CONNECTING FRONT AND REAR RAILS	247918 FUEL PIPE CONNECTING FRONT AND REAR RAILS	-	2	Enquire
6	255724	SHIM	255724 SHIM	-	12	Enquire
7	231620	SCREW	231620 SCREW M6 X 25	-	10	Enquire
8	260965	STUD BOLT	260965 STUD BOLT M6 X 23	-	2	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
10	14303834	SCREW	14303834 SCREW	-	12	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	12	Enquire
12	284961	MOUNTING BRACKET	284961 MOUNTING BRACKET	-	1	Enquire
13	248674	CLIP	248674 CLIP	-	1	Enquire
14	284909	BUSHING	284909 BUSHING	-	2	Enquire
15	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	2	Enquire
16	259334	RH FUEL PUMP	259334 RH FUEL PUMP	-	1	Enquire
17	259335	LH FUEL PUMP	259335 LH FUEL PUMP	-	1	Enquire
18	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	-	2	Enquire
19	12639724	WASHER	12639724 WASHER	-	4	Enquire
20	14305428	SCREW	14305428 SCREW	-	4	Enquire
21	327854	RH FUEL PIPE	327854 RH FUEL PIPE	-	1	Enquire
22	254516	LH FUEL PIPE	254516 LH FUEL PIPE	-	1	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
24	301848	RH PUMP SOUNDPROOFING COVER	301848 RH PUMP SOUNDPROOFING COVER	-	1	Enquire
25	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	3	Enquire
26	301849	LH PUMP SOUNDPROOFING COVER	301849 LH PUMP SOUNDPROOFING COVER	-	1	Enquire
27	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	3	Enquire
28	287940	STUD BOLT	287940 STUD BOLT	-	1	Enquire
29	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
30	297423	SPARK PLUG	297423 SPARK PLUG	-	12	Enquire
31	284961	MOUNTING BRACKET	284961 MOUNTING BRACKET After depletion, order compl.; Applicable until depletion	-	1	Enquire
