Find Your Part

FRONT SUSPENSION - ARMS of Ferrari Ferrari LaFerrari Aperta

View All

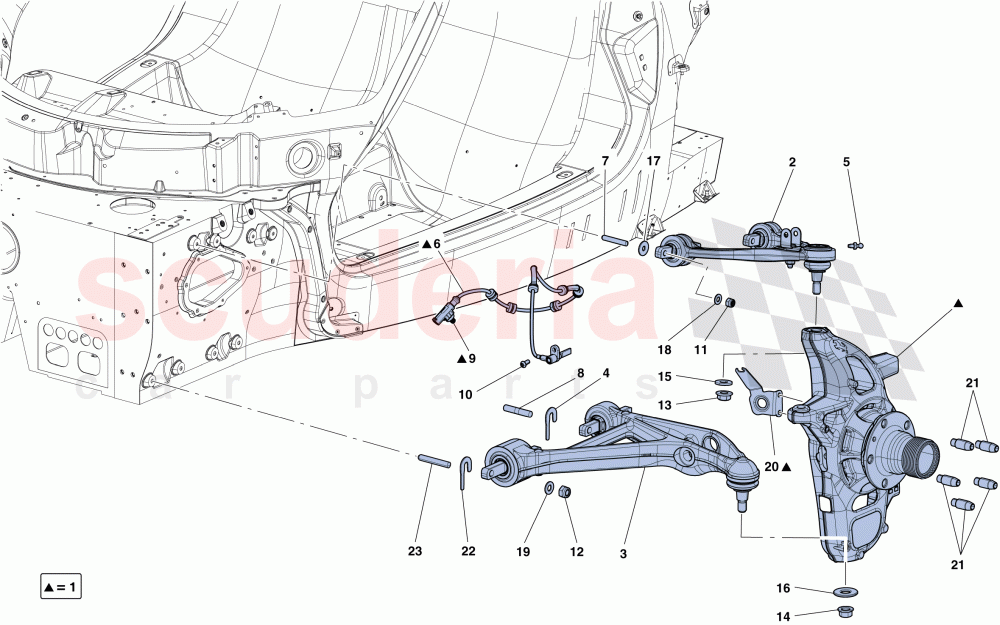

Ferrari LaFerrari Aperta - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	291934	FRONT RH HUB CARRIER	Enquire	To Order
	291933	FRONT LH HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297987	COMPL. UPPER RH FRONT ARM	Enquire	To Order
	297986	COMPL. UPPER LH FRONT ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308586	COMPL. LOWER RH FRONT ARM	Enquire	To Order
	308585	COMPL. LOWER LH FRONT ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238693	ADJUSTMENT SHIM	Enquire	To Order
	262544	ADJUSTER SHIM	Enquire	To Order
	238885	CAMBER SPACER 4MM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269415	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543734	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546634	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292421	FRONT RH JOINT BRACKET	Enquire	To Order
	292420	FRONT LH JOINT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274997	WHEEL DRIVE STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305461	ADJUSTMENT SHIM	Enquire	To Order
	305460	ADJUSTMENT SHIM	Enquire	To Order
	305459	ADJUSTMENT SHIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	291934	FRONT RH HUB CARRIER	291934 FRONT RH HUB CARRIER	-	1	Enquire
1	291933	FRONT LH HUB CARRIER	291933 FRONT LH HUB CARRIER	-	1	Enquire
2	297987	COMPL. UPPER RH FRONT ARM	297987 COMPL. UPPER RH FRONT ARM	-	1	Enquire
2	297986	COMPL. UPPER LH FRONT ARM	297986 COMPL. UPPER LH FRONT ARM	-	1	Enquire
3	308586	COMPL. LOWER RH FRONT ARM	308586 COMPL. LOWER RH FRONT ARM	-	1	Enquire
3	308585	COMPL. LOWER LH FRONT ARM	308585 COMPL. LOWER LH FRONT ARM	-	1	Enquire
4	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
4	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Th. 0.5 mm	-	4	Enquire
4	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm	-	4	Enquire
4	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm	-	4	Enquire
4	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm	-	4	Enquire
4	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm	-	4	Enquire
4	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm	-	4	Enquire
4	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm	-	4	Enquire
5	343376	BALL JOINT	343376 BALL JOINT	-	2	Enquire
6	269415	ABS SENSOR	269415 ABS SENSOR	-	2	Enquire
7	13543734	STUD BOLT	13543734 STUD BOLT	-	8	Enquire
8	13546634	STUD BOLT	13546634 STUD BOLT	-	4	Enquire
9	303385	CLIP	303385 CLIP	-	2	Enquire
10	229324	SCREW	229324 SCREW	-	2	Enquire
11	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
12	12574521	Nyloc Nut	12574521 Nyloc Nut	-	8	Enquire
13	149807	NUT	149807 NUT	-	2	Enquire
14	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
15	12646921	WASHER	12646921 WASHER	-	2	Enquire
16	241689	WASHER	241689 WASHER	-	2	Enquire
17	13578321	WASHER	13578321 WASHER	-	8	Enquire
18	14496524	WASHER	14496524 WASHER	-	8	Enquire
19	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	8	Enquire
20	292421	FRONT RH JOINT BRACKET	292421 FRONT RH JOINT BRACKET	-	1	Enquire
20	292420	FRONT LH JOINT BRACKET	292420 FRONT LH JOINT BRACKET	-	1	Enquire
21	274997	WHEEL DRIVE STUD	274997 WHEEL DRIVE STUD	-	10	Enquire
22	305461	ADJUSTMENT SHIM	305461 ADJUSTMENT SHIM Th. 4 mm	-	4	Enquire
22	305460	ADJUSTMENT SHIM	305460 ADJUSTMENT SHIM Th. 3.5 mm	-	4	Enquire
22	305459	ADJUSTMENT SHIM	305459 ADJUSTMENT SHIM Th. 3 mm	-	4	Enquire
22	305458	ADJUSTMENT SHIM	305458 ADJUSTMENT SHIM Th. 2.5 mm	-	4	Enquire
22	305457	ADJUSTMENT SHIM	305457 ADJUSTMENT SHIM Th. 2 mm	-	4	Enquire
22	305456	ADJUSTMENT SHIM	305456 ADJUSTMENT SHIM Th. 1.5 mm	-	4	Enquire
22	305455	ADJUSTMENT SHIM	305455 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
22	305454	ADJUSTMENT SHIM	305454 ADJUSTMENT SHIM Th. 0.5 mm	-	4	Enquire
23	13543724	STUD BOLT	13543724 STUD BOLT	-	4	Enquire
