Name: VEHICLE ECUs
Rating: 4.1 (1 reviews)

VEHICLE ECUs of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - VEHICLE ECUs

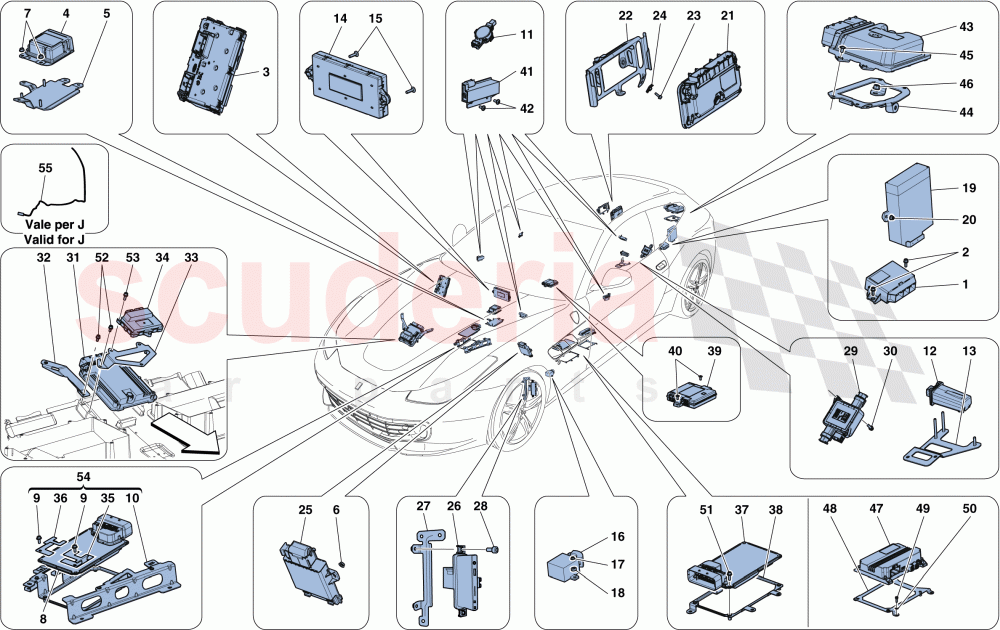

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315391	PARKING SENSOR NODE ECU	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	340216	AIRBAG ECU	$497.98	To Order

Photo	Part No	Description	Price (each)	Stock
	325990	AIRBAG ECU BRACKET	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	312262	MAGNERIDE SUSPENSION ECU	$1,175.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14303474	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	786808	RAIN AND TWILIGHT SENSOR	$243.12	To Order

Photo	Part No	Description	Price (each)	Stock
	314815	TPMS ECU/ANTENNA	$641.82	To Order
	314817	TPMS ECU/ANTENNA	$616.38	To Order

Photo	Part No	Description	Price (each)	Stock
	322469	TMPS ECU BRACKET	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	343009	A/C CONTROLS BLACK BOX	$1,003.41	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	343080	POWER STEERING CONTROL ECU	$200.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	315395	POWER LIFTGATE ECU	$1,075.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	315392	VEHICLE LIFT ECU	$1,010.88	To Order

Photo	Part No	Description	Price (each)	Stock
	270164	BRACKET	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	264097	VOLTAGE STABILIZER	$657.87	To Order

Photo	Part No	Description	Price (each)	Stock
	315386	ADAPTIVE HEADLIGHT NODE ECU	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	335145	NFA NODE MOUNTING BRACKET	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	14304220	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	294559	PWM COMMAND SIGNAL FOR FUEL PUMPS	$372.49	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	337737	IGNITION ECU	$1,673.58	To Order

Photo	Part No	Description	Price (each)	Stock
	333949	RH BRACKET	$41.56	To Order
	333951	LH BRACKET	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	327997	CENTRAL FASTENER BRACKET	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	313125	ION ECU	$1,428.08	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	312311	SIDE CONTROL ECU	$1,347.85	To Order

Photo	Part No	Description	Price (each)	Stock
	326349	CNTR SUSP. CONTROL ECU BRACKET	$58.75	To Order

Photo	Part No	Description	Price (each)	Stock
	328097	PASSIVE START ECU	$401.13	To Order
	328098	PASSIVE START ECU	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	310778	PASSIVE START ANTENNA	$15.07	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	330778	DCT GEARBOX ECU	$1,604.58	To Order

Photo	Part No	Description	Price (each)	Stock
	313218	DCT ECU MOUNTING BRACKET	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	336274	PARKING CAMERA ECU	$2,158.77	To Order

Photo	Part No	Description	Price (each)	Stock
	311387	BRACKET	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	339749	PASSIVE START ANTENNA	$243.85	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	315391	PARKING SENSOR NODE ECU	315391 PARKING SENSOR NODE ECU	$256.72	1
2	231619	SCREW	231619 SCREW M6 X 18	$0.31	2
4	340216	AIRBAG ECU	340216 AIRBAG ECU Applicable for Russia	$497.98	1
5	325990	AIRBAG ECU BRACKET	325990 AIRBAG ECU BRACKET	$54.46	1
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
7	14059211	NUT	14059211 NUT	$0.06	3
8	312262	MAGNERIDE SUSPENSION ECU	312262 MAGNERIDE SUSPENSION ECU	$1,175.41	1
9	14303474	SCREW	14303474 SCREW M4 X 25; Applicable up to Ass. No. 143870	$0.31	4
10	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable up to Ass. No. 143870; Applicable until depletion	$157.66	1
11	786808	RAIN AND TWILIGHT SENSOR	786808 RAIN AND TWILIGHT SENSOR	$243.12	1
12	314815	TPMS ECU/ANTENNA	314815 TPMS ECU/ANTENNA Not for J	$641.82	1
12	314817	TPMS ECU/ANTENNA	314817 TPMS ECU/ANTENNA Applicable for J	$616.38	1
13	322469	TMPS ECU BRACKET	322469 TMPS ECU BRACKET	$48.12	1
14	343009	A/C CONTROLS BLACK BOX	343009 A/C CONTROLS BLACK BOX	$1,003.41	1
15	81591700	SCREW	81591700 SCREW M5 X 20	$2.22	2
16	343080	POWER STEERING CONTROL ECU	343080 POWER STEERING CONTROL ECU	$200.67	1
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
18	65708600	SPACER BUSHING	65708600 SPACER BUSHING	$7.52 MSRP: ~~9.85~~ (23.7% off)	2
19	315395	POWER LIFTGATE ECU	315395 POWER LIFTGATE ECU	$1,075.06	1
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
21	315392	VEHICLE LIFT ECU	315392 VEHICLE LIFT ECU Version with shock absorber with lifter	$1,010.88	1
22	270164	BRACKET	270164 BRACKET Version with shock absorber with lifter	$117.12	1
23	11568124	SCREW	11568124 SCREW M5 X 16; Version with shock absorber with lifter	$0.94	1
24	68700800	CLIP	68700800 CLIP Version with shock absorber with lifter	$1.09	1
25	264097	VOLTAGE STABILIZER	264097 VOLTAGE STABILIZER	$657.87	1
26	315386	ADAPTIVE HEADLIGHT NODE ECU	315386 ADAPTIVE HEADLIGHT NODE ECU Adaptive headlamps	$320.90	1
27	335145	NFA NODE MOUNTING BRACKET	335145 NFA NODE MOUNTING BRACKET	$38.69	1
28	14304220	SCREW	14304220 SCREW M5 X 16; Adaptive headlamps	$0.10	2
29	294559	PWM COMMAND SIGNAL FOR FUEL PUMPS	294559 PWM COMMAND SIGNAL FOR FUEL PUMPS	$372.49	1
30	231619	SCREW	231619 SCREW M6 X 22	$0.31	2
31	337737	IGNITION ECU	337737 IGNITION ECU Unprogrammed	$1,673.58	1
32	333949	RH BRACKET	333949 RH BRACKET	$41.56	1
32	333951	LH BRACKET	333951 LH BRACKET	$41.56	1
33	327997	CENTRAL FASTENER BRACKET	327997 CENTRAL FASTENER BRACKET	$34.38	1
34	313125	ION ECU	313125 ION ECU Unprogrammed	$1,428.08	1
35	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable up to Ass. No. 143870; Applicable until depletion	$157.66	1
36	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable up to Ass. No. 143870; Applicable until depletion	$157.66	1
37	312311	SIDE CONTROL ECU	312311 SIDE CONTROL ECU	$1,347.85	1
38	326349	CNTR SUSP. CONTROL ECU BRACKET	326349 CNTR SUSP. CONTROL ECU BRACKET	$58.75	1
39	328097	PASSIVE START ECU	328097 PASSIVE START ECU Not for J	$401.13	1
39	328098	PASSIVE START ECU	328098 PASSIVE START ECU Applicable for J	$401.34	1
40	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 12 ARRIVING SOON	$0.36	2
41	310778	PASSIVE START ANTENNA	310778 PASSIVE START ANTENNA	$15.07	4
42	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 12 ARRIVING SOON	$0.36	8
43	330778	DCT GEARBOX ECU	330778 DCT GEARBOX ECU Unprogrammed	$1,604.58	1
44	313218	DCT ECU MOUNTING BRACKET	313218 DCT ECU MOUNTING BRACKET	$38.69	1
45	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10 ARRIVING SOON	$0.36	4
46	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
47	336274	PARKING CAMERA ECU	336274 PARKING CAMERA ECU Version with front camera with dual view	$2,158.77	1
48	311387	BRACKET	311387 BRACKET Version with front camera with dual view	$54.46	1
49	14303123	SCREW	14303123 SCREW M4 X 12; Version with front camera with dual view	$0.06	4
50	11181474	WASHER	11181474 WASHER Version with front camera with dual view	$0.06	4
51	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	4
52	248334	SCREW	248334 SCREW M6 X 14	$0.68	4
53	231619	SCREW	231619 SCREW M6 X 18	$0.31	3
54	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable after depletion of: bracket 326348 pos.10, bracket 338212 pos.35, bracket 338213 pos.36, screw 14303474 pos.9; Applicable from Ass. No. 143871	$157.66	1
55	339749	PASSIVE START ANTENNA	339749 PASSIVE START ANTENNA Applicable for J	$243.85	1
