Name: AUDIO SPEAKER SYSTEM
Rating: 4.3 (1 reviews)

AUDIO SPEAKER SYSTEM of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - AUDIO SPEAKER SYSTEM

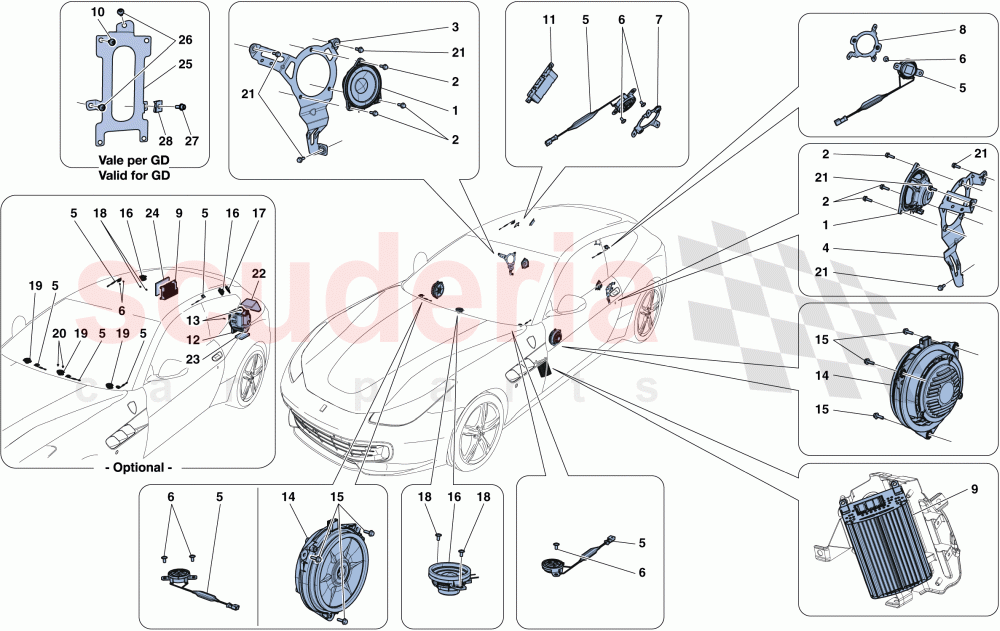

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	321880	TWIDDLER	$197.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	327866	COMPL. RH TWIDDLER MOUNTING BRACKET	$88.85	To Order

Photo	Part No	Description	Price (each)	Stock
	327865	COMPL. LH TWIDDLER MOUNTING BRACKET	$88.85	To Order

Photo	Part No	Description	Price (each)	Stock
	321882	FRONT TWEETER	$78.95	To Order
	321882	FRONT TWEETER	$78.95	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	87940900	COMPL. RH TWEETER MOUNTING BRACKET	$21.48	To Order

Photo	Part No	Description	Price (each)	Stock
	87941100	COMPL. LH TWEETER MOUNTING BRACKET	$21.48	To Order

Photo	Part No	Description	Price (each)	Stock
	334607	8-CHANNEL AMPLIFIER	$1,412.03	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	277243	AM/FM AMPLIFIER	$157.23	To Order

Photo	Part No	Description	Price (each)	Stock
	318552	BASS BOX	$859.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14304220	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	321885	SPEAKER	$383.21	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	321889	SPEAKER	$185.79	To Order
	321889	SPEAKER	$185.79	To Order

Photo	Part No	Description	Price (each)	Stock
	322213	COMPL. RH REAR SPEAKER FASTENER BRACKET	$50.15	To Order
	322203	COMPL. LH REAR SPEAKER FASTENER BRACKET	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	324658	MIDRANGE	$174.17	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	88782700	UPPER PULER	$108.92	To Order

Photo	Part No	Description	Price (each)	Stock
	88782800	LOWER BASS BOX PULER	$108.92	To Order

Photo	Part No	Description	Price (each)	Stock
	88783000	LOWER 12 CHANNEL PULER	$108.92	To Order

Photo	Part No	Description	Price (each)	Stock
	340937	8-CHANNEL AMPLIFIER BRACKET	$101.75	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	SCRE CLIP M6	$0.76	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	321880	TWIDDLER	321880 TWIDDLER	$197.40	2
2	11568124	SCREW	11568124 SCREW M5 X 16	$0.94	6
3	327866	COMPL. RH TWIDDLER MOUNTING BRACKET	327866 COMPL. RH TWIDDLER MOUNTING BRACKET	$88.85	1
4	327865	COMPL. LH TWIDDLER MOUNTING BRACKET	327865 COMPL. LH TWIDDLER MOUNTING BRACKET	$88.85	1
5	321882	FRONT TWEETER	321882 FRONT TWEETER	$78.95	4
5	321882	FRONT TWEETER	321882 FRONT TWEETER Premium Hi-Fi version	$78.95	5
6	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10 ARRIVING SOON	$0.36	8
6	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10; Premium Hi-Fi version ARRIVING SOON	$0.36	10
7	87940900	COMPL. RH TWEETER MOUNTING BRACKET	87940900 COMPL. RH TWEETER MOUNTING BRACKET	$21.48	1
8	87941100	COMPL. LH TWEETER MOUNTING BRACKET	87941100 COMPL. LH TWEETER MOUNTING BRACKET	$21.48	1
9	334607	8-CHANNEL AMPLIFIER	334607 8-CHANNEL AMPLIFIER	$1,412.03	1
10	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 14; Applicable for GD ARRIVING SOON	$0.36	4
11	277243	AM/FM AMPLIFIER	277243 AM/FM AMPLIFIER	$157.23	1
12	318552	BASS BOX	318552 BASS BOX Premium Hi-Fi version	$859.34	1
13	14304220	SCREW	14304220 SCREW M5 X 16; Premium Hi-Fi version	$0.10	3
14	321885	SPEAKER	321885 SPEAKER	$383.21	2
15	11568124	SCREW	11568124 SCREW M5 X 16	$0.94	6
16	321889	SPEAKER	321889 SPEAKER	$185.79	1
16	321889	SPEAKER	321889 SPEAKER Premium Hi-Fi version	$185.79	2
17	322213	COMPL. RH REAR SPEAKER FASTENER BRACKET	322213 COMPL. RH REAR SPEAKER FASTENER BRACKET Premium Hi-Fi version	$50.15	1
17	322203	COMPL. LH REAR SPEAKER FASTENER BRACKET	322203 COMPL. LH REAR SPEAKER FASTENER BRACKET Premium Hi-Fi version	$50.15	1
18	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10 ARRIVING SOON	$0.36	2
18	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10; Premium Hi-Fi version ARRIVING SOON	$0.36	4
19	324658	MIDRANGE	324658 MIDRANGE Premium Hi-Fi version	$174.17	3
20	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 10; Premium Hi-Fi version ARRIVING SOON	$0.36	6
21	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	$0.81	6
22	88782700	UPPER PULER	88782700 UPPER PULER Premium Hi-Fi version	$108.92	1
23	88782800	LOWER BASS BOX PULER	88782800 LOWER BASS BOX PULER Premium Hi-Fi version	$108.92	1
24	88783000	LOWER 12 CHANNEL PULER	88783000 LOWER 12 CHANNEL PULER Premium Hi-Fi version	$108.92	1
25	340937	8-CHANNEL AMPLIFIER BRACKET	340937 8-CHANNEL AMPLIFIER BRACKET Applicable for GD	$101.75	1
26	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 14; Applicable for GD ARRIVING SOON	$0.36	2
27	248334	SCREW	248334 SCREW M6 X 14; Applicable for GD	$0.68	1
28	62766300	SCRE CLIP M6	62766300 SCRE CLIP M6 Applicable for GD	$0.76	1
