Find Your Part

INFOTAINMENT SYSTEM of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - INFOTAINMENT SYSTEM

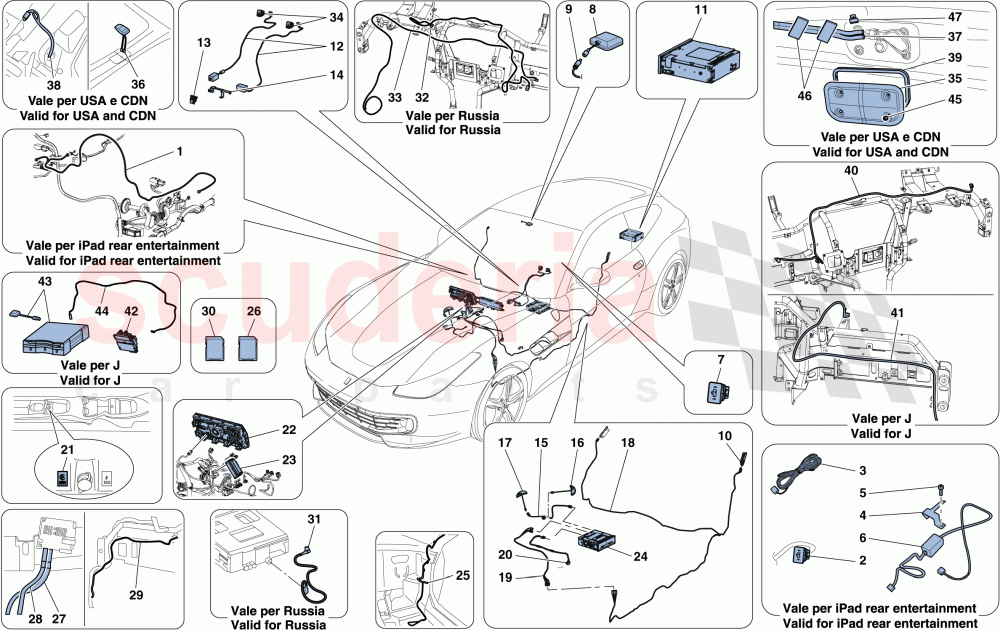

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	302335	ECU-USB CONNECTION WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302327	USB CONNECTOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302281	ECU USB MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302333	ECU USB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335614	GPS ANTENNA EXTENSION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298613	FM2/DAB AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318551	DVD READER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766740	REAR USB SOCKET WIRING HARNESS	Enquire	To Order
	327162	ECU USB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327163	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	756965	BT-NIT ANTENNA CABLE	Enquire	To Order
	332841	WIFI/BT ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286161	WI-FI ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286160	BLUETOOTH ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334398	PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE	Enquire	To Order
	338178	PASSENGER COMPARTMENT AM/FM ANTENNA CABLE	Enquire	To Order
	340787	PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	340786	DASHBOARD AM/FM1/FM2 ANTENNA CABLE	Enquire	To Order
	343087	DASHBOARD AM/FM1/FM2 ANTENNA CABLE	Enquire	To Order
	332842	DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	332459	DASHBOARD CABLE FIBRE-OPTIC HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317086	NDM USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334588	CENTRE DASHBOARD DISPLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337571	USB SPLITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319086	NIT	Enquire	To Order
	336645	NIT	Enquire	To Order
	319084	NIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334401	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	Enquire	To Order
	334402	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	Enquire	To Order
	332460	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	336947	SD CARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335434	USB-NIT SPLITTER-SOCKET CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335435	CABLE FROM SPLITTER TO CARPLAY SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335615	DASHBOARD GPS ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336945	SD CARD 32 GB	Enquire	To Order
	336943	SD CARD 16 GB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327340	LVDS NIT-NDP VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330921	LVDS NIT-NDP VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322538	LVDS NIT-NDP VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	747685	USB SOCKET	Enquire	To Order
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87852500	SDARS SEAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326887	SDARS/GNSS COMBO ANTENNA	Enquire	To Order
	89359700	SDARS/GNSS COMBO ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324255	SPOILER SDARS ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324254	TAILGATE SDARS ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335418	SDARS ANTENNA GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330895	LVDS NDP-NQS VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330894	LVDS NIT-NDC VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337572	4-WAY USB HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336234	DSRC/VICS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334358	DSRC/HUB CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84706800	ADHESIVE FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266000	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	302335	ECU-USB CONNECTION WIRING HARNESS	302335 ECU-USB CONNECTION WIRING HARNESS iPad rear entertainment; No longer supplied	-	1	Enquire
2	303226	USB SOCKET	303226 USB SOCKET iPad rear entertainment	-	2	Enquire
3	302327	USB CONNECTOR CABLE	302327 USB CONNECTOR CABLE iPad rear entertainment	-	2	Enquire
4	302281	ECU USB MOUNTING BRACKET	302281 ECU USB MOUNTING BRACKET iPad rear entertainment; Not for USA, CDN; No longer supplied	-	2	Enquire
5	14303123	SCREW	14303123 SCREW M4 X 12; iPad rear entertainment	-	2	Enquire
6	302333	ECU USB	302333 ECU USB iPad rear entertainment; No longer supplied	-	2	Enquire
7	303226	USB SOCKET	303226 USB SOCKET	-	1	Enquire
9	335614	GPS ANTENNA EXTENSION CABLE	335614 GPS ANTENNA EXTENSION CABLE Not for USA, CDN	-	1	Enquire
10	298613	FM2/DAB AMPLIFIER	298613 FM2/DAB AMPLIFIER	-	1	Enquire
11	318551	DVD READER	318551 DVD READER Version with DVD player	-	1	Enquire
12	766740	REAR USB SOCKET WIRING HARNESS	766740 REAR USB SOCKET WIRING HARNESS Applicable from Ass. No. 143871	-	2	Enquire
12	327162	ECU USB	327162 ECU USB Applicable up to Ass. No. 143870	-	2	Enquire
13	303226	USB SOCKET	303226 USB SOCKET	-	1	Enquire
14	327163	ECU MOUNTING BRACKET	327163 ECU MOUNTING BRACKET	-	1	Enquire
15	756965	BT-NIT ANTENNA CABLE	756965 BT-NIT ANTENNA CABLE Not for GD; Applicable from Ass. No. 143966	-	1	Enquire
15	332841	WIFI/BT ANTENNA CABLE	332841 WIFI/BT ANTENNA CABLE Not for GD; Applicable up to Ass. No. 143965	-	1	Enquire
16	286161	WI-FI ANTENNA	286161 WI-FI ANTENNA Applicable up to Ass. No. 143965	-	1	Enquire
17	286160	BLUETOOTH ANTENNA	286160 BLUETOOTH ANTENNA	-	1	Enquire
18	334398	PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE	334398 PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE Applicable for AUS, UK	-	1	Enquire
18	338178	PASSENGER COMPARTMENT AM/FM ANTENNA CABLE	338178 PASSENGER COMPARTMENT AM/FM ANTENNA CABLE Applicable for USA, CDN	-	1	Enquire
18	340787	PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE	340787 PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE GS version; Applicable for J	-	1	Enquire
18	343091	PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE	343091 PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE GD version; Applicable for J	-	1	Enquire
18	332843	PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE	332843 PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE Not for USA, CDN, J, GD	-	1	Enquire
19	340786	DASHBOARD AM/FM1/FM2 ANTENNA CABLE	340786 DASHBOARD AM/FM1/FM2 ANTENNA CABLE GS version; Applicable for J	-	1	Enquire
19	343087	DASHBOARD AM/FM1/FM2 ANTENNA CABLE	343087 DASHBOARD AM/FM1/FM2 ANTENNA CABLE GD version; Applicable for J	-	1	Enquire
19	332842	DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE	332842 DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE Not for USA, CDN, J, GD	-	1	Enquire
19	334397	DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE	334397 DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE Applicable for AUS, UK	-	1	Enquire
19	338177	DASHBOARD AM/FM ANTENNA CABLE	338177 DASHBOARD AM/FM ANTENNA CABLE Applicable for USA, CDN	-	1	Enquire
20	332459	DASHBOARD CABLE FIBRE-OPTIC HARNESS	332459 DASHBOARD CABLE FIBRE-OPTIC HARNESS Version with DVD changer; Premium Hi-Fi version; Not for GD	-	1	Enquire
21	317086	NDM USB PORT	317086 NDM USB PORT Version with Apple Car Play	-	1	Enquire
22	334588	CENTRE DASHBOARD DISPLAY	334588 CENTRE DASHBOARD DISPLAY	-	1	Enquire
23	337571	USB SPLITTER	337571 USB SPLITTER Not for J	-	1	Enquire
24	319086	NIT	319086 NIT Applicable for J	-	1	Enquire
24	336645	NIT	336645 NIT Not for USA, CDN, J	-	1	Enquire
24	319084	NIT	319084 NIT Applicable for USA, CDN	-	1	Enquire
25	334401	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	334401 PASSENGER COMPARTMENT FIBRE OPTIC CABLE Version with DVD changer; Premium Hi-Fi version; Applicable for GD	-	1	Enquire
25	334402	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	334402 PASSENGER COMPARTMENT FIBRE OPTIC CABLE Version with DVD changer; Applicable for GD	-	1	Enquire
25	332460	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	332460 PASSENGER COMPARTMENT FIBRE OPTIC CABLE Version with DVD changer; Premium Hi-Fi version; Not for GD	-	1	Enquire
25	332462	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	332462 PASSENGER COMPARTMENT FIBRE OPTIC CABLE Premium Hi-Fi version; Not for GD	-	1	Enquire
25	334403	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	334403 PASSENGER COMPARTMENT FIBRE OPTIC CABLE Premium Hi-Fi version; Applicable for GD	-	1	Enquire
25	332461	PASSENGER COMPARTMENT FIBRE OPTIC CABLE	332461 PASSENGER COMPARTMENT FIBRE OPTIC CABLE Version with DVD changer; Not for GD	-	1	Enquire
26	336947	SD CARD	336947 SD CARD	-	1	Enquire
27	335434	USB-NIT SPLITTER-SOCKET CABLE	335434 USB-NIT SPLITTER-SOCKET CABLE	-	1	Enquire
28	335435	CABLE FROM SPLITTER TO CARPLAY SOCKET	335435 CABLE FROM SPLITTER TO CARPLAY SOCKET	-	1	Enquire
29	335615	DASHBOARD GPS ANTENNA CABLE	335615 DASHBOARD GPS ANTENNA CABLE Not for USA, CDN	-	1	Enquire
30	336945	SD CARD 32 GB	336945 SD CARD 32 GB Applicable for EU GS	-	1	Enquire
30	336943	SD CARD 16 GB	336943 SD CARD 16 GB Not for EU GS	-	1	Enquire
31	327340	LVDS NIT-NDP VIDEO CABLE	327340 LVDS NIT-NDP VIDEO CABLE Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system; Version with passenger display	-	1	Enquire
32	330921	LVDS NIT-NDP VIDEO CABLE	330921 LVDS NIT-NDP VIDEO CABLE Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system; Version with front camera with dual view	-	1	Enquire
33	322538	LVDS NIT-NDP VIDEO CABLE	322538 LVDS NIT-NDP VIDEO CABLE Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system; Version with front camera with dual view	-	1	Enquire
34	747685	USB SOCKET	747685 USB SOCKET Applicable from Ass. No. 143871	-	2	Enquire
34	303226	USB SOCKET	303226 USB SOCKET Applicable up to Ass. No. 143870	-	2	Enquire
35	87852500	SDARS SEAL COVER	87852500 SDARS SEAL COVER Applicable for USA, CDN	-	1	Enquire
36	326887	SDARS/GNSS COMBO ANTENNA	326887 SDARS/GNSS COMBO ANTENNA Applicable for USA, CDN; No longer supplied; Replaced by 893597..	-	1	Enquire
36	89359700	SDARS/GNSS COMBO ANTENNA	89359700 SDARS/GNSS COMBO ANTENNA Applicable for USA, CDN	-	1	Enquire
37	324255	SPOILER SDARS ANTENNA CABLE	324255 SPOILER SDARS ANTENNA CABLE Applicable for USA, CDN	-	1	Enquire
38	324254	TAILGATE SDARS ANTENNA CABLE	324254 TAILGATE SDARS ANTENNA CABLE Applicable for USA, CDN	-	1	Enquire
39	335418	SDARS ANTENNA GASKET	335418 SDARS ANTENNA GASKET Applicable for USA, CDN	-	1	Enquire
40	330895	LVDS NDP-NQS VIDEO CABLE	330895 LVDS NDP-NQS VIDEO CABLE Version with passenger display; GD version; Applicable for J	-	1	Enquire
41	330894	LVDS NIT-NDC VIDEO CABLE	330894 LVDS NIT-NDC VIDEO CABLE Version with front camera with dual view; GD version; Applicable for J	-	1	Enquire
42	337572	4-WAY USB HUB	337572 4-WAY USB HUB Applicable for J	-	1	Enquire
43	336234	DSRC/VICS KIT	336234 DSRC/VICS KIT Applicable for J	-	1	Enquire
44	334358	DSRC/HUB CABLE	334358 DSRC/HUB CABLE Applicable for J	-	1	Enquire
45	15896470	NUT	15896470 NUT Applicable for USA, CDN	-	4	Enquire
46	84706800	ADHESIVE FOAM	84706800 ADHESIVE FOAM Applicable for USA, CDN	-	3	Enquire
47	266000	CLIP	266000 CLIP Applicable for USA, CDN	-	1	Enquire
