Find Your Part

DASHBOARD AND TUNNEL INSTRUMENTS of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - DASHBOARD AND TUNNEL INSTRUMENTS

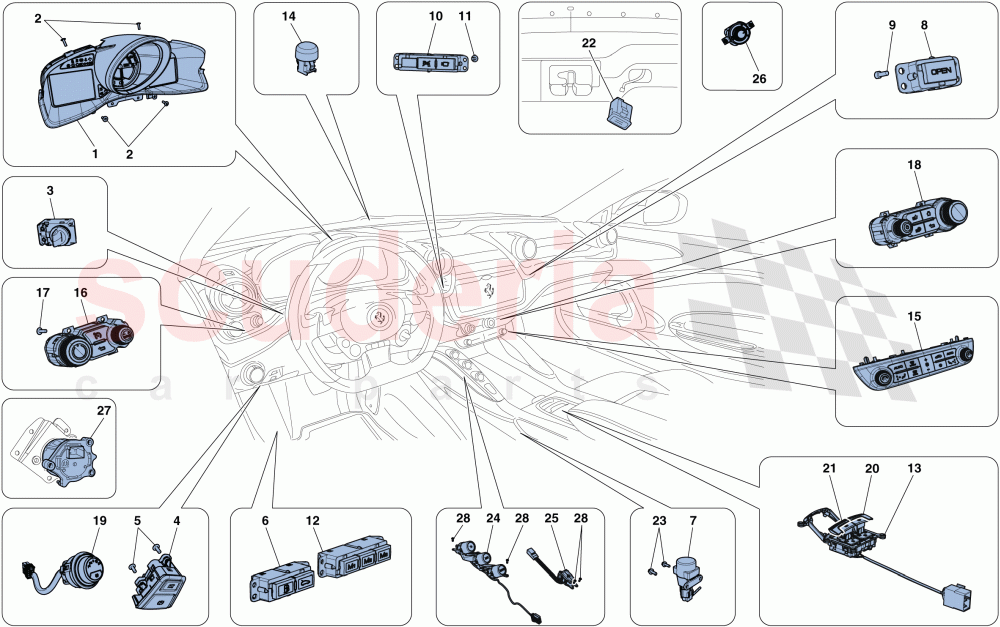

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	339973	INSTRUMENT PANEL	Enquire	To Order
	339967	INSTRUMENT PANEL	Enquire	To Order
	333280	INSTRUMENT PANEL	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193862	STEERING COLUMN ADJUSTMENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319555	EPB SWITCH WITH AUTOPARK DISABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319556	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179087	INERTIAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331188	GLOVE COMPARTMENT OPEN BUTTON	Enquire	To Order
	319562	GLOVE COMPARTMENT OPEN BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331189	SENSORS-CAMERA CONTROL	Enquire	To Order
	331191	SENSORS-CAMERA-LIFT SYSTEM CONTROL	Enquire	To Order
	319567	SENSORS-CAMERA CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319574	MEMORY BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88495600	Power Window Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236871	SUNLIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87291200	AC CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331194	TFT CONTROL	Enquire	To Order
	331207	TFT CONTROL	Enquire	To Order
	319570	TFT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331210	NIT CONTROL	Enquire	To Order
	319573	NIT CONTROL	Enquire	To Order
	328332	NIT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	319553	LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE	Enquire	To Order
	340180	LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328333	RH POWER WINDOW SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328334	LH POWER WINDOW SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319572	CLOSE TAILGATE BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338650	COMPL. F1 GEARBOX CONTROL	Enquire	To Order
	336485	COMPL. F1 GEARBOX CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336232	HAZARD WARNING LIGHT BUTTON	Enquire	To Order
	336233	HAZARD WARNING LIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319552	REAR VIEW MIRROR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900756	KIN FOR PASSIVE START SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343526	SCREW	Enquire	To Order
	343527	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	339973	INSTRUMENT PANEL	339973 INSTRUMENT PANEL Carbon; Aluminium base; Carbon fibre driver zone configuration and steering wheel with LEDs; Applicable for USA	-	1	Enquire
1	339967	INSTRUMENT PANEL	339967 INSTRUMENT PANEL Carbon; White dial face; Carbon fibre driver zone configuration and steering wheel with LEDs; Applicable for USA	-	1	Enquire
1	333280	INSTRUMENT PANEL	333280 INSTRUMENT PANEL Carbon; Aluminium base; Carbon fibre driver zone configuration and steering wheel with LEDs; Not for USA	-	1	Enquire
1	333278	INSTRUMENT PANEL	333278 INSTRUMENT PANEL Carbon; White dial face; Carbon fibre driver zone configuration and steering wheel with LEDs; Not for USA	-	1	Enquire
1	333276	INSTRUMENT PANEL	333276 INSTRUMENT PANEL Carbon; Red dial face; Carbon fibre driver zone configuration and steering wheel with LEDs; Not for USA	-	1	Enquire
1	339965	INSTRUMENT PANEL	339965 INSTRUMENT PANEL Carbon; Red dial face; Carbon fibre driver zone configuration and steering wheel with LEDs; Applicable for USA	-	1	Enquire
1	333277	INSTRUMENT PANEL	333277 INSTRUMENT PANEL Carbon; Yellow dial face; Carbon fibre driver zone configuration and steering wheel with LEDs; Not for USA	-	1	Enquire
1	339966	INSTRUMENT PANEL	339966 INSTRUMENT PANEL Carbon; Yellow dial face; Carbon fibre driver zone configuration and steering wheel with LEDs; Applicable for USA	-	1	Enquire
1	339970	INSTRUMENT PANEL	339970 INSTRUMENT PANEL Aluminium base; Applicable for USA	-	1	Enquire
1	333275	INSTRUMENT PANEL	333275 INSTRUMENT PANEL Carbon; Carbon fibre driver zone configuration and steering wheel with LEDs; Not for USA	-	1	Enquire
1	339963	INSTRUMENT PANEL	339963 INSTRUMENT PANEL Carbon; Carbon fibre driver zone configuration and steering wheel with LEDs; Applicable for USA	-	1	Enquire
1	339961	INSTRUMENT PANEL	339961 INSTRUMENT PANEL White dial face; Applicable for USA	-	1	Enquire
1	333279	INSTRUMENT PANEL	333279 INSTRUMENT PANEL Aluminium base; Not for USA	-	1	Enquire
1	339958	INSTRUMENT PANEL	339958 INSTRUMENT PANEL Yellow dial face; Applicable for USA	-	1	Enquire
1	333272	INSTRUMENT PANEL	333272 INSTRUMENT PANEL Red dial face; Not for USA	-	1	Enquire
1	339955	INSTRUMENT PANEL	339955 INSTRUMENT PANEL Red dial face; Applicable for USA	-	1	Enquire
1	333274	INSTRUMENT PANEL	333274 INSTRUMENT PANEL White dial face; Not for USA	-	1	Enquire
1	333281	INSTRUMENT PANEL	333281 INSTRUMENT PANEL Black dial face; Not for USA	-	1	Enquire
1	339971	INSTRUMENT PANEL	339971 INSTRUMENT PANEL Black dial face; Applicable for USA	-	1	Enquire
1	333273	INSTRUMENT PANEL	333273 INSTRUMENT PANEL Yellow dial face; Not for USA	-	1	Enquire
2	85833700	SCREW	85833700 SCREW M5 X 12	-	4	Enquire
3	193862	STEERING COLUMN ADJUSTMENT CONTROL	193862 STEERING COLUMN ADJUSTMENT CONTROL	-	1	Enquire
4	319555	EPB SWITCH WITH AUTOPARK DISABLE	319555 EPB SWITCH WITH AUTOPARK DISABLE	-	1	Enquire
5	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	3	Enquire
6	319556	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	319556 LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	-	1	Enquire
7	179087	INERTIAL SWITCH	179087 INERTIAL SWITCH	-	1	Enquire
8	331188	GLOVE COMPARTMENT OPEN BUTTON	331188 GLOVE COMPARTMENT OPEN BUTTON	-	1	Enquire
8	319562	GLOVE COMPARTMENT OPEN BUTTON	319562 GLOVE COMPARTMENT OPEN BUTTON Bridge in carbon	-	1	Enquire
9	14418074	SCREW	14418074 SCREW M3 X 6	-	4	Enquire
10	331189	SENSORS-CAMERA CONTROL	331189 SENSORS-CAMERA CONTROL	-	1	Enquire
10	331191	SENSORS-CAMERA-LIFT SYSTEM CONTROL	331191 SENSORS-CAMERA-LIFT SYSTEM CONTROL Version with lifter	-	1	Enquire
10	319567	SENSORS-CAMERA CONTROL	319567 SENSORS-CAMERA CONTROL Version with carbon dash inserts	-	1	Enquire
10	319568	SENSORS-CAMERA-LIFT SYSTEM CONTROL	319568 SENSORS-CAMERA-LIFT SYSTEM CONTROL Version with lifter; Version with carbon dash inserts	-	1	Enquire
11	14418074	SCREW	14418074 SCREW M3 X 8	-	2	Enquire
12	319574	MEMORY BUTTONS	319574 MEMORY BUTTONS	-	2	Enquire
13	88495600	Power Window Control	88495600 Power Window Control	-	1	Enquire
14	236871	SUNLIGHT SENSOR	236871 SUNLIGHT SENSOR No longer supplied	-	1	Enquire
15	87291200	AC CONTROL PANEL	87291200 AC CONTROL PANEL	-	1	Enquire
16	331194	TFT CONTROL	331194 TFT CONTROL Not for GD	-	1	Enquire
16	331207	TFT CONTROL	331207 TFT CONTROL Applicable for GD	-	1	Enquire
16	319570	TFT CONTROL	319570 TFT CONTROL Version with carbon dash inserts; Not for GD	-	1	Enquire
16	328331	TFT CONTROL	328331 TFT CONTROL Version with carbon dash inserts; Applicable for GD	-	1	Enquire
17	14418074	SCREW	14418074 SCREW M3 X 8	-	4	Enquire
18	331210	NIT CONTROL	331210 NIT CONTROL NART grey; Applicable for GD	-	1	Enquire
18	319573	NIT CONTROL	319573 NIT CONTROL Black; Version with carbon dash inserts; Not for GD	-	1	Enquire
18	328332	NIT CONTROL	328332 NIT CONTROL Black; Version with carbon dash inserts; Applicable for GD	-	1	Enquire
18	331197	NIT CONTROL	331197 NIT CONTROL NART grey; Not for GD	-	1	Enquire
19	319553	LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE	319553 LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE Not for J	-	1	Enquire
19	340180	LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE	340180 LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE Applicable for J	-	1	Enquire
20	328333	RH POWER WINDOW SWITCH	328333 RH POWER WINDOW SWITCH	-	1	Enquire
21	328334	LH POWER WINDOW SWITCH	328334 LH POWER WINDOW SWITCH	-	1	Enquire
22	319572	CLOSE TAILGATE BUTTON	319572 CLOSE TAILGATE BUTTON	-	1	Enquire
23	11568124	SCREW	11568124 SCREW M5 X 16	-	2	Enquire
24	338650	COMPL. F1 GEARBOX CONTROL	338650 COMPL. F1 GEARBOX CONTROL Applicable for USA, CDN, USA LIGHT	-	1	Enquire
24	336485	COMPL. F1 GEARBOX CONTROL	336485 COMPL. F1 GEARBOX CONTROL Not for USA, CDN, USA LIGHT	-	1	Enquire
25	336232	HAZARD WARNING LIGHT BUTTON	336232 HAZARD WARNING LIGHT BUTTON	-	1	Enquire
25	336233	HAZARD WARNING LIGHT BUTTON	336233 HAZARD WARNING LIGHT BUTTON Version with carbon fibre bridge	-	1	Enquire
26	319552	REAR VIEW MIRROR CONTROL	319552 REAR VIEW MIRROR CONTROL	-	1	Enquire
27	900756	KIN FOR PASSIVE START SYSTEM	900756 KIN FOR PASSIVE START SYSTEM	-	1	Enquire
28	343526	SCREW	343526 SCREW M3 X 8; Carbon version	-	7	Enquire
28	343527	SCREW	343527 SCREW M3 X 8; Not for version in carbon fibre	-	7	Enquire
