ANTITHEFT SYSTEM of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - ANTITHEFT SYSTEM

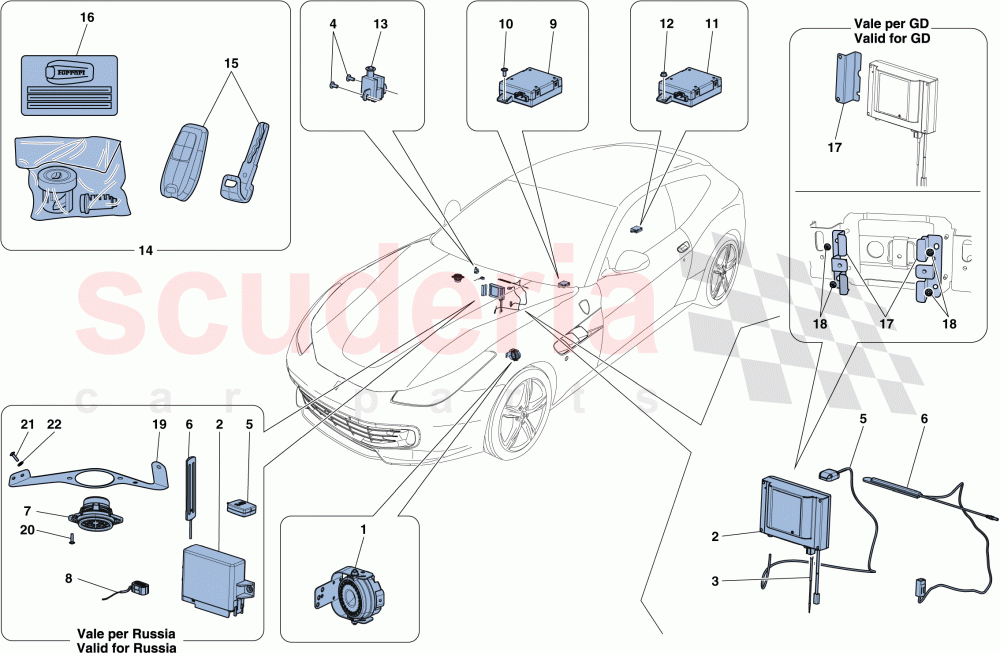

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	336779	COMPL. ANTI-THEFT SYSTEM SIREN	$152.73	To Order

Photo	Part No	Description	Price (each)	Stock
	794832	GLONASS ECU	Enquire	To Order
	330644	GLONASS ECU	Enquire	To Order
	316923	ADR10 SATELLITE ALARM SYSTEM ECU	$3,255.71	To Order

Photo	Part No	Description	Price (each)	Stock
	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	$305.49	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	274464	GPS ANTENNA	$110.44	To Order
	332823	GLONASS GPS ANTENNA	$58.74	To Order

Photo	Part No	Description	Price (each)	Stock
	332824	GLONASS GSM ANTENNA	$58.74	To Order
	274465	GSM ANTENNA	$46.99	To Order

Photo	Part No	Description	Price (each)	Stock
	332825	GLONASS SPEAKER	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	333337	GSM MICROPHONE	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	316531	MASTER DIPOLE ANTI-LIFT SENSOR	$356.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294011	ANTI-THEFT SYSTEM SENSOR	$270.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	847648	DASHBOARD INFOLED	$120.33	To Order

Photo	Part No	Description	Price (each)	Stock
	328976	KEY AND BLOCK KIT	$1,412.03	To Order
	329045	KEY AND BLOCK KIT	$1,412.03	To Order

Photo	Part No	Description	Price (each)	Stock
	328403	KEYLESS KEY KIT	$962.74	To Order
	328404	KEYLESS KEY KIT	$962.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6326163	SECRET CARD LABEL FOR KEYS	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	342940	ECU RETAINER BRACKET	$27.26	To Order
	342940	ECU RETAINER BRACKET	$27.26	To Order
	282642	NAVTRACK FASTENER BRACKET	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	89171400	SPEAKER MOUNTING BRACKET	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	IN STOCK

View All

ANTITHEFT SYSTEM of Ferrari Ferrari GTC4Lusso T

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	336779	COMPL. ANTI-THEFT SYSTEM SIREN	336779 COMPL. ANTI-THEFT SYSTEM SIREN	$152.73	1
	2	794832	GLONASS ECU	794832 GLONASS ECU Scheduled; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system; Version without satellite alarm system	-	1		Enquire
	2	330644	GLONASS ECU	330644 GLONASS ECU Unprogrammed; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system; Version without satellite alarm system; No longer supplied; Replaced by 794832	-	1		Enquire
	2	316923	ADR10 SATELLITE ALARM SYSTEM ECU	316923 ADR10 SATELLITE ALARM SYSTEM ECU Not for J	$3,255.71	1
	3	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	307605 ADR10 ANTI-THEFT SYSTEM ANTENNA Not for J	$305.49	1
	4	85833900	SCREW IN STOCK	85833900 SCREW M5 X 12 IN STOCK	$0.36	2
	5	274464	GPS ANTENNA	274464 GPS ANTENNA Not for J	$110.44	1
	5	332823	GLONASS GPS ANTENNA	332823 GLONASS GPS ANTENNA Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system	$58.74	1
	6	332824	GLONASS GSM ANTENNA	332824 GLONASS GSM ANTENNA Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system	$58.74	1
	6	274465	GSM ANTENNA	274465 GSM ANTENNA Not for J	$46.99	1
	7	332825	GLONASS SPEAKER	332825 GLONASS SPEAKER Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system	$48.12	1
	8	333337	GSM MICROPHONE	333337 GSM MICROPHONE Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system	$192.54	1
	9	316531	MASTER DIPOLE ANTI-LIFT SENSOR IN STOCK	316531 MASTER DIPOLE ANTI-LIFT SENSOR IN STOCK	$356.71	1
	10	85833900	SCREW IN STOCK	85833900 SCREW M5 X 12 IN STOCK	$0.36	2
	11	294011	ANTI-THEFT SYSTEM SENSOR	294011 ANTI-THEFT SYSTEM SENSOR	$270.61	1
	12	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	2
	13	847648	DASHBOARD INFOLED	847648 DASHBOARD INFOLED	$120.33	1
	14	328976	KEY AND BLOCK KIT	328976 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key; Not for J	$1,412.03	1
	14	329045	KEY AND BLOCK KIT	329045 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key; Applicable for J	$1,412.03	1
	15	328403	KEYLESS KEY KIT	328403 KEYLESS KEY KIT Not for J	$962.74	1
	15	328404	KEYLESS KEY KIT	328404 KEYLESS KEY KIT Applicable for J	$962.74	1
	16	6326163	SECRET CARD LABEL FOR KEYS	6326163 SECRET CARD LABEL FOR KEYS	$2.74	1
	17	342940	ECU RETAINER BRACKET	342940 ECU RETAINER BRACKET Not for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Not for GD	$27.26	1
	17	342940	ECU RETAINER BRACKET	342940 ECU RETAINER BRACKET Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	$27.26	2
	17	282642	NAVTRACK FASTENER BRACKET	282642 NAVTRACK FASTENER BRACKET Applicable for GD	$10.73	1
	18	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system IN STOCK	$1.43	4
	18	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Not for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets IN STOCK	$1.43	4
	19	89171400	SPEAKER MOUNTING BRACKET	89171400 SPEAKER MOUNTING BRACKET Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system	$49.73	1
	20	88822200	SCREW IN STOCK	88822200 SCREW M4 X 10; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system IN STOCK	$0.70	2
	21	85833900	SCREW IN STOCK	85833900 SCREW M5 X 14; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system IN STOCK	$0.36	3
	22	62769800	WASHER IN STOCK	62769800 WASHER Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Version without satellite alarm system; Applicable for ERA GLONASS system IN STOCK	$0.23 MSRP: ~~0.30~~ (23.3% off)	3
