Ferrari GTC4Lusso T - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
10448890 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
177553 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
177553 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
219946 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
266000 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62766300 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
62764200 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
303385 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
279762 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
81744400 Clip Enquire To Order
Photo Part No Description Price (each) Stock
65708600 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
303385 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
13839224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
266002 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
303508 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
320599 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
248061 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
177553 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
279762 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
206739 CLAMP Enquire To Order
331573 CABLE TIE Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
82271400 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
330430 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
287686 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
279626 SHIELD MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
295730 CABLE RETAINER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
307484 CABLE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
299072 CABLE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
329905 COMPL. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
279762 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
310112 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
320597 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
255515 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
255515 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
303138 HEAT SHIELD Enquire To Order
View All

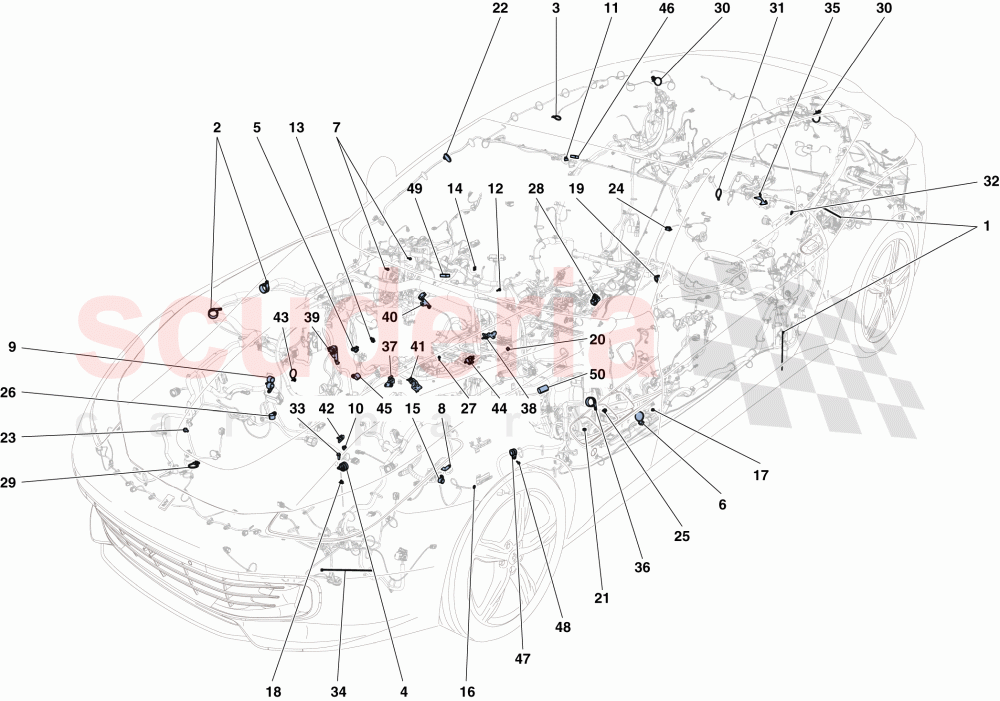

VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 MC43254
CLAMP 		- 54 Enquire
2 10448890
BRACKET WITH SHEATH 		- 16 Enquire
3 10815787
CLAMP 		- 3 Enquire
4 10442190
BRACKET WITH SHEATH 		- 2 Enquire
5 177553
CLAMP 		- 22 Enquire
6 177553
CLAMP 		- 10 Enquire
7 11568124
SCREW
M5 X 16 		- 15 Enquire
8 219946
BRACKET 		- 2 Enquire
9 10441790
BRACKET WITH SHEATH 		- 2 Enquire
10 14059311
NUT 		- 1 Enquire
11 266000
CLIP 		- 1 Enquire
12 81591700
SCREW
M5 X 20 		- 2 Enquire
13 62766300
CLIP 		- 3 Enquire
14 62764200
CLIP 		- 2 Enquire
15 10441290
BRACKET WITH SHEATH 		- 2 Enquire
16 12638124
WASHER 		- 1 Enquire
17 14059211
NUT 		- 13 Enquire
18 303385
CLIP 		- 2 Enquire
19 279762
CLAMP 		- 3 Enquire
20 81744400
Clip 		- 1 Enquire
21 65708600
SPACER BUSHING 		- 2 Enquire
22 303385
CLIP 		- 9 Enquire
23 13839224
SCREW
M8 X 16 		- 1 Enquire
24 266002
CLIP 		- 3 Enquire
25 303508
CLIP 		- 1 Enquire
26 320599
CLIP 		- 4 Enquire
27 85833700
SCREW
M5 X 16 		- 4 Enquire
28 248061
CLIP 		- 1 Enquire
29 177553
CLAMP 		- 2 Enquire
30 279762
CLAMP 		- 4 Enquire
31 206739
CLAMP
No longer supplied; Replaced by 331573 		- 2 Enquire
31 331573
CABLE TIE 		- 2 Enquire
32 248334
SCREW M6 X 14MM
M6 X 14 		- 1 Enquire
33 82271400
SCREW
M8 X 25 		- 1 Enquire
34 MC43254
CLAMP
Version with front camera with dual view 		- 1 Enquire
35 330430
BRACKET 		- 1 Enquire
36 287686
BRACKET WITH SHEATH 		- 1 Enquire
37 279626
SHIELD MOUNTING BRACKET 		- 1 Enquire
38 295730
CABLE RETAINER BRACKET 		- 1 Enquire
40 307484
CABLE MOUNTING BRACKET 		- 1 Enquire
41 299072
CABLE MOUNTING BRACKET 		- 1 Enquire
42 329905
COMPL. BRACKET
Not for GD 		- 1 Enquire
43 279762
CLAMP 		- 1 Enquire
44 310112
CLIP
1 compartment 		- 2 Enquire
45 320597
CLIP 		- - Enquire
46 255515
BUSH
100 x 50 mm; Applicable for GD 		- 1 Enquire
47 10441590
BRACKET WITH SHEATH
Applicable for GD 		- 1 Enquire
48 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18; Applicable for GD 		- 1 Enquire
49 255515
BUSH
100 x 50 mm; Applicable for Russia; Version with passenger display 		- 1 Enquire
50 303138
HEAT SHIELD 		- 1 Enquire
