Name: TIMING SYSTEM - TAPPETS
Rating: 5.0 (1 reviews)

TIMING SYSTEM - TAPPETS of Ferrari Ferrari FF

View All

Ferrari FF - TIMING SYSTEM - TAPPETS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$529.50	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW	$14.15	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	197975	SEAL RING	$7.99	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	261603	RH INTAKE CAMSHAFT	$9,135.32	To Order

Photo	Part No	Description	Price (each)	Stock
	261604	LH INTAKE CAMSHAFT	$9,135.32	To Order

Photo	Part No	Description	Price (each)	Stock
	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$529.50	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	261605	RH EXHAUST CAMSHAFT	$9,135.32	To Order

Photo	Part No	Description	Price (each)	Stock
	261606	LH EXHAUST CAMSHAFT	$9,135.32	To Order

Photo	Part No	Description	Price (each)	Stock
	247480	HYDRAULIC TAPPET	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	237390	UPPER STOP CAP	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	228824	INTERNAL VALVE RETURN SPRING	$7.68	To Order

Photo	Part No	Description	Price (each)	Stock
	228823	EXTERNAL VALVE RETURN SPRING	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	247484	LOWER STOP COLLAR	$6.24	To Order

Photo	Part No	Description	Price (each)	Stock
	6213498	VALVE GUIDE	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	198581	INTAKE VALVE	$16.84	To Order
	238485	EXHAUST VALVE	$27.38	To Order

Photo	Part No	Description	Price (each)	Stock
	6222848	EXHAUST VALVE SEAT	$10.44	To Order
	6222847	INTAKE VALVE SEAT	$9.77	To Order

View All

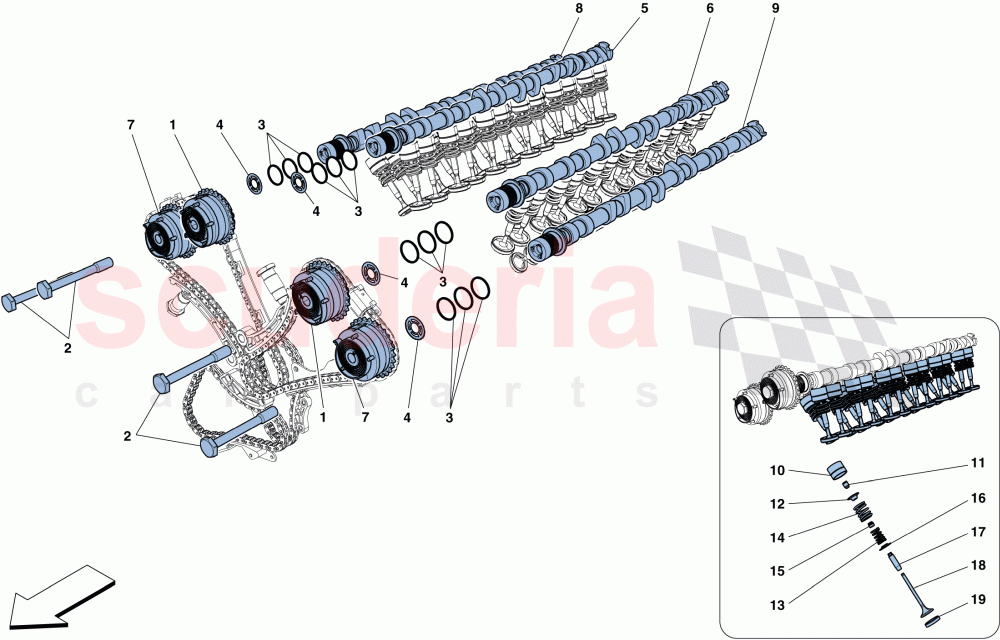

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT ARRIVING SOON	241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT ARRIVING SOON	$529.50	2
2	254892	SCREW ARRIVING SOON	254892 SCREW M14 X 1.5 ARRIVING SOON	$14.15	4
3	197975	SEAL RING	197975 SEAL RING	$7.99 MSRP: ~~12.85~~ (37.8% off)	12
4	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	$9.51	4
5	261603	RH INTAKE CAMSHAFT	261603 RH INTAKE CAMSHAFT	$9,135.32	1
6	261604	LH INTAKE CAMSHAFT	261604 LH INTAKE CAMSHAFT	$9,135.32	1
7	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT ARRIVING SOON	248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT ARRIVING SOON	$529.50	2
8	261605	RH EXHAUST CAMSHAFT	261605 RH EXHAUST CAMSHAFT	$9,135.32	1
9	261606	LH EXHAUST CAMSHAFT	261606 LH EXHAUST CAMSHAFT	$9,135.32	1
10	247480	HYDRAULIC TAPPET	247480 HYDRAULIC TAPPET	$99.47	48
11	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	$0.91	96
12	237390	UPPER STOP CAP	237390 UPPER STOP CAP	$10.10	48
13	228824	INTERNAL VALVE RETURN SPRING	228824 INTERNAL VALVE RETURN SPRING	$7.68	48
14	228823	EXTERNAL VALVE RETURN SPRING	228823 EXTERNAL VALVE RETURN SPRING	$10.10	48
15	221473	OIL SEAL	221473 OIL SEAL	$1.91 MSRP: ~~2.60~~ (26.5% off)	48
16	247484	LOWER STOP COLLAR	247484 LOWER STOP COLLAR	$6.24	48
17	6213498	VALVE GUIDE	6213498 VALVE GUIDE	$3.36 MSRP: ~~4.33~~ (22.4% off)	48
18	198581	INTAKE VALVE	198581 INTAKE VALVE	$16.84 MSRP: ~~23.97~~ (29.7% off)	24
18	238485	EXHAUST VALVE	238485 EXHAUST VALVE	$27.38	24
19	6222848	EXHAUST VALVE SEAT	6222848 EXHAUST VALVE SEAT	$10.44	24
19	6222847	INTAKE VALVE SEAT	6222847 INTAKE VALVE SEAT	$9.77	24
