Name: AC SYSTEM COMPRESSOR
Rating: 4.9 (1 reviews)

AC SYSTEM COMPRESSOR of Ferrari Ferrari FF

View All

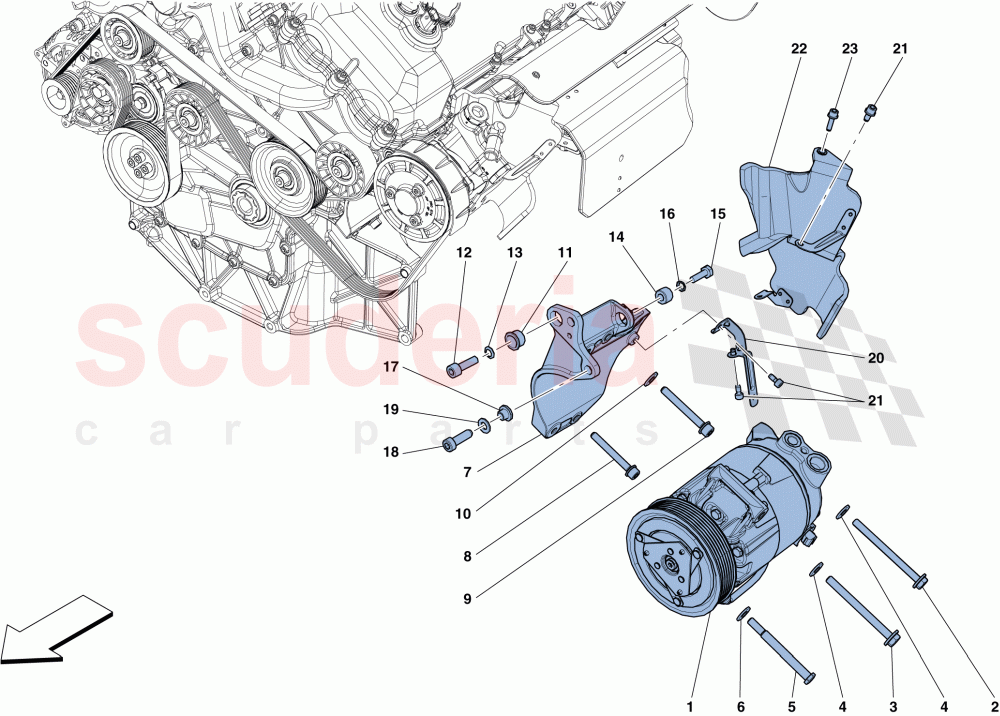

Ferrari FF - AC SYSTEM COMPRESSOR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	287796	AIR CONDITIONING COMPRESSOR	$1,427.23	To Order
	287796	AIR CONDITIONING COMPRESSOR	$1,427.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16046134	SCREW	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	16045024	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	11186374	WASHER	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	231630	SCREW	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	248389	BUSH	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	178341	WASHER	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	260393	BUSH	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	178341	WASHER	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	249541	BUSHING	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	259273	BRACKET	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order
	231620	SCREW	$0.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	287796	AIR CONDITIONING COMPRESSOR	287796 AIR CONDITIONING COMPRESSOR After depletion order 287796 + bracket 288450 ref.7; Applicable up to engine No. 211026; Applicable until depletion	$1,427.23	1
1	287796	AIR CONDITIONING COMPRESSOR	287796 AIR CONDITIONING COMPRESSOR Applicable from engine No. 211027	$1,427.23	1
2	16046134	SCREW	16046134 SCREW M8 X 100	$1.26	1
3	16045024	SCREW	16045024 SCREW M8 X 90	$0.79 MSRP: ~~1.75~~ (54.9% off)	1
4	11193874	WASHER	11193874 WASHER	$0.06	2
5	14306424	SCREW	14306424 SCREW	$0.24 MSRP: ~~0.41~~ (41.5% off)	1
6	11186374	WASHER	11186374 WASHER	$1.15	1
8	231630	SCREW	231630 SCREW M8 X 65	$1.02	1
9	14306924	SCREW	14306924 SCREW M8 X 50	$0.75	1
10	11193874	WASHER	11193874 WASHER	$0.06	1
11	248389	BUSH	248389 BUSH	$6.66	1
12	14306424	SCREW	14306424 SCREW	$0.24 MSRP: ~~0.41~~ (41.5% off)	1
13	178341	WASHER	178341 WASHER	$0.65	1
14	260393	BUSH	260393 BUSH	$2.84	1
15	16043634	SCREW	16043634 SCREW M8 X 25	$0.23	1
16	178341	WASHER	178341 WASHER	$0.65	1
17	249541	BUSHING	249541 BUSHING Applicable for bracket 248387 ref. 7	$91.45	2
18	13028734	SCREW	13028734 SCREW M8 X 25	$0.53 MSRP: ~~2.25~~ (76.4% off)	2
19	11193874	WASHER	11193874 WASHER	$0.06	2
20	259273	BRACKET	259273 BRACKET	$28.87	1
21	248334	SCREW	248334 SCREW M6 X 12	$0.68	3
23	231619	SCREW	231619 SCREW M6 X 20; No longer supplied; Replaced by 231620	$0.31	1
23	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
