Ferrari FF - INTAKE MANIFOLD

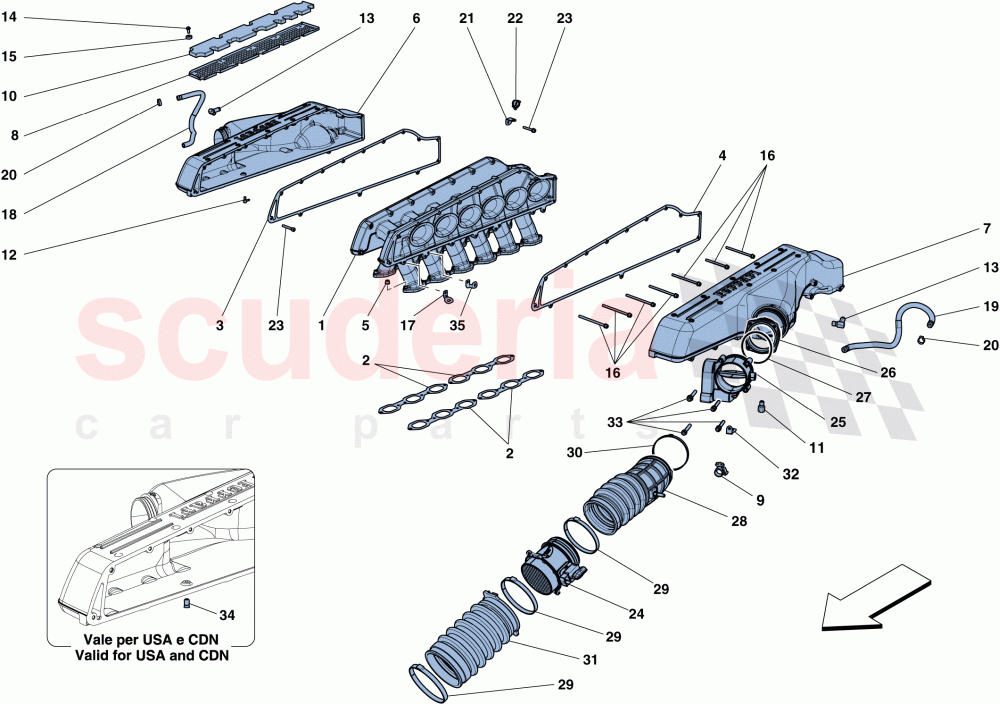

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	271909	COMPL. INTAKE MANIFOLD	Enquire	To Order
	280957	COMPL. INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257849	COMPL. RH LINER HOLDER FRAME	Enquire	To Order
	257850	COMPL. LH LINER HOLDER FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257851	RUBBER LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268877	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268875	CONNECTOR	Enquire	To Order
	274736	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291079	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287120	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14300434	SCREW	Enquire	To Order
	14303834	SCREW	Enquire	To Order
	278351	SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	262736	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276166	RH FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276167	LH FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261374	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245028	AIR FLOW METER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150302	Oil Pump O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269864	RH CONNECTOR PIPE	Enquire	To Order
	282233	RH SLEEVE	Enquire	To Order
	269865	LH CONNECTOR PIPE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	266404	CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268987	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219786	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285240	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	271909	COMPL. INTAKE MANIFOLD	271909 COMPL. INTAKE MANIFOLD Applicable up to engine No. 176320	-	1	Enquire
1	280957	COMPL. INTAKE MANIFOLD	280957 COMPL. INTAKE MANIFOLD Applicable from engine No. 176321	-	1	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	24	Enquire
8	257849	COMPL. RH LINER HOLDER FRAME	257849 COMPL. RH LINER HOLDER FRAME	-	1	Enquire
8	257850	COMPL. LH LINER HOLDER FRAME	257850 COMPL. LH LINER HOLDER FRAME	-	1	Enquire
9	178430	FASTENER CLIP	178430 FASTENER CLIP	-	2	Enquire
10	257851	RUBBER LINER	257851 RUBBER LINER	-	2	Enquire
11	268877	CONNECTOR	268877 CONNECTOR	-	2	Enquire
12	268875	CONNECTOR	268875 CONNECTOR Not for USA, CDN, USA LIGHT; Applicable up to engine No. 176320	-	2	Enquire
12	274736	CONNECTOR	274736 CONNECTOR Not for USA, CDN, USA LIGHT; Applicable from engine No. 176321	-	2	Enquire
13	291079	CONNECTOR	291079 CONNECTOR	-	2	Enquire
14	287120	SCREW	287120 SCREW M6 X 14 X 1	-	20	Enquire
15	216292	GASKET	216292 GASKET	-	20	Enquire
16	14300434	SCREW	14300434 SCREW M6 X 95; Fastening plenums in lower area	-	12	Enquire
16	14303834	SCREW	14303834 SCREW M6 X 60; Fastening plenum in area under RH pump	-	1	Enquire
16	278351	SCREW	278351 SCREW M6 X 85; Fastening plenum in area under RH pump	-	1	Enquire
16	14300534	SCREW	14300534 SCREW M6 X 75; Lower rear fastening for LH plenum in area under pump	-	1	Enquire
17	262736	BRACKET	262736 BRACKET	-	2	Enquire
18	276166	RH FLUSH PIPE	276166 RH FLUSH PIPE	-	1	Enquire
19	276167	LH FLUSH PIPE	276167 LH FLUSH PIPE	-	1	Enquire
20	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	4	Enquire
21	261374	BRACKET	261374 BRACKET	-	1	Enquire
22	198273	CLIP	198273 CLIP	-	1	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	3	Enquire
24	245028	AIR FLOW METER ARRIVING SOON	245028 AIR FLOW METER ARRIVING SOON	-	2	Enquire
25	331005	THROTTLE BODY	331005 THROTTLE BODY	-	2	Enquire
26	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	-	2	Enquire
27	150302	Oil Pump O-Ring	150302 Oil Pump O-Ring Applicable up to engine No. 186322	-	2	Enquire
28	269864	RH CONNECTOR PIPE	269864 RH CONNECTOR PIPE Applicable for USA, CDN, USA LIGHT; Applicable up to engine No. 195647	-	1	Enquire
28	282233	RH SLEEVE	282233 RH SLEEVE Applicable for USA, CDN, USA LIGHT; Applicable from engine No. 195648	-	1	Enquire
28	269865	LH CONNECTOR PIPE	269865 LH CONNECTOR PIPE Applicable for USA, CDN, USA LIGHT; Applicable up to engine No. 195647	-	1	Enquire
28	282234	LH SLEEVE	282234 LH SLEEVE Applicable for USA, CDN, USA LIGHT; Applicable from engine No. 195648	-	1	Enquire
28	269866	RH CONNECTOR PIPE	269866 RH CONNECTOR PIPE Not for USA, CDN, USA LIGHT	-	1	Enquire
28	269867	LH CONNECTOR PIPE	269867 LH CONNECTOR PIPE Not for USA, CDN, USA LIGHT	-	1	Enquire
29	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	6	Enquire
30	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	2	Enquire
31	266404	CONNECTOR PIPE	266404 CONNECTOR PIPE	-	2	Enquire
32	268987	CABLE RETAINER BRACKET	268987 CABLE RETAINER BRACKET	-	1	Enquire
33	231624	SCREW	231624 SCREW M6 X 45	-	8	Enquire
34	219786	THREADED PLUG	219786 THREADED PLUG Applicable for USA, CDN, USA LIGHT	-	1	Enquire
35	285240	BRACKET	285240 BRACKET Applicable for USA, CDN, USA LIGHT; Applicable from engine No. 195648	-	2	Enquire
