RIGHT HAND CYLINDER HEAD

Find Your Part

Ferrari FF - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
273223 RH HEAD $3,637.30 To Order
300331 RH HEAD $3,669.64 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.20 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.31 To Order
282755 THREADED PLUG $2.14 To Order
282400 THREADED PLUG $3.91 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
243720 SCREW $0.60 To Order
243721 SCREW WITH WASHER $0.50 To Order
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.58 To Order
Photo Part No Description Price (each) Stock
239614 GASKET $6.73 To Order
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.58 To Order
239502 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13541324 STUD BOLT $1.85 To Order
13541424 STUD BOLT $0.44 To Order
211641 STUD BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $240.67 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
271268 RH CYLINDER HEAD COVER $722.05 To Order
292565 RH CYLINDER HEAD COVER $759.72 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $19.24 To Order
Photo Part No Description Price (each) Stock
271521 CONNECTOR $6.84 To Order
Photo Part No Description Price (each) Stock
243800 RH HEAD COVER GASKET $85.03 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.54 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
252099 SHIELD MOUNTING BRACKET $19.24 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $39.30 ARRIVING SOON
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
214412 STUD BOLT $13.14 To Order
214412 STUD BOLT $13.14 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
214412 STUD BOLT $13.14 To Order
214412 STUD BOLT $13.14 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.26 To Order
11197774 WASHER $0.06 To Order
11197774 WASHER $0.06 To Order
View All

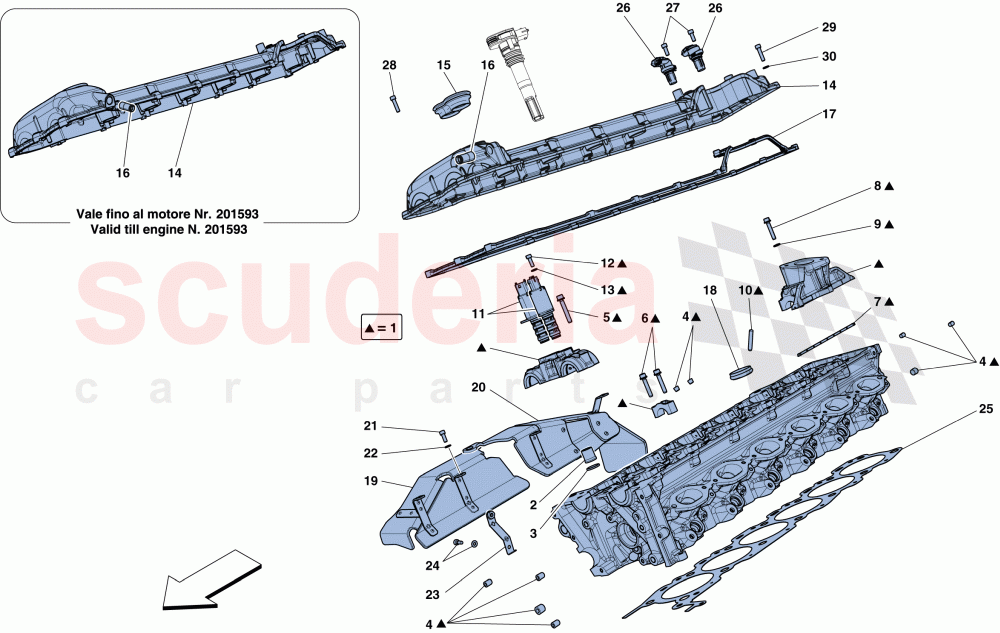

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 273223
RH HEAD
Applicable up to engine No. 201593 		$3,637.30 1
1 300331
RH HEAD
Applicable from engine No. 201594 		$3,669.64 1
2 321187
NUT
Fastening head to crankcase 		- 28 Enquire
3 151117
WASHER
Fastening head to crankcase 		$1.20 28
4 199760
THREADED PLUG
D. 6 X 1 		$0.31 7
4 282755
THREADED PLUG
D. 10 X 1.25; For oil circuit orifices 		$2.14 5
4 282400
THREADED PLUG
M12 X 11 		$3.91 2
4 127635
THREADED PLUG
M18 X 11 X 1.5; For rear water orifice cover 		$3.32 (20.4% off) 1
4 127635
THREADED PLUG
M18 X 11 X 1.5; Inspection hole cover 		$3.32 (20.4% off) 12
5 243720
SCREW
M6 X 40 		$0.60 2
5 243721
SCREW WITH WASHER
M6 X 45 		$0.50 4
6 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35 		$0.58 12
7 239614
GASKET 		$6.73 1
8 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35 		$0.58 1
8 239502
SCREW
M6 X 25 		$0.63 1
9 11197774
WASHER 		$0.06 (80% off) 1
10 13541324
STUD BOLT
M6 X 12; Shank length 25 mm; Fastening intake manifold 		$1.85 10
10 13541424
STUD BOLT
M6 X 12; Shank length 28 mm; Fastening intake manifold on alignment pins 		$0.44 (37.1% off) 2
10 211641
STUD BOLT
M8 X 16; Shank length 24 mm; Fastening exhaust manifold 		$1.04 12
11 801187
OIL PRESSURE REGULATOR VALVE 		$240.67 2
12 14304124
SCREW
M5 X 16 		$0.16 (78.7% off) 2
13 11181574
WASHER 		$0.02 2
14 271268
RH CYLINDER HEAD COVER
Applicable up to engine No. 201593 		$722.05 1
14 292565
RH CYLINDER HEAD COVER
Applicable from engine No. 201594 		$759.72 1
15 229353
SOLENOID VALVE GASKET 		$19.24 (34.3% off) 1
16 271521
CONNECTOR 		$6.84 1
17 243800
RH HEAD COVER GASKET 		$85.03 (23.8% off) 1
18 223982
SPARK PLUG TUBE SEAL 		$2.54 (36% off) 6
21 248334
SCREW
M6 X 14 		$0.68 4
22 11197774
WASHER 		$0.06 (80% off) 4
23 252099
SHIELD MOUNTING BRACKET 		$19.24 1
24 248334
SCREW
M6 X 14 		$0.68 1
26 224573
TIMING SENSOR
ARRIVING SOON 		$39.30 (29.1% off) 2
27 248334
SCREW
M6 X 14 		$0.68 2
28 214412
STUD BOLT
Applicable up to engine No. 201497 		$13.14 1
28 214412
STUD BOLT
M6 X 25; Applicable from engine No. 201498 		$13.14 1
29 248334
SCREW
M6 X 14 		$0.68 1
29 214412
STUD BOLT
M6 X 25 		$13.14 16
29 214412
STUD BOLT
M6 X 25; Applicable up to engine No. 201593 		$13.14 2
30 986899
WASHER
Applicable from engine No. 201594 		$6.26 2
30 11197774
WASHER 		$0.06 (80% off) 19
30 11197774
WASHER
Applicable up to engine No. 201593 		$0.06 (80% off) 17
