Name: ALTERNATOR - STARTER MOTOR
Rating: 5.0 (1 reviews)

ALTERNATOR - STARTER MOTOR of Ferrari Ferrari FF

View All

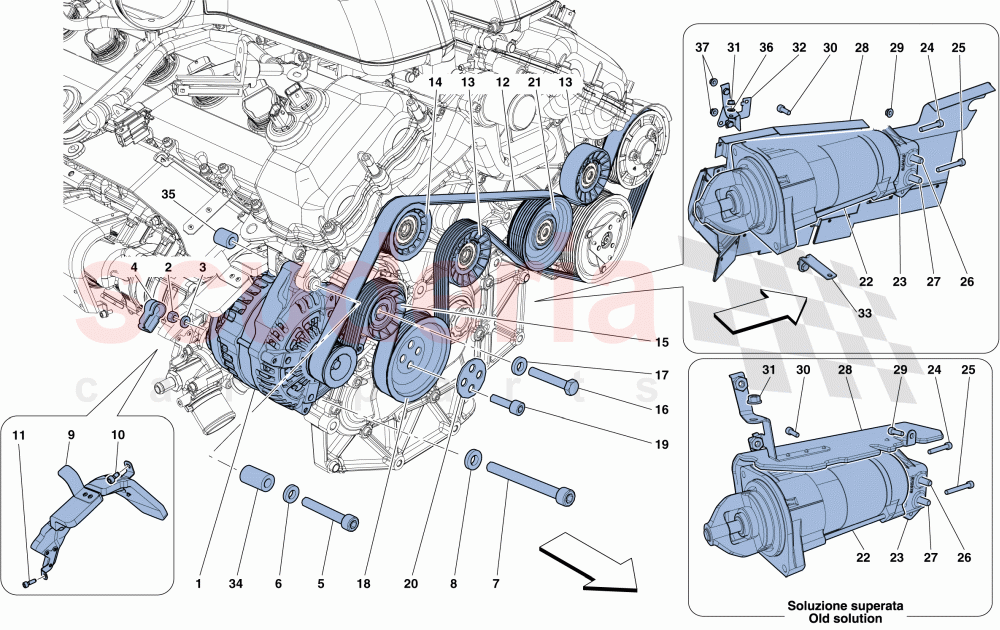

Ferrari FF - ALTERNATOR - STARTER MOTOR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	154803	PROTECTIVE CAP	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	14308224	SCREW	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	243857	ALTERNATOR BELT	$74.38	To Order

Photo	Part No	Description	Price (each)	Stock
	272554	SMOOTH PULLEY	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	252513	6-GROOVE PULLEY WITH SCREW	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	271881	BELT TENSIONER	$177.74	To Order

Photo	Part No	Description	Price (each)	Stock
	268567	SCREW	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	260136	ANCILLARY DRIVE BELT	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	258597	PLATE	$8.70	To Order

Photo	Part No	Description	Price (each)	Stock
	257942	6-GROOVE PULLEY WITH SCREW	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	272494	STARTER MOTOR	$741.57	To Order

Photo	Part No	Description	Price (each)	Stock
	272479	REAR STARTER MOTOR BRACKET	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	255494	SCREW	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	$25.30	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	272830	HEAT SHIELD	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	290097	BRACKET	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	290098	BRACKET	$14.10	To Order

Photo	Part No	Description	Price (each)	Stock
	258137	BUSH	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	258138	THREADED BUSHING	$11.73	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
3	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	1
4	154803	PROTECTIVE CAP	154803 PROTECTIVE CAP	$5.43	1
5	14308224	SCREW	14308224 SCREW M10 X 1.25 X 65	$1.13	1
6	10569474	WASHER	10569474 WASHER	$0.06	1
7	14308724	SCREW	14308724 SCREW M10 X 1.25 X 100	$3.68	1
8	10569474	WASHER	10569474 WASHER	$0.06	1
10	248334	SCREW	248334 SCREW M6 X 12	$0.68	1
11	231619	SCREW	231619 SCREW M6 X 18	$0.31	1
12	243857	ALTERNATOR BELT	243857 ALTERNATOR BELT	$74.38 MSRP: ~~169.46~~ (56.1% off)	1
13	272554	SMOOTH PULLEY	272554 SMOOTH PULLEY	$240.67	2
14	252513	6-GROOVE PULLEY WITH SCREW	252513 6-GROOVE PULLEY WITH SCREW	$176.49 MSRP: ~~221.18~~ (20.2% off)	1
15	271881	BELT TENSIONER	271881 BELT TENSIONER	$177.74	1
16	268567	SCREW	268567 SCREW M8 X 60	$5.58	1
17	11193874	WASHER	11193874 WASHER	$0.06	1
18	260136	ANCILLARY DRIVE BELT	260136 ANCILLARY DRIVE BELT	$139.58	1
19	14306424	SCREW	14306424 SCREW	$0.24 MSRP: ~~0.41~~ (41.5% off)	1
20	258597	PLATE	258597 PLATE	$8.70	1
21	257942	6-GROOVE PULLEY WITH SCREW	257942 6-GROOVE PULLEY WITH SCREW	$224.63	1
22	272494	STARTER MOTOR	272494 STARTER MOTOR	$741.57	1
23	272479	REAR STARTER MOTOR BRACKET	272479 REAR STARTER MOTOR BRACKET	$114.66	1
24	231624	SCREW	231624 SCREW M6 X 45	$0.44	1
25	255494	SCREW	255494 SCREW M6 X 55	$9.60	1
26	84317700	SCREW 8 X 30	84317700 SCREW 8 X 30 M8 X 25	$25.30	1
27	231629	SCREW	231629 SCREW M8 X 30	$0.65 MSRP: ~~0.95~~ (31.6% off)	1
28	272830	HEAT SHIELD	272830 HEAT SHIELD Applicable up to engine No. 185957	$286.67	1
29	248334	SCREW	248334 SCREW M6 X 14; Applicable up to engine No. 185957	$0.68	1
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable from engine No. 185958	$1.51	1
30	248334	SCREW	248334 SCREW M6 X 12	$0.68	1
31	15896470	NUT	15896470 NUT	$7.33	1
32	290097	BRACKET	290097 BRACKET Applicable from engine No. 185958	$41.56	1
33	290098	BRACKET	290098 BRACKET Applicable from engine No. 185958	$14.10	1
34	258137	BUSH	258137 BUSH	$5.58	2
35	258138	THREADED BUSHING	258138 THREADED BUSHING	$11.73	2
36	12637824	WASHER	12637824 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	1
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
