LEFT HAND CYLINDER HEAD of Ferrari Ferrari FF

View All

Ferrari FF - LEFT HAND CYLINDER HEAD

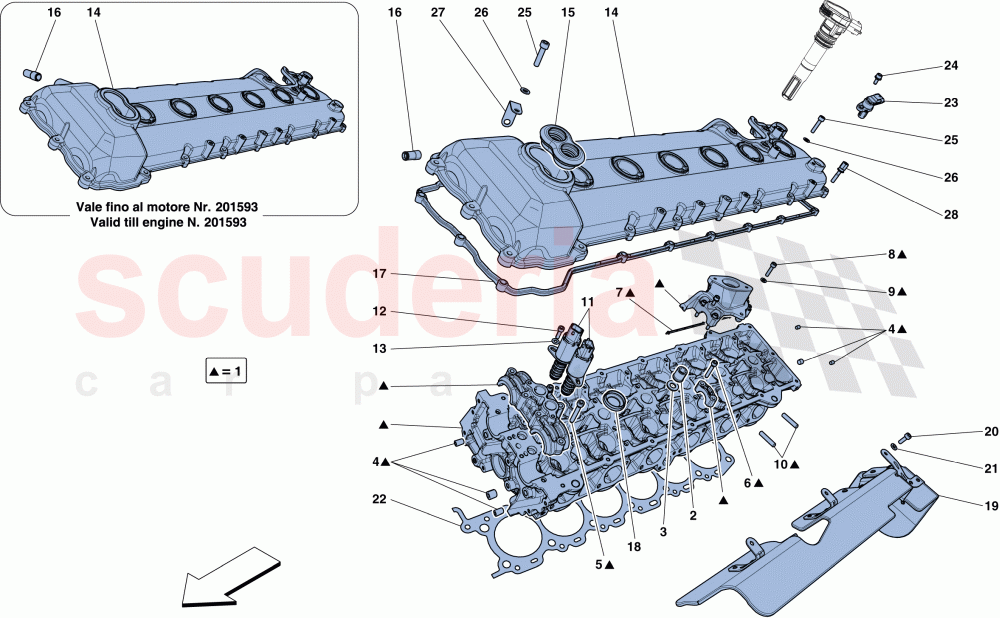

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	273224	LH HEAD	Enquire	To Order
	300332	LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	IN STOCK
	282400	THREADED PLUG	Enquire	To Order
	127635	THREADED PLUG	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	243720	SCREW	Enquire	IN STOCK
	243721	SCREW WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	IN STOCK
	239502	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	IN STOCK
	13541324	STUD BOLT	Enquire	To Order
	13541424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271269	LH CYLINDER HEAD COVER	Enquire	To Order
	292566	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271521	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243802	LH HEAD COVER GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	IN STOCK
	157218	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK
	986899	WASHER	Enquire	To Order
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219946	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	273224	LH HEAD	273224 LH HEAD Applicable up to engine No. 201593	-	1	Enquire
1	300332	LH HEAD	300332 LH HEAD Applicable from engine No. 201594	-	1	Enquire
2	321187	NUT	321187 NUT	-	28	Enquire
3	151117	WASHER 11.25-22X2.5 IN STOCK	151117 WASHER 11.25-22X2.5 IN STOCK	-	28	Enquire
4	199760	THREADED PLUG IN STOCK	199760 THREADED PLUG D. 6 X 1 IN STOCK	-	6	Enquire
4	282400	THREADED PLUG	282400 THREADED PLUG M12 X 11	-	2	Enquire
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; For rear water orifice cover	-	1	Enquire
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; Inspection hole cover	-	12	Enquire
4	282755	THREADED PLUG	282755 THREADED PLUG D. 10 X 1.25	-	5	Enquire
5	243720	SCREW IN STOCK	243720 SCREW M6 X 40 IN STOCK	-	2	Enquire
5	243721	SCREW WITH WASHER IN STOCK	243721 SCREW WITH WASHER M6 X 45 IN STOCK	-	4	Enquire
6	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 IN STOCK	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35 IN STOCK	-	12	Enquire
7	239614	GASKET IN STOCK	239614 GASKET IN STOCK	-	1	Enquire
8	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 IN STOCK	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35 IN STOCK	-	1	Enquire
8	239502	SCREW IN STOCK	239502 SCREW M6 X 25 IN STOCK	-	1	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
10	211641	STUD BOLT IN STOCK	211641 STUD BOLT M8 X 16; Shank length 24 mm IN STOCK	-	12	Enquire
10	13541324	STUD BOLT	13541324 STUD BOLT M6 X 12; Shank length 25 mm	-	10	Enquire
10	13541424	STUD BOLT	13541424 STUD BOLT M6 X 12; Shank length 28 mm	-	2	Enquire
11	801187	OIL PRESSURE REGULATOR VALVE IN STOCK	801187 OIL PRESSURE REGULATOR VALVE IN STOCK	-	2	Enquire
12	14304124	SCREW	14304124 SCREW M5 X 16	-	2	Enquire
13	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	-	2	Enquire
14	271269	LH CYLINDER HEAD COVER	271269 LH CYLINDER HEAD COVER Applicable up to engine No. 201593	-	1	Enquire
14	292566	LH CYLINDER HEAD COVER	292566 LH CYLINDER HEAD COVER Applicable from engine No. 201594	-	1	Enquire
15	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	-	1	Enquire
16	271521	CONNECTOR	271521 CONNECTOR	-	1	Enquire
17	243802	LH HEAD COVER GASKET IN STOCK	243802 LH HEAD COVER GASKET IN STOCK	-	1	Enquire
18	223982	SPARK PLUG TUBE SEAL IN STOCK	223982 SPARK PLUG TUBE SEAL IN STOCK	-	6	Enquire
20	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	3	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	3	Enquire
23	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
24	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
25	157218	SCREW IN STOCK	157218 SCREW M6 X 25 IN STOCK	-	23	Enquire
25	157218	SCREW IN STOCK	157218 SCREW M6 X 25; Applicable up to engine No. 201593 IN STOCK	-	2	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 201593 IN STOCK	-	2	Enquire
26	986899	WASHER	986899 WASHER Applicable from engine No. 201594	-	2	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	19	Enquire
27	219946	BRACKET	219946 BRACKET	-	1	Enquire
28	339948	STUD BOLT	339948 STUD BOLT No longer supplied	-	1	Enquire
