GEARBOX LAY SHAFT of Ferrari Ferrari F50

View All

Ferrari F50 - GEARBOX LAY SHAFT

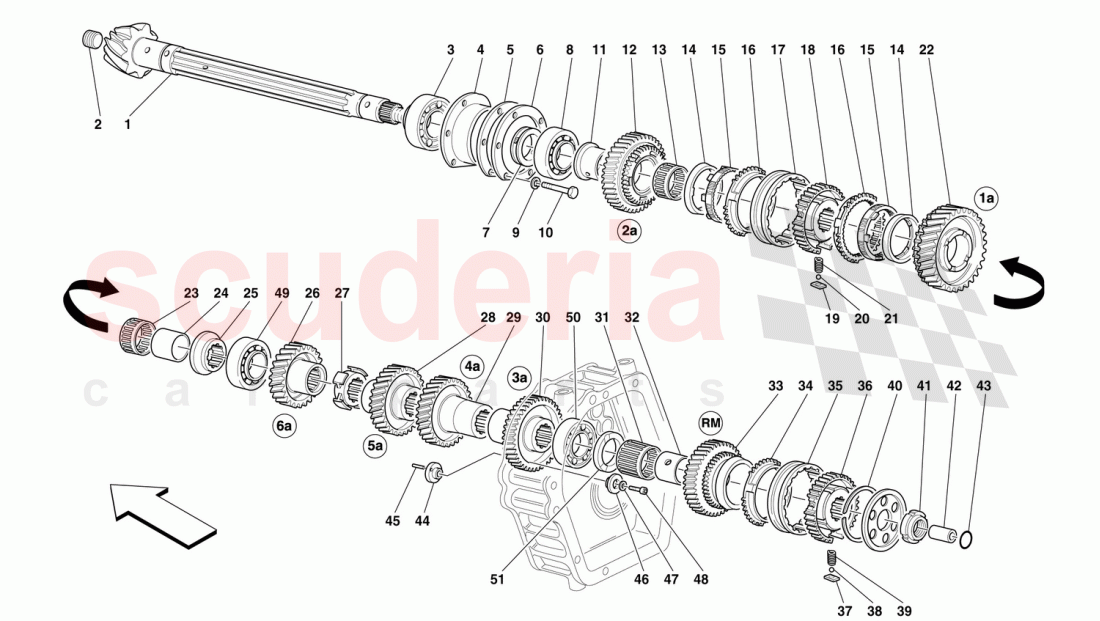

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	168139	OUTPUT SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101636	Bearing, axle side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156376	BAG FOR BEARINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146715	SPACER -Th. mm. 2,0-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146716	SPACER -Th. mm. 3,5-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122152	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121822	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156894	CARRIER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166969	PINION FOR 2nd GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101604	Roller cage for 1st 2nd 3rd speeds and reverse gears	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169780	INNER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169779	SYNCHRONIZER MIDDLING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152191	SYNCHRONIZER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152189	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154439	SYNCHRONIZER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152195	PAD FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152197	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152196	SPRING FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166967	PINION FOR 1st GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101604	Roller cage for 1st 2nd 3rd speeds and reverse gears	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104704	Roller race for 1st, 2nd, 3rd, speed and reverse gears	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156895	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156224	PINION FOR 6th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150810	TRANSMITTING DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166880	PINION FOR 5th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166974	PINION FOR 4th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166973	PINION FOR 3th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159193	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156948	ROLLER CAGE RACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166880	PINION FOR 5th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152479	SYNCHRONIZER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152206	SLEEVE FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154475	COMPLETE SYNCHRONIZER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152195	PAD FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152197	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152196	SPRING FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156655	LOCK RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156980	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156975	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101031	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157010	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14159470	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157009	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228055	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108656	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151135	SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	169779	SYNCHRONIZER MIDDLING RING	169779 SYNCHRONIZER MIDDLING RING Valid after stock exhaustion of 152194 /	-	2	Enquire
-	169780	INNER RING	169780 INNER RING Valid after stock exhaustion of 152193	-	2	Enquire
-	151281	SPACER -Th. mm. 2,4-	151281 SPACER -Th. mm. 2,4- Possible fitting	-	1	Enquire
-	138136	SPACER -As an alternative-	138136 SPACER -As an alternative-	-	1	Enquire
-	151278	SPACER -Th. mm. 1,6-	151278 SPACER -Th. mm. 1,6- Possible fitting	-	1	Enquire
-	151279	SPACER -Th. mm.1,8-	151279 SPACER -Th. mm.1,8- Possible fitting	-	1	Enquire
-	151280	SPACER -Th. mm. 2,2-	151280 SPACER -Th. mm. 2,2- Possible fitting	-	1	Enquire
-	168091	OUTPUT SHAFT	168091 OUTPUT SHAFT Not as spare part now / With the complete crown wheel / and pinion 169792	-	1	Enquire
-	169792	COMPLETE CROWN WHEEL AND PINION R.10/37	169792 COMPLETE CROWN WHEEL AND PINION R.10/37 PINION R.10/37	-	1	Enquire
1	168139	OUTPUT SHAFT	168139 OUTPUT SHAFT Not as spare part now / With the complete crown wheel / and pinion 169544	-	1	Enquire
2	282753	THREADED PLUG	282753 THREADED PLUG Valid till gearbox N¡ 32	-	1	Enquire
3	101636	Bearing, axle side	101636 Bearing, axle side	-	1	Enquire
4	156376	BAG FOR BEARINGS	156376 BAG FOR BEARINGS	-	1	Enquire
5	146715	SPACER -Th. mm. 2,0-	146715 SPACER -Th. mm. 2,0-	-	1	Enquire
6	146716	SPACER -Th. mm. 3,5-	146716 SPACER -Th. mm. 3,5-	-	1	Enquire
7	122152	SPACER	122152 SPACER	-	1	Enquire
8	121822	ROLLER BEARING	121822 ROLLER BEARING	-	1	Enquire
9	127496	WASHER	127496 WASHER	-	6	Enquire
10	16044024	SCREW	16044024 SCREW	-	6	Enquire
11	156894	CARRIER BUSH	156894 CARRIER BUSH	-	1	Enquire
12	166969	PINION FOR 2nd GEAR	166969 PINION FOR 2nd GEAR	-	1	Enquire
13	101604	Roller cage for 1st 2nd 3rd speeds and reverse gears	101604 Roller cage for 1st 2nd 3rd speeds and reverse gears	-	1	Enquire
14	169780	INNER RING	169780 INNER RING	-	2	Enquire
15	169779	SYNCHRONIZER MIDDLING RING	169779 SYNCHRONIZER MIDDLING RING Valid till stock exhaustion /	-	2	Enquire
16	152191	SYNCHRONIZER RING	152191 SYNCHRONIZER RING	-	2	Enquire
17	152189	SLEEVE	152189 SLEEVE	-	1	Enquire
18	154439	SYNCHRONIZER BODY	154439 SYNCHRONIZER BODY	-	1	Enquire
19	152195	PAD FOR SYNCHRONIZER	152195 PAD FOR SYNCHRONIZER	-	3	Enquire
20	152197	BALL	152197 BALL	-	3	Enquire
21	152196	SPRING FOR SYNCHRONIZER	152196 SPRING FOR SYNCHRONIZER	-	3	Enquire
22	166967	PINION FOR 1st GEAR	166967 PINION FOR 1st GEAR	-	1	Enquire
23	101604	Roller cage for 1st 2nd 3rd speeds and reverse gears	101604 Roller cage for 1st 2nd 3rd speeds and reverse gears	-	1	Enquire
24	104704	Roller race for 1st, 2nd, 3rd, speed and reverse gears	104704 Roller race for 1st, 2nd, 3rd, speed and reverse gears	-	1	Enquire
25	156895	SPACER	156895 SPACER	-	1	Enquire
26	156224	PINION FOR 6th GEAR	156224 PINION FOR 6th GEAR	-	1	Enquire
27	150810	TRANSMITTING DISC	150810 TRANSMITTING DISC	-	1	Enquire
28	166880	PINION FOR 5th GEAR	166880 PINION FOR 5th GEAR	-	1	Enquire
29	166974	PINION FOR 4th GEAR	166974 PINION FOR 4th GEAR	-	1	Enquire
30	166973	PINION FOR 3th GEAR	166973 PINION FOR 3th GEAR	-	1	Enquire
31	159193	ROLLER CAGE	159193 ROLLER CAGE	-	1	Enquire
32	156948	ROLLER CAGE RACE	156948 ROLLER CAGE RACE	-	1	Enquire
33	166880	PINION FOR 5th GEAR	166880 PINION FOR 5th GEAR	-	1	Enquire
34	152479	SYNCHRONIZER RING	152479 SYNCHRONIZER RING	-	1	Enquire
35	152206	SLEEVE FOR SYNCHRONIZER	152206 SLEEVE FOR SYNCHRONIZER	-	1	Enquire
36	154475	COMPLETE SYNCHRONIZER BODY	154475 COMPLETE SYNCHRONIZER BODY	-	1	Enquire
37	152195	PAD FOR SYNCHRONIZER	152195 PAD FOR SYNCHRONIZER	-	3	Enquire
38	152197	BALL	152197 BALL	-	3	Enquire
39	152196	SPRING FOR SYNCHRONIZER	152196 SPRING FOR SYNCHRONIZER	-	3	Enquire
40	156655	LOCK RING	156655 LOCK RING	-	1	Enquire
41	156980	RING NUT	156980 RING NUT	-	1	Enquire
42	156975	BUSHING	156975 BUSHING	-	1	Enquire

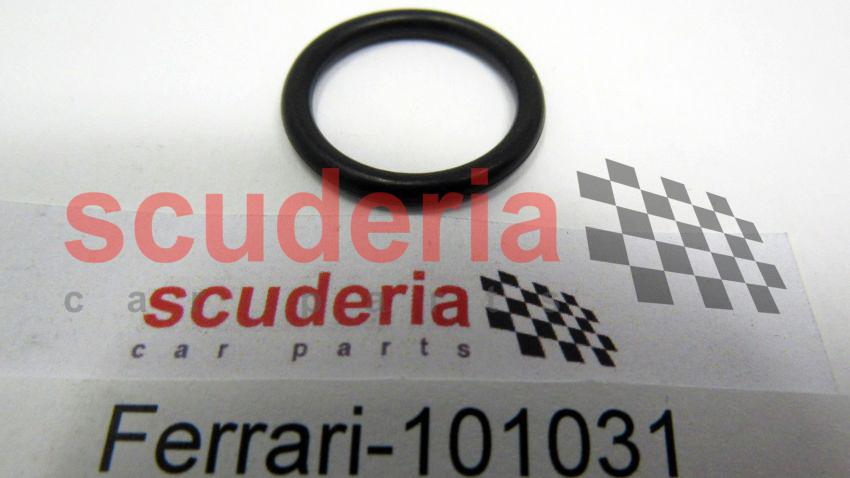

43	101031	GASKET	101031 GASKET	-	1	Enquire
44	157010	BUSHING	157010 BUSHING	-	1	Enquire
45	14159470	PIN	14159470 PIN	-	1	Enquire
46	157009	BUSHING	157009 BUSHING	-	1	Enquire
47	238108	WASHER	238108 WASHER	-	1	Enquire
48	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
49	228055	ROLLER BEARING	228055 ROLLER BEARING	-	1	Enquire
50	108656	ROLLER BEARING	108656 ROLLER BEARING	-	1	Enquire
51	151135	SPACER	151135 SPACER	-	1	Enquire
