DRIVING SHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari F50

View All

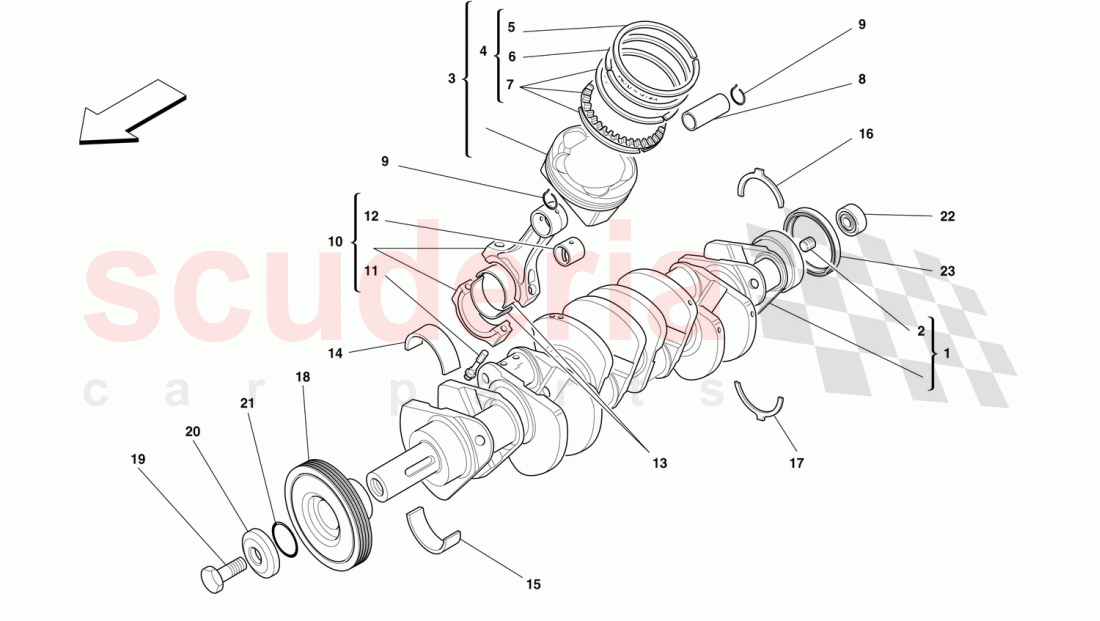

Ferrari F50 - DRIVING SHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	168234	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269750	THREADED PLUG - Ø 18 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168775	COMPLETE PISTON WITH RINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162671	PISTONS RINGS SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160813	AC SEAL RING (1st groove)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162671	PISTONS RINGS SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162671	PISTONS RINGS SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154717	GUDGEON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166901	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156334	COMPLETE CONNECTING ROD AND CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158186	CONNECTING ROD TIGHTENING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155097	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159683	CONNECTING ROD HALF BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159359	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138793	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159857	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154778	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	GROOVED BALL BEARING D.30-35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149998	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	169576	HALF BEARINGS COMPLETE SERIES	169576 HALF BEARINGS COMPLETE SERIES 1st UNDERSIZE mm. 0,254	-	1	Enquire
-	169577	HALF BEARINGS COMPLETE SERIES	169577 HALF BEARINGS COMPLETE SERIES 2nd UNDERSIZE mm. 0,508	-	1	Enquire
-	1000888	HALF BEARINGS COMPLETE SERIES	1000888 HALF BEARINGS COMPLETE SERIES Nominal / Valid till stock exhaustion	-	1	Enquire
-	159684	CONNECTING ROD HALF BEARING	159684 CONNECTING ROD HALF BEARING 1st UNDERSIZE mm. 0,254	-	-	Enquire
-	159685	CONNECTING ROD HALF BEARING	159685 CONNECTING ROD HALF BEARING 2nd UNDERSIZE mm. 0,508	-	-	Enquire
-	127635	THREADED PLUG	127635 THREADED PLUG	-	1	Enquire
1	168234	CRANKSHAFT	168234 CRANKSHAFT	-	1	Enquire
2	10269750	THREADED PLUG - Ø 18 mm	10269750 THREADED PLUG - Ø 18 mm Not as spare part now / Replaced by 127635	-	1	Enquire
3	168775	COMPLETE PISTON WITH RINGS	168775 COMPLETE PISTON WITH RINGS	-	12	Enquire
4	162671	PISTONS RINGS SET	162671 PISTONS RINGS SET	-	12	Enquire
5	160813	AC SEAL RING (1st groove)	160813 AC SEAL RING (1st groove) Not as spare part / With the complete pistons rings set	-	12	Enquire
6	162671	PISTONS RINGS SET	162671 PISTONS RINGS SET Not as spare part / With the complete pistons rings set	-	12	Enquire
7	162671	PISTONS RINGS SET	162671 PISTONS RINGS SET Not as spare part / With the complete pistons rings set	-	12	Enquire
8	154717	GUDGEON PIN	154717 GUDGEON PIN	-	12	Enquire
9	166901	STOP RING	166901 STOP RING	-	24	Enquire
10	156334	COMPLETE CONNECTING ROD AND CAP	156334 COMPLETE CONNECTING ROD AND CAP AND CAP	-	12	Enquire
11	158186	CONNECTING ROD TIGHTENING SCREW	158186 CONNECTING ROD TIGHTENING SCREW TIGHTENING SCREW	-	24	Enquire
12	155097	BUSHING	155097 BUSHING	-	12	Enquire
13	159683	CONNECTING ROD HALF BEARING	159683 CONNECTING ROD HALF BEARING Nominal	-	24	Enquire
18	159359	TORSION DAMPER	159359 TORSION DAMPER	-	1	Enquire
19	138793	SCREW	138793 SCREW	-	1	Enquire
20	159857	WASHER	159857 WASHER	-	1	Enquire
21	154778	O.R. GASKET	154778 O.R. GASKET	-	1	Enquire
22	103877	GROOVED BALL BEARING D.30-35	103877 GROOVED BALL BEARING D.30-35	-	1	Enquire
23	149998	GASKET	149998 GASKET	-	1	Enquire
