DIFFERENTIAL AND AXLE SHAFT of Ferrari Ferrari F50

View All

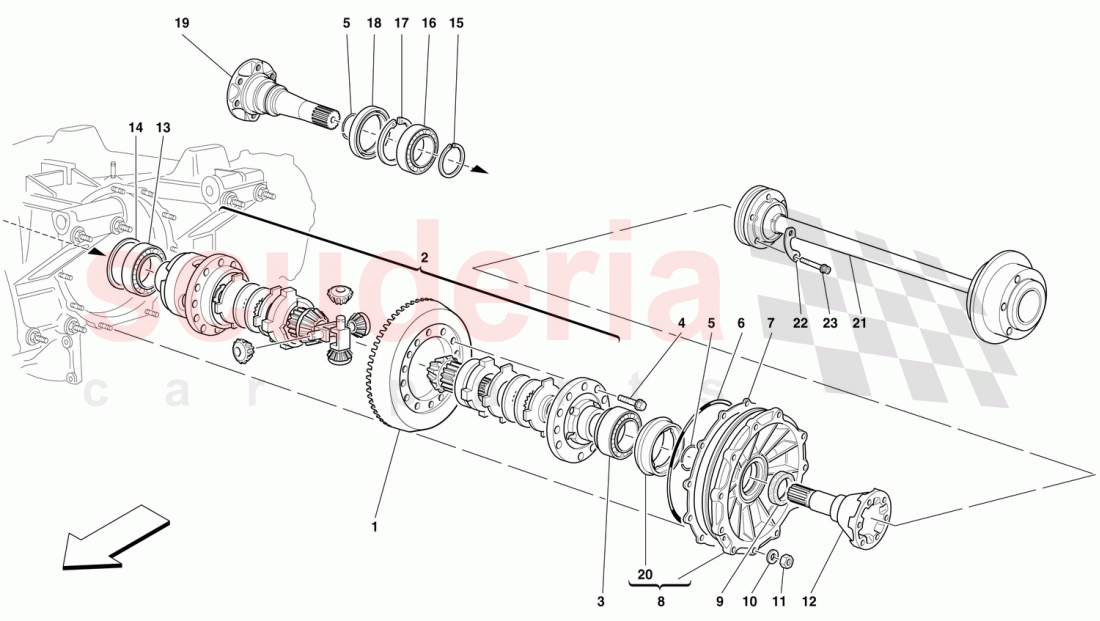

Ferrari F50 - DIFFERENTIAL AND AXLE SHAFT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	169792	COMPLETE CROWN WHEEL AND PINION R.10/37	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161112	COMPLETE DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125390	Bearing for differential support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161355	FLEXIBLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151768	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151632	SPACER Th. 2,7 mm.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169513	DIFFERENTIAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141509	L.H. seal ring on	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161406	L.H. FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101634	Bearing for differential support for LH cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122068	Ditto, thickness mm. 3,40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156473	FLEXIBLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156161	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11061976	FLEXIBLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151546	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161371	R.H. FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156546	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148500	AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	SHIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	Screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	163805	SPACER Th. 4,0 mm.	163805 SPACER Th. 4,0 mm. As an alternative	-	1	Enquire
-	122071	Ditto, thickness mm. 3,20	122071 Ditto, thickness mm. 3,20 As an alternative	-	1	Enquire
-	122069	Ditto, thickness mm. 3,60	122069 Ditto, thickness mm. 3,60 As an alternative	-	1	Enquire
-	163804	SPACER Th. 3,8 mm.	163804 SPACER Th. 3,8 mm. As an alternative	-	1	Enquire
-	169536	SPACER Th. 2,4 mm.	169536 SPACER Th. 2,4 mm. As an alternative	-	1	Enquire
-	122067	Spacer for differential bearing thickness mm. 2,80 (eventual use)	122067 Spacer for differential bearing thickness mm. 2,80 (eventual use) As an alternative	-	1	Enquire
-	122070	Ditto, thickness mm. 3	122070 Ditto, thickness mm. 3 As an alternative	-	1	Enquire
-	169534	SPACER Th. 2 mm.	169534 SPACER Th. 2 mm. As an alternative	-	1	Enquire
-	169535	SPACER Th. 2,2 mm.	169535 SPACER Th. 2,2 mm. As an alternative	-	1	Enquire
-	169513	DIFFERENTIAL COVER	169513 DIFFERENTIAL COVER Valid after stock exhaustion of 162586	-	1	Enquire
-	163806	SPACER Th. 3,5 mm.	163806 SPACER Th. 3,5 mm. As an alternative	-	1	Enquire
-	163807	SPACER Th. 3,7 mm.	163807 SPACER Th. 3,7 mm. As an alternative	-	1	Enquire
-	151633	SPACER Th. 2,9 mm.	151633 SPACER Th. 2,9 mm. As an alternative	-	1	Enquire
-	151634	SPACER Th. 3,1 mm.	151634 SPACER Th. 3,1 mm. As an alternative	-	1	Enquire
-	151635	SPACER Th. 3,3 mm.	151635 SPACER Th. 3,3 mm. As an alternative	-	1	Enquire
-	168140	BEVEL GEAR	168140 BEVEL GEAR Not as spare part now / With the complete crown wheel / and pinion 169792	-	1	Enquire
-	169792	COMPLETE CROWN WHEEL AND PINION R.10/37	169792 COMPLETE CROWN WHEEL AND PINION R.10/37 PINION R.10/37	-	1	Enquire
1	169792	COMPLETE CROWN WHEEL AND PINION R.10/37	169792 COMPLETE CROWN WHEEL AND PINION R.10/37 Not as spare part now / With the complete crown wheel / and pinion 169544	-	1	Enquire
2	161112	COMPLETE DIFFERENTIAL	161112 COMPLETE DIFFERENTIAL	-	1	Enquire
3	125390	Bearing for differential support	125390 Bearing for differential support	-	1	Enquire
4	223916	Screw	223916 Screw	-	12	Enquire
5	161355	FLEXIBLE RING	161355 FLEXIBLE RING	-	2	Enquire
6	151768	GASKET	151768 GASKET	-	1	Enquire
7	151632	SPACER Th. 2,7 mm.	151632 SPACER Th. 2,7 mm.	-	1	Enquire
8	169513	DIFFERENTIAL COVER	169513 DIFFERENTIAL COVER	-	1	Enquire
9	141509	L.H. seal ring on	141509 L.H. seal ring on	-	1	Enquire
10	12601374	WASHER	12601374 WASHER	-	11	Enquire
11	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	11	Enquire
12	161406	L.H. FLANGE	161406 L.H. FLANGE	-	1	Enquire
13	101634	Bearing for differential support for LH cover	101634 Bearing for differential support for LH cover	-	1	Enquire
14	122068	Ditto, thickness mm. 3,40	122068 Ditto, thickness mm. 3,40	-	1	Enquire
15	156473	FLEXIBLE RING	156473 FLEXIBLE RING	-	1	Enquire
16	156161	BEARING	156161 BEARING	-	1	Enquire
17	11061976	FLEXIBLE RING	11061976 FLEXIBLE RING	-	1	Enquire
18	151546	GASKET	151546 GASKET	-	1	Enquire
19	161371	R.H. FLANGE	161371 R.H. FLANGE	-	1	Enquire
20	156546	BUSHING	156546 BUSHING	-	1	Enquire
21	148500	AXLE SHAFT	148500 AXLE SHAFT	-	2	Enquire
22	222679	SHIM PLATE	222679 SHIM PLATE	-	6	Enquire
23	223916	Screw	223916 Screw	-	12	Enquire
