Ferrari F50 - LUBRICATION SYSTEM - RADIATOR, BLOW-BY SYSTEM AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
167898 AIR OIL DISAREATOR Enquire To Order
Photo Part No Description Price (each) Stock
165171 COMPLETE OIL LEVEL ROD Enquire To Order
Photo Part No Description Price (each) Stock
167052 OIL LEVEL ROD Enquire To Order
Photo Part No Description Price (each) Stock
100862 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12603874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
180585 Oil Tank Cap Gasket Enquire To Order
Photo Part No Description Price (each) Stock
153928 OIL PLUG Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
167171 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12034574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
161619 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
128016 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
165557 RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
163067 PIPE FROM R.H. AIRCHAMBERS Enquire To Order
Photo Part No Description Price (each) Stock
898271 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
162767 UNION Enquire To Order
Photo Part No Description Price (each) Stock
162799 HOSE FROM RADIATOR TO SEPARETOR Enquire To Order
Photo Part No Description Price (each) Stock
159976 OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
64164400 SMALL BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
64164500 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
12648925 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
161726 COMPLETE ELECTROFAN Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11635721 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
167475 TEMPERATURE SWITCH 110° - 100° C Enquire To Order
Photo Part No Description Price (each) Stock
162824 TUBE TO RIADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12639704 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
162827 PIPE FROM TANK TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
16100921 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12604474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
163631 OIL RETURN TUBE Enquire To Order
Photo Part No Description Price (each) Stock
163630 OIL DELIVERY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
134988 UNION Enquire To Order
Photo Part No Description Price (each) Stock
10261460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
166939 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar Enquire To Order
Photo Part No Description Price (each) Stock
163069 3 WAY VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
166940 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
168456 RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
64690300 RADIATOR PROTECTION NET Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
62765800 ANTI-VIBRATIONS Enquire To Order
Photo Part No Description Price (each) Stock
167405 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
862084 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
140071 O-Ring Enquire To Order
View All

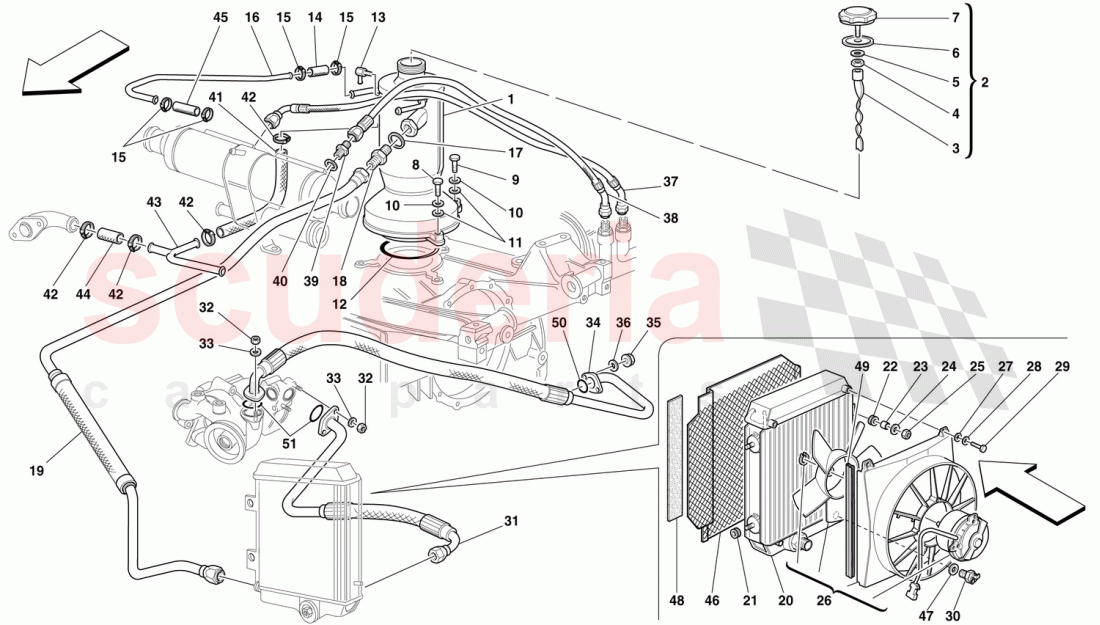

LUBRICATION SYSTEM - RADIATOR, BLOW-BY SYSTEM AND PIPES of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 145471
PIPE FROM L.H. AIRCHAMBERS 		- 1 Enquire
1 167898
AIR OIL DISAREATOR 		- 1 Enquire
2 165171
COMPLETE OIL LEVEL ROD 		- 1 Enquire
3 167052
OIL LEVEL ROD 		- 1 Enquire
4 100862
NUT 		- 1 Enquire
5 12603874
WASHER 		- 1 Enquire
6 180585
Oil Tank Cap Gasket 		- 1 Enquire
7 153928
OIL PLUG 		- 1 Enquire
8 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 2 Enquire
9 167171
SCREW 		- 1 Enquire
10 12034574
WASHER 		- 3 Enquire
11 12638524
WASHER 		- 3 Enquire
12 161619
GASKET 		- 1 Enquire
13 128016
CONNECTOR 		- 1 Enquire
14 165557
RUBBER HOSE 		- 2 Enquire
15 262111
JUBILEE CLAMP 		- 6 Enquire
16 163067
PIPE FROM R.H. AIRCHAMBERS 		- 1 Enquire
17 898271
GASKET 		- 1 Enquire
18 162767
UNION 		- 1 Enquire
19 162799
HOSE FROM RADIATOR TO SEPARETOR
SEPARETOR 		- 1 Enquire
20 159976
OIL RADIATOR 		- 1 Enquire
21 812273
CABLE GROMMET 		- 2 Enquire
22 64164400
SMALL BLOCK 		- 2 Enquire
23 64164500
SPACER 		- 2 Enquire
24 12648925
WASHER 		- 2 Enquire
25 14059290
FLANGED NUT M6 		- 2 Enquire
26 161726
COMPLETE ELECTROFAN 		- 1 Enquire
27 12639724
WASHER 		- 4 Enquire
28 12601374
WASHER 		- 4 Enquire
29 11635721
SCREW 		- 4 Enquire
30 167475
TEMPERATURE SWITCH 110° - 100° C 		- 1 Enquire
31 162824
TUBE TO RIADIATOR 		- 1 Enquire
32 14059290
FLANGED NUT M6 		- 4 Enquire
33 12639704
WASHER 		- 4 Enquire
34 162827
PIPE FROM TANK TO PUMP 		- 1 Enquire
35 16100921
NUT 		- 2 Enquire
36 12604474
WASHER 		- 2 Enquire
37 163631
OIL RETURN TUBE 		- 1 Enquire
38 163630
OIL DELIVERY TUBE 		- 1 Enquire
39 134988
UNION 		- 2 Enquire
40 10261460
GASKET 		- 2 Enquire
41 166939
PIPE 		- 1 Enquire
42 13000490
Screw Collar 		- 6 Enquire
43 163069
3 WAY VENT PIPE 		- 1 Enquire
44 166940
SLEEVE 		- 2 Enquire
45 168456
RUBBER HOSE 		- 2 Enquire
46 64690300
RADIATOR PROTECTION NET 		- 1 Enquire
47 10280060
WASHER COPPER D14. 20 X 1.5 		- 1 Enquire
48 62765800
ANTI-VIBRATIONS 		- 2 Enquire
49 167405
GASKET 		- 2 Enquire
50 862084
GASKET 		- 1 Enquire
51 140071
O-Ring 		- 2 Enquire
