Ferrari F50 - R.H. CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
169540 COMPLETE R.H. CYLINDERS HEAD Enquire To Order
Photo Part No Description Price (each) Stock
169540 COMPLETE R.H. CYLINDERS HEAD Enquire To Order
Photo Part No Description Price (each) Stock
159295 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
13453724 STUD Enquire To Order
Photo Part No Description Price (each) Stock
133216 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12638621 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13516924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
161439 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
65928500 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
151476 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
109478 Sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
152439 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10260060 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
154215 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
144860 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
13522070 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
166684 UNION Enquire To Order
Photo Part No Description Price (each) Stock
10979414 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11181874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11199274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
159863 UNION Enquire To Order
Photo Part No Description Price (each) Stock
159871 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock

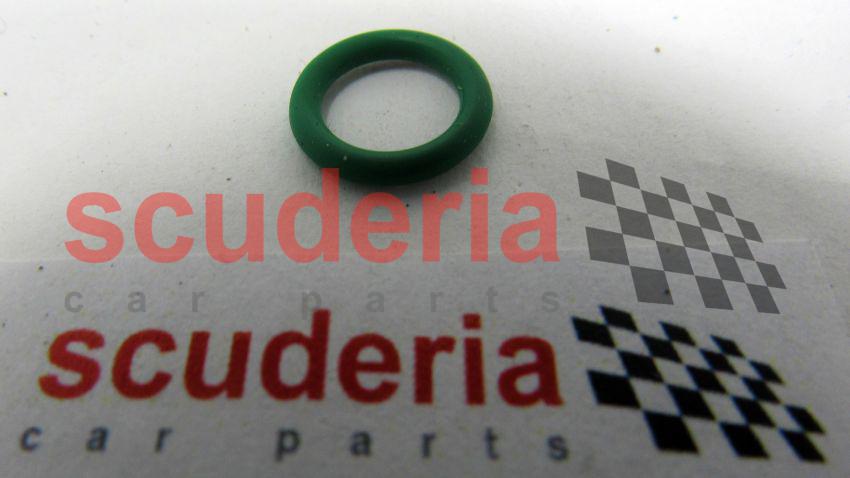

134704 O-RING Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock

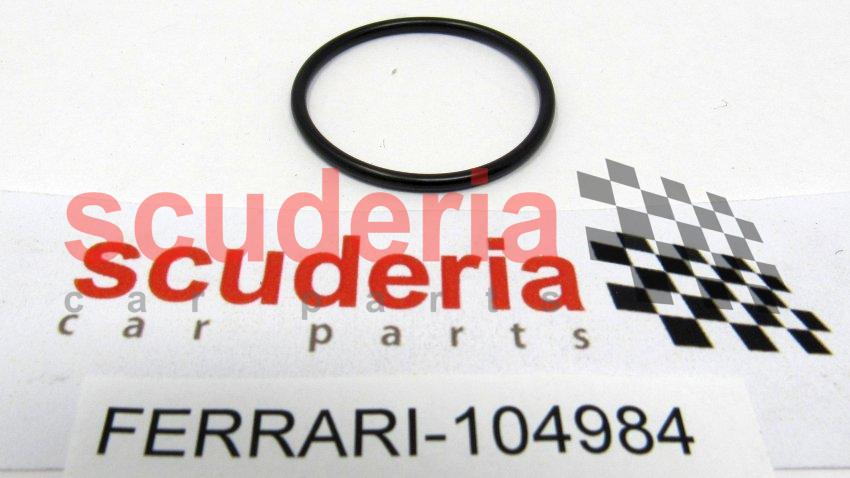

104984 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14305324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock

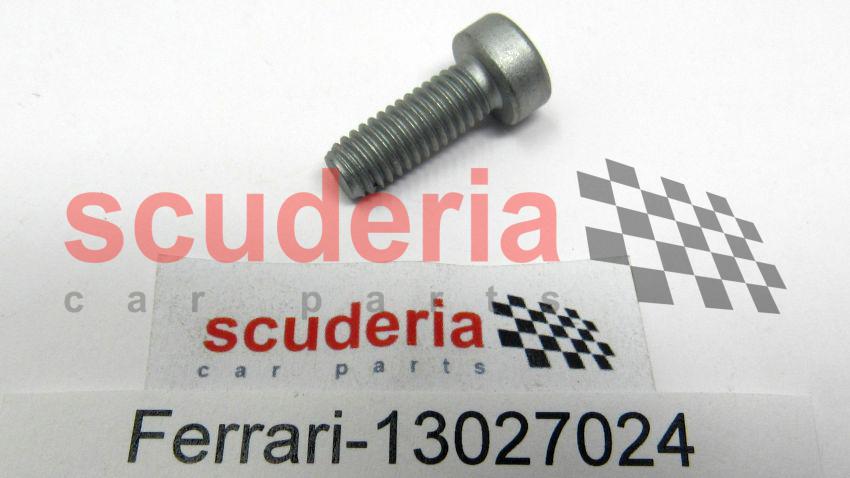

13027024 SCREW M6 X 16MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
149107 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
167917 STUD Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12648224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
149216 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
169237 WASHER Enquire To Order
View All

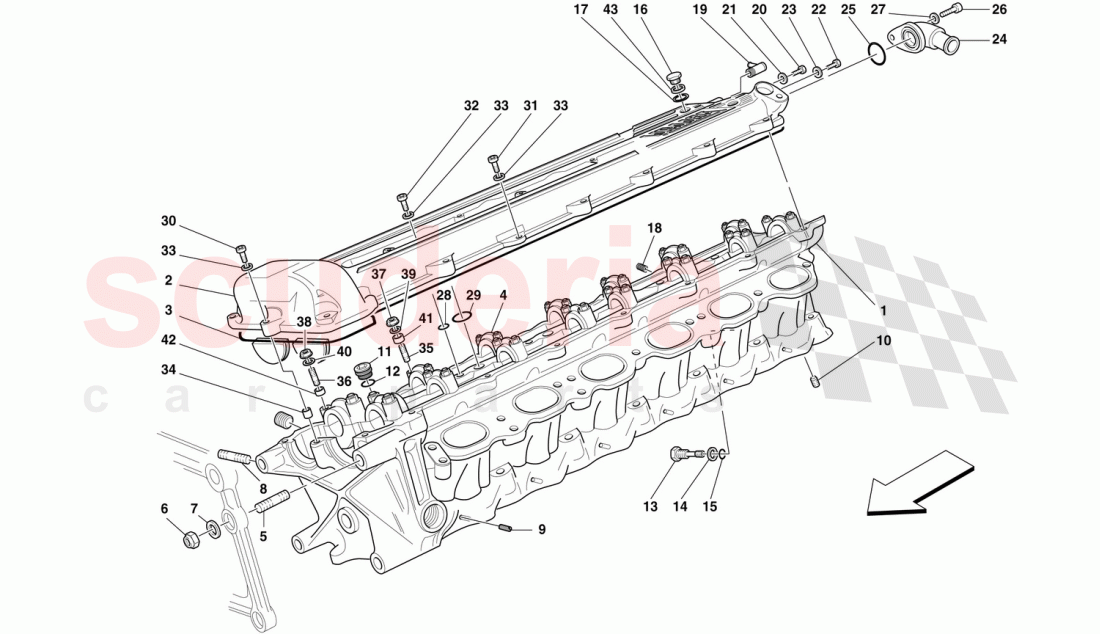

R.H. CYLINDER HEAD of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 10282660
GASKET 		- 2 Enquire
- 169540
COMPLETE R.H. CYLINDERS HEAD 		- 1 Enquire
1 169540
COMPLETE R.H. CYLINDERS HEAD
Not as spare part / With the complete cylinders head 		- 1 Enquire
2 169540
COMPLETE R.H. CYLINDERS HEAD
Not as spare part / With the complete cylinders head 		- 1 Enquire
3 159295
GASKET 		- 1 Enquire
5 13453724
STUD 		- 4 Enquire
6 133216
NUT 		- 4 Enquire
7 12638621
WASHER 		- 4 Enquire
8 13516924
STUD BOLT 		- 12 Enquire
9 161439
THREADED PLUG 		- 6 Enquire
10 65928500
THREADED PLUG 		- 2 Enquire
11 151476
PLUG 		- 7 Enquire
12 109478
Sealing ring 		- 7 Enquire
13 152439
PLUG 		- 1 Enquire
14 10260060
Gasket 		- 1 Enquire
15 154215
GASKET 		- 1 Enquire
16 144860
PLUG 		- 2 Enquire
17 10298460
GASKET
Not as spare part now for "F50" / Replaced by 10282660 		- 2 Enquire
18 13522070
THREADED INSERT 		- 2 Enquire
19 166684
UNION 		- 1 Enquire
20 10979414
SCREW 		- 1 Enquire
21 11181874
WASHER 		- 1 Enquire
22 10977524
SCREW 		- 1 Enquire
23 11199274
WASHER 		- 1 Enquire
24 159863
UNION 		- 1 Enquire
25 159871
SEAL RING 		- 1 Enquire
26 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 1 Enquire
27 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
28 134704
O-RING
ARRIVING SOON 		- 6 Enquire
29 104984
O-Ring 		- 6 Enquire
30 231620
SCREW 		- 17 Enquire
31 14305324
SCREW 		- 1 Enquire
32 13027024
SCREW M6 X 16MM 		- 6 Enquire
33 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 24 Enquire
34 149107
DOWEL 		- 2 Enquire
35 13541524
STUD BOLT 		- 26 Enquire
36 167917
STUD 		- 4 Enquire
37 14059290
FLANGED NUT M6 		- 26 Enquire
38 14040711
NUT M8 FLANGED 		- 4 Enquire
39 12648224
WASHER 		- 26 Enquire
40 12638524
WASHER 		- 4 Enquire
41 102725
CENTERING DOWEL 		- 26 Enquire
42 149216
DOWEL 		- 4 Enquire
43 169237
WASHER 		- 2 Enquire
