Ferrari F50 - CRANKCASE

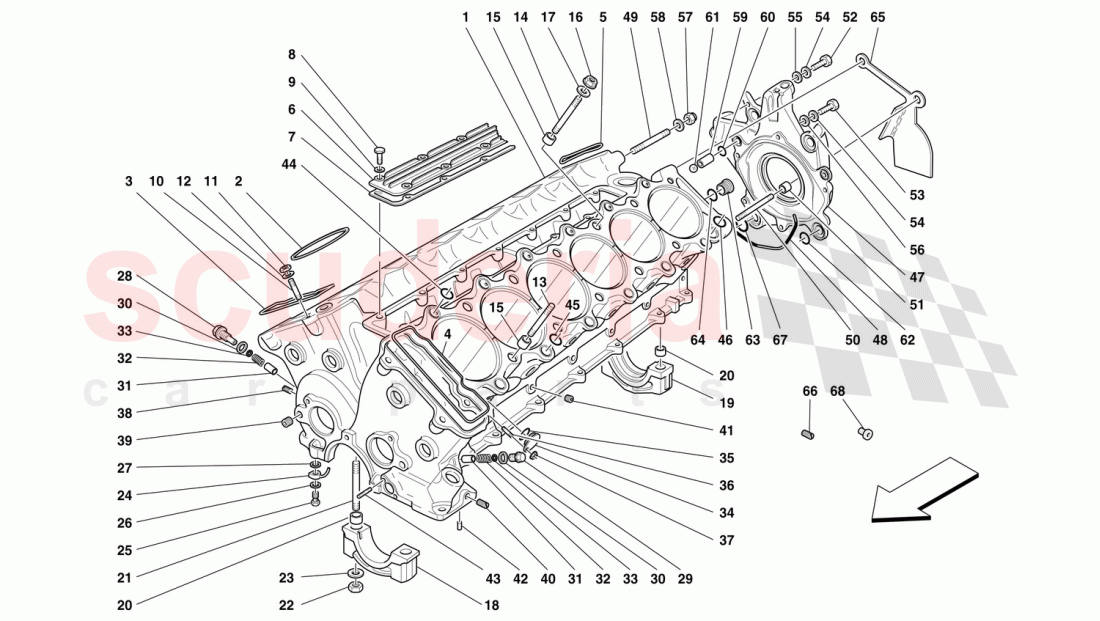

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	169538	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159144	COOPERS SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154035	R.H. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154030	L.H. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150110	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158073	WATER DUCT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158079	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154072	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154073	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149995	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148093	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169538	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169538	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159196	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159198	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103841	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159197	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149454	NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149453	SCREW FOR NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154176	R.H. PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152569	L.H. PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149520	SHUTTER PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149519	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152570	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149105	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149106	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161439	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14324811	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65928500	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326050	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10334520	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152270	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123475	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134232	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159192	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171948	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254979	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13450234	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125537	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103044	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133216	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149112	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123475	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150557	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132248	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149113	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164281	L.H. PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269150	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165962	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	164280	R.H. PLATE	164280 R.H. PLATE	-	1	Enquire
-	169538	COMPLETE CRANKCASE	169538 COMPLETE CRANKCASE	-	1	Enquire
1	169538	COMPLETE CRANKCASE	169538 COMPLETE CRANKCASE Not as spare part / With complete crankcase	-	1	Enquire
2	159144	COOPERS SEAL RING	159144 COOPERS SEAL RING	-	12	Enquire
3	154035	R.H. GASKET	154035 R.H. GASKET	-	1	Enquire
4	154030	L.H. GASKET	154030 L.H. GASKET	-	1	Enquire
5	150110	GASKET	150110 GASKET	-	2	Enquire
6	158073	WATER DUCT COVER	158073 WATER DUCT COVER	-	1	Enquire
7	158079	GASKET	158079 GASKET	-	1	Enquire
8	10902424	SCREW	10902424 SCREW	-	14	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	14	Enquire
10	13516824	STUD BOLT	13516824 STUD BOLT	-	4	Enquire
11	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
12	12604474	WASHER	12604474 WASHER	-	4	Enquire
13	154072	STUD	154072 STUD Exhaust side	-	14	Enquire
14	154073	STUD	154073 STUD Suction side	-	14	Enquire
15	149995	DOWEL	149995 DOWEL	-	4	Enquire
16	148093	NUT	148093 NUT	-	28	Enquire
17	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	28	Enquire
18	169538	COMPLETE CRANKCASE	169538 COMPLETE CRANKCASE CAP / Not as spare part / With complete crankcase	-	6	Enquire
19	169538	COMPLETE CRANKCASE	169538 COMPLETE CRANKCASE Not as spare part / With complete crankcase	-	1	Enquire
20	159196	DOWEL	159196 DOWEL	-	14	Enquire
21	159198	STUD	159198 STUD	-	14	Enquire
22	6103841	NUT	6103841 NUT	-	14	Enquire
23	159197	WASHER	159197 WASHER	-	14	Enquire
24	149454	NOZZLE	149454 NOZZLE	-	12	Enquire
25	149453	SCREW FOR NOZZLE	149453 SCREW FOR NOZZLE	-	12	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	12	Enquire
27	10297760	GASKET	10297760 GASKET	-	12	Enquire
28	154176	R.H. PLUG	154176 R.H. PLUG	-	1	Enquire
29	152569	L.H. PLUG	152569 L.H. PLUG	-	1	Enquire
30	10261460	GASKET	10261460 GASKET	-	2	Enquire
31	149520	SHUTTER PISTON	149520 SHUTTER PISTON	-	2	Enquire
32	149519	SPRING	149519 SPRING	-	2	Enquire
33	152570	SPACER	152570 SPACER	-	2	Enquire
34	149105	PLUG	149105 PLUG	-	12	Enquire
35	134233	O-RING	134233 O-RING	-	12	Enquire
36	149106	STUD	149106 STUD	-	12	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
38	161439	THREADED PLUG	161439 THREADED PLUG	-	2	Enquire
39	14324811	THREADED PLUG	14324811 THREADED PLUG	-	2	Enquire
40	65928500	THREADED PLUG	65928500 THREADED PLUG	-	1	Enquire
41	14326050	CAP	14326050 CAP	-	7	Enquire
42	10334520	PIN	10334520 PIN	-	2	Enquire
43	152270	STUD	152270 STUD	-	2	Enquire
44	123475	GASKET	123475 GASKET	-	12	Enquire
45	134232	O-RING	134232 O-RING	-	12	Enquire
46	134233	O-RING	134233 O-RING	-	2	Enquire
47	159192	REAR COVER	159192 REAR COVER	-	1	Enquire
48	171948	GASKET	171948 GASKET	-	1	Enquire
49	254979	STUD BOLT	254979 STUD BOLT	-	2	Enquire
50	13450234	STUD	13450234 STUD	-	1	Enquire
51	125537	Dowel	125537 Dowel	-	2	Enquire
52	10902224	SCREW	10902224 SCREW	-	1	Enquire
53	231625	SCREW	231625 SCREW	-	7	Enquire
54	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
55	103044	WASHER	103044 WASHER	-	1	Enquire
56	10519424	WASHER	10519424 WASHER	-	7	Enquire
57	133216	NUT	133216 NUT	-	4	Enquire
58	12642424	WASHER	12642424 WASHER	-	4	Enquire
59	149112	DOWEL	149112 DOWEL	-	2	Enquire
60	123475	GASKET	123475 GASKET	-	2	Enquire
61	150557	BALL	150557 BALL	-	2	Enquire
62	132248	O-RING	132248 O-RING	-	3	Enquire
63	149113	PLUG	149113 PLUG Not as spare part now	-	2	Enquire
64	134233	O-RING	134233 O-RING Not as spare part now	-	2	Enquire
65	164281	L.H. PLATE	164281 L.H. PLATE	-	1	Enquire
66	10269150	THREADED PLUG	10269150 THREADED PLUG	-	1	Enquire
67	140071	O-Ring	140071 O-Ring	-	1	Enquire
68	165962	PLUG	165962 PLUG	-	2	Enquire
