TIMING - CONTROLS of Ferrari Ferrari F50

View All

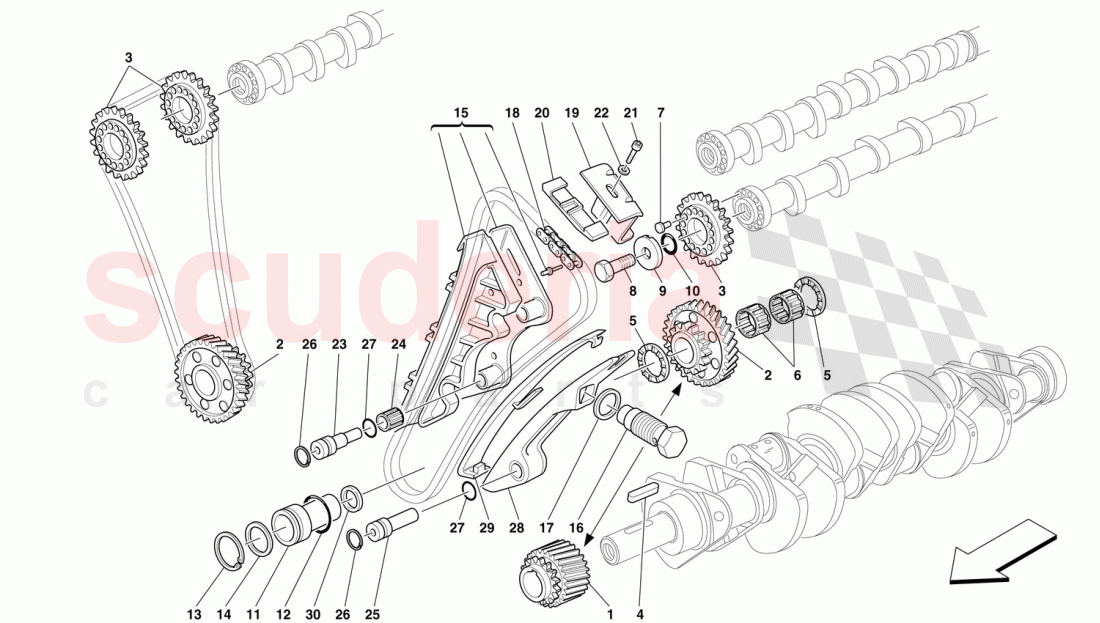

Ferrari F50 - TIMING - CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	165976	CONTROL TIMING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165919	GEAR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154171	TOOTHED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159835	KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163016	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165788	ROLLER CASING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106203	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146540	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114808	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162887	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111000	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11059776	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166446	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158173	GUIDE SHOE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152502	CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151784	TIMING CONTROL CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158175	UPPER GUIDE SHOE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158176	UPPER SLIDE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152640	PIN FOR FIXED GUIDE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154172	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152639	PIN FOR MOBILE GUIDE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11057576	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158077	MOBILE GUIDE SHOE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158078	MOBILE GUIDE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169203	SPACER WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	169207	SPACER WASHER	169207 SPACER WASHER Th. mm. 1,50	-	2	Enquire
-	169205	SPACER WASHER	169205 SPACER WASHER Th. mm. 1,40	-	2	Enquire
-	170801	SPACER WASHER	170801 SPACER WASHER Th. mm. 1,425	-	2	Enquire
-	169206	SPACER WASHER	169206 SPACER WASHER Th. mm. 1,45	-	2	Enquire
-	170802	SPACER WASHER	170802 SPACER WASHER Th. mm. 1,475	-	2	Enquire
-	170799	SPACER WASHER	170799 SPACER WASHER Th. mm. 1,325	-	2	Enquire
-	169204	SPACER WASHER	169204 SPACER WASHER Th. mm. 1,35	-	2	Enquire
-	170800	SPACER WASHER	170800 SPACER WASHER Th. mm. 1,375	-	2	Enquire
-	164348	SPACER WASHER	164348 SPACER WASHER Th. mm. 0,60	-	2	Enquire
-	164297	SPACER WASHER	164297 SPACER WASHER Th. mm. 0,50	-	2	Enquire
-	164347	SPACER WASHER	164347 SPACER WASHER Th. mm. 0,55	-	2	Enquire
1	165976	CONTROL TIMING GEAR	165976 CONTROL TIMING GEAR	-	1	Enquire
2	165919	GEAR ASSEMBLY	165919 GEAR ASSEMBLY	-	2	Enquire
3	154171	TOOTHED WHEEL	154171 TOOTHED WHEEL	-	4	Enquire
4	159835	KEY	159835 KEY	-	1	Enquire
5	163016	ROLLER CAGE	163016 ROLLER CAGE	-	4	Enquire
6	165788	ROLLER CASING	165788 ROLLER CASING	-	4	Enquire
7	106203	CENTERING DOWEL	106203 CENTERING DOWEL	-	4	Enquire
8	146540	SCREW	146540 SCREW	-	4	Enquire
9	117274	WASHER	117274 WASHER	-	4	Enquire
10	114808	O-Ring	114808 O-Ring	-	4	Enquire
11	162887	PIN	162887 PIN	-	2	Enquire
12	111000	O.R. GASKET	111000 O.R. GASKET	-	2	Enquire
13	11059776	Seeger Ring	11059776 Seeger Ring	-	2	Enquire
14	166446	SPACER WASHER	166446 SPACER WASHER Th. mm. 0,45	-	2	Enquire
15	158173	GUIDE SHOE ASSEMBLY	158173 GUIDE SHOE ASSEMBLY	-	2	Enquire
16	152502	CHAIN TENSIONER	152502 CHAIN TENSIONER	-	2	Enquire
17	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	-	2	Enquire
18	151784	TIMING CONTROL CHAIN	151784 TIMING CONTROL CHAIN	-	2	Enquire
19	158175	UPPER GUIDE SHOE BASE	158175 UPPER GUIDE SHOE BASE	-	2	Enquire
20	158176	UPPER SLIDE GUIDE	158176 UPPER SLIDE GUIDE	-	2	Enquire
21	14304124	SCREW	14304124 SCREW	-	4	Enquire
22	12604178	Washer	12604178 Washer	-	4	Enquire
23	152640	PIN FOR FIXED GUIDE SHOE	152640 PIN FOR FIXED GUIDE SHOE	-	4	Enquire
24	154172	COMPENSATOR RING	154172 COMPENSATOR RING	-	4	Enquire
25	152639	PIN FOR MOBILE GUIDE SHOE	152639 PIN FOR MOBILE GUIDE SHOE	-	2	Enquire
26	11057576	SEEGER RING	11057576 SEEGER RING	-	6	Enquire
27	137192	O-RING	137192 O-RING	-	7	Enquire
28	158077	MOBILE GUIDE SHOE BASE	158077 MOBILE GUIDE SHOE BASE	-	2	Enquire
29	158078	MOBILE GUIDE SHOE	158078 MOBILE GUIDE SHOE	-	2	Enquire
30	169203	SPACER WASHER	169203 SPACER WASHER Th. mm. 1,30	-	2	Enquire
