Name: OIL SUMP AND COVER
Rating: 4.9 (1 reviews)

OIL SUMP AND COVER of Ferrari Ferrari F50

View All

Ferrari F50 - OIL SUMP AND COVER

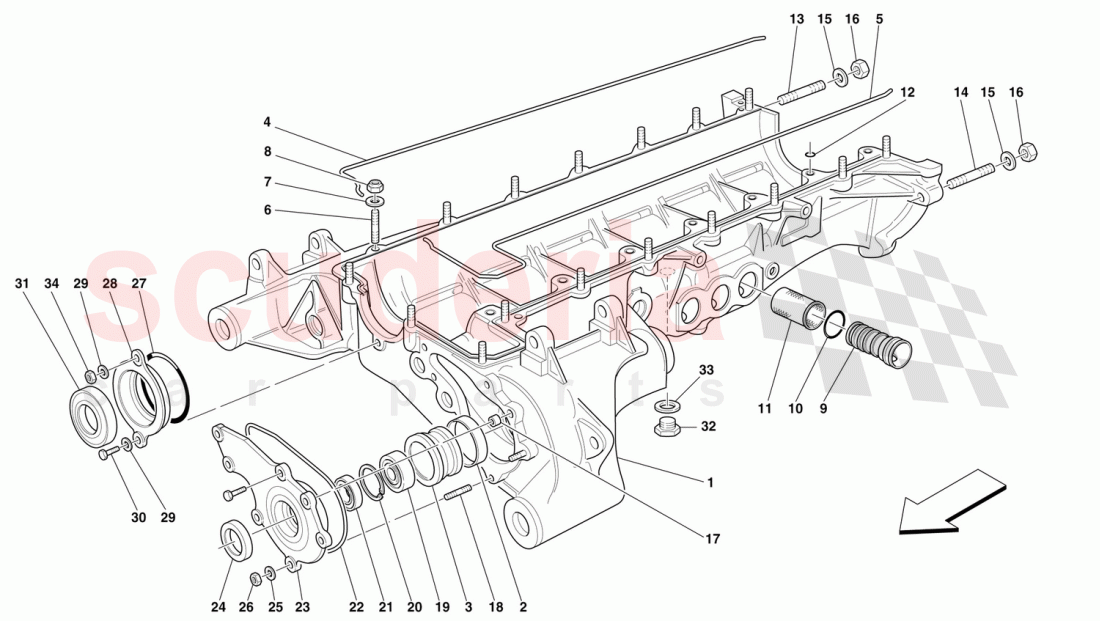

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	169542	COMPLETE OIL SUMP	$3,831.28	To Order

Photo	Part No	Description	Price (each)	Stock
	154597	COMPENSATOR RING	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	154535	BUSHING	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	154037	GASKET	$21.04	To Order

Photo	Part No	Description	Price (each)	Stock
	154719	GASKET	$24.07	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149649	RECOVERY SUCTION PIPE	$244.79	To Order

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149650	OIL SUCTION FILTER	$65.84	To Order

Photo	Part No	Description	Price (each)	Stock
	123475	GASKET	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13454034	STUD	$14.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13454234	STUD	$14.85	To Order

Photo	Part No	Description	Price (each)	Stock
	12642424	WASHER	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	161139	CENTERING DOWEL	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	13540724	STUD BOLT	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	149513	BEARING	$11.48	To Order

Photo	Part No	Description	Price (each)	Stock
	11381076	SEEGER RING	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	154390	BEARING	$9.79	To Order

Photo	Part No	Description	Price (each)	Stock
	154393	GASKET	$8.54	To Order

Photo	Part No	Description	Price (each)	Stock
	154391	FRONT SUMP COVER	$529.50	To Order

Photo	Part No	Description	Price (each)	Stock
	154750	GASKET	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	$2.66	To Order

Photo	Part No	Description	Price (each)	Stock
	154757	GASKET	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	156924	COVER	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	138680	Sealing ring	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	$0.91	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	169542	COMPLETE OIL SUMP	169542 COMPLETE OIL SUMP	$3,831.28	1
2	154597	COMPENSATOR RING	154597 COMPENSATOR RING	$5.75	1
3	154535	BUSHING	154535 BUSHING	$336.95	1
4	154037	GASKET	154037 GASKET	$21.04	1
5	154719	GASKET	154719 GASKET	$24.07	1
6	13516824	STUD BOLT	13516824 STUD BOLT	$0.47 MSRP: ~~1.25~~ (62.4% off)	17
7	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	$0.06 MSRP: ~~0.10~~ (40% off)	17
8	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	17
9	149649	RECOVERY SUCTION PIPE	149649 RECOVERY SUCTION PIPE	$244.79	3
10	133938	O-RING IN STOCK	133938 O-RING IN STOCK	$0.57 MSRP: ~~1.20~~ (52.5% off)	3
11	149650	OIL SUCTION FILTER	149650 OIL SUCTION FILTER	$65.84	3
12	123475	GASKET IN STOCK	123475 GASKET IN STOCK	$3.81 MSRP: ~~4.18~~ (8.9% off)	7
13	13454034	STUD	13454034 STUD	$14.85	2
14	13454234	STUD	13454234 STUD	$14.85	2
15	12642424	WASHER	12642424 WASHER	$0.70	4
16	12574521	Nyloc Nut IN STOCK	12574521 Nyloc Nut IN STOCK	$0.92 MSRP: ~~2.00~~ (54% off)	4
17	161139	CENTERING DOWEL	161139 CENTERING DOWEL	$4.64	2
18	13540724	STUD BOLT	13540724 STUD BOLT	$0.47	4
19	149513	BEARING	149513 BEARING	$11.48	1
20	11381076	SEEGER RING	11381076 SEEGER RING	$1.65	1
21	154390	BEARING	154390 BEARING	$9.79	1
22	154393	GASKET	154393 GASKET	$8.54	1
23	154391	FRONT SUMP COVER	154391 FRONT SUMP COVER	$529.50	1
24	154750	GASKET	154750 GASKET	$20.84	1
25	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
26	312592	NUT	312592 NUT	$2.66	4
27	154757	GASKET	154757 GASKET	$1.43	1
28	156924	COVER	156924 COVER	$240.67	1
29	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	2
30	10977524	SCREW	10977524 SCREW	$0.15	1
31	138680	Sealing ring	138680 Sealing ring	$43.31 MSRP: ~~53.82~~ (19.5% off)	1
32	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.89	1
33	10261860	GASKET IN STOCK	10261860 GASKET IN STOCK	$0.45 MSRP: ~~1.00~~ (55% off)	1
34	134041	NUT IN STOCK	134041 NUT IN STOCK	$0.91	1

Oil Sump And Cover

Ferrari F50

Ferrari F50 - OIL SUMP AND COVER
