Find Your Part

View All

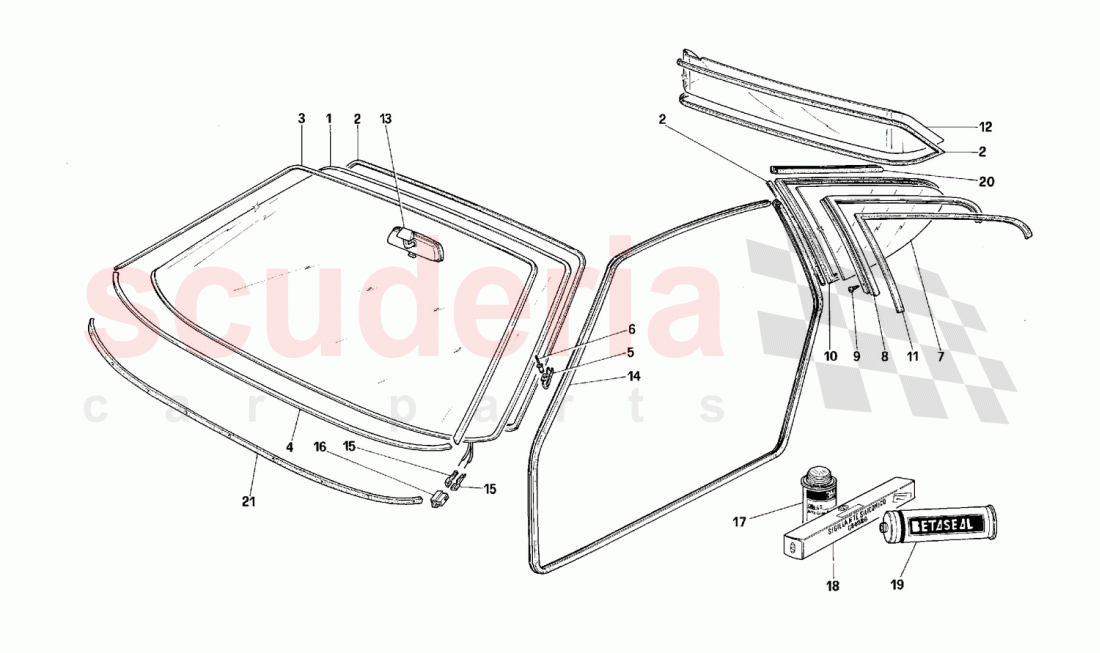

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62463010	Windscreen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	360508611	WINDOW-WELD SEALANT 3M TAPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61673800	Upper frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61673900	Lower frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40208209	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60560800	Rivet l. 3,2 x l. 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62397700	L.H. rear glass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62478100	L.H. frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687278	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61385300	Gasket for R.H. and L.H. glass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61452600	Left Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62397300	Rear window	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60032703	Inside rear view mirror	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62662400	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20164505	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60748500	Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60246600	Prymer for glass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60156106	Cartridge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66091400	SEALANT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62742900	R.H. gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61653600	Finisher thread	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62743000	L.H. gasket	62743000 L.H. gasket	-	1	Enquire
-	61452500	Right gasket	61452500 Right gasket	-	1	Enquire
-	62478000	R.H. frame	62478000 R.H. frame	-	1	Enquire
-	62397600	R.H. rear glass	62397600 R.H. rear glass	-	1	Enquire
1	62463010	Windscreen	62463010 Windscreen	-	1	Enquire
2	360508611	WINDOW-WELD SEALANT 3M TAPE	360508611 WINDOW-WELD SEALANT 3M TAPE	-	3	Enquire
3	61673800	Upper frame	61673800 Upper frame	-	1	Enquire
4	61673900	Lower frame	61673900 Lower frame	-	1	Enquire
5	40208209	Spring	40208209 Spring	-	12	Enquire
6	60560800	Rivet l. 3,2 x l. 12	60560800 Rivet l. 3,2 x l. 12	-	12	Enquire
7	62397700	L.H. rear glass	62397700 L.H. rear glass	-	1	Enquire
8	62478100	L.H. frame	62478100 L.H. frame	-	1	Enquire
9	15687278	Screw	15687278 Screw	-	4	Enquire
10	61385300	Gasket for R.H. and L.H. glass	61385300 Gasket for R.H. and L.H. glass	-	2	Enquire
11	61452600	Left Gasket	61452600 Left Gasket	-	1	Enquire
12	62397300	Rear window	62397300 Rear window	-	1	Enquire
13	60032703	Inside rear view mirror	60032703 Inside rear view mirror	-	1	Enquire
14	62662400	Gasket	62662400 Gasket	-	2	Enquire
15	20164505	Pin	20164505 Pin	-	2	Enquire
16	60748500	Block	60748500 Block	-	1	Enquire
17	60246600	Prymer for glass	60246600 Prymer for glass	-	1	Enquire
18	60156106	Cartridge	60156106 Cartridge	-	2	Enquire
19	66091400	SEALANT	66091400 SEALANT	-	1	Enquire
20	62742900	R.H. gasket	62742900 R.H. gasket	-	1	Enquire
21	61653600	Finisher thread	61653600 Finisher thread	-	1	Enquire
