Find Your Part

Frame - Front part of Ferrari Ferrari F40

View All

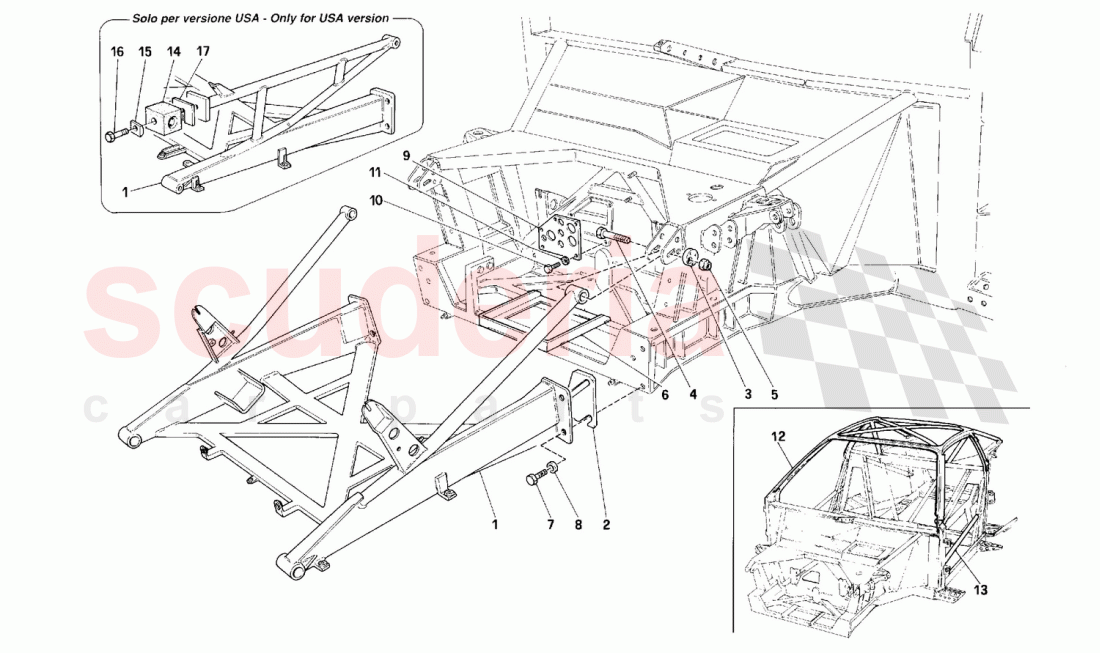

Ferrari F40 - Frame - Front part

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	136999	Front frame assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62481100	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62903800	Adjustment eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11343721	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132920	Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970721	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615779	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62385000	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62405200	Framework	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62402900	L.H. reinforcement assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62903400	Plug -Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62903500	Plate -Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62903600	Spacer (Possible mounting)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62903700	Spacer (Possible mounting)	62903700 Spacer (Possible mounting) (Possible mounting) / Valid for USA	-	4	Enquire
-	62730000	Framework	62730000 Framework Valid for USA	-	1	Enquire
-	62402800	R.H. reinforcement assy	62402800 R.H. reinforcement assy	-	1	Enquire
-	62481200	Spacer (Possible mounting)	62481200 Spacer (Possible mounting) (Possible mounting)	-	2	Enquire
-	62481300	Spacer (Possible mounting)	62481300 Spacer (Possible mounting) (Possible mounting)	-	2	Enquire
-	62384400	Front flat floor and lower dashpanel shield complete	62384400 Front flat floor and lower dashpanel shield complete dashpanel shield complete	-	-	Enquire
-	144263	Front frame assy	144263 Front frame assy Valid for USA	-	1	Enquire
1	136999	Front frame assy	136999 Front frame assy Not for USA	-	1	Enquire
2	62481100	Spacer	62481100 Spacer	-	2	Enquire
3	62903800	Adjustment eccentric	62903800 Adjustment eccentric	-	2	Enquire
4	11343721	Screw	11343721 Screw	-	2	Enquire
5	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
6	132920	Support	132920 Support	-	1	Enquire
7	15970721	SCREW	15970721 SCREW	-	6	Enquire
8	10615779	Washer	10615779 Washer	-	6	Enquire
9	62385000	Plate	62385000 Plate	-	1	Enquire
10	13272272	SCREW	13272272 SCREW	-	5	Enquire
11	10615276	WASHER	10615276 WASHER	-	5	Enquire
12	62405200	Framework	62405200 Framework Not for USA	-	1	Enquire
13	62402900	L.H. reinforcement assy	62402900 L.H. reinforcement assy	-	1	Enquire
14	62903400	Plug -Valid for USA-	62903400 Plug -Valid for USA-	-	2	Enquire
15	62903500	Plate -Valid for USA-	62903500 Plate -Valid for USA-	-	2	Enquire
16	40294308	SCREW	40294308 SCREW	-	2	Enquire
17	62903600	Spacer (Possible mounting)	62903600 Spacer (Possible mounting) (Possible mounting) / Valid for USA	-	4	Enquire
