Internal elements body -Lower and central zone- of Ferrari Ferrari F40

View All

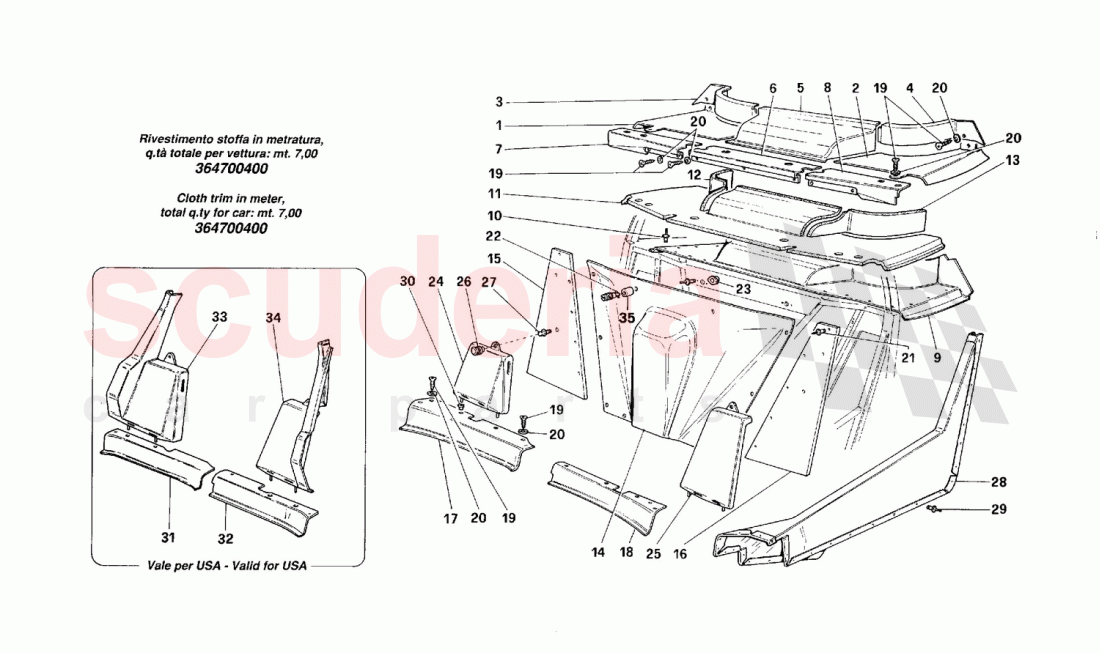

Ferrari F40 - Internal elements body -Lower and central zone-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62476400	R.H. frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62476500	L.H. frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62476800	R.H. frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62476900	L.H. frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62476200	Window plane covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62479600	Front frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62479900	R.H. front frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62480000	L.H. front frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62419100	Frame work	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61755900	POP Rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62488900	Central insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62489000	R.H. insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62489100	L.H. insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62573600	Central shield interior engine covering (with fixing pins)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62418900	R.H. shield (without covering)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62419000	L.H. shield (without covering)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62552900	R.H. lower frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62553000	L.H. lower frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15908506	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12611607	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62498300	Rivet l. 3,2 x l. 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61767700	Pin l.15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61411200	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62553200	R.H. complete control unit cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62553300	L.H. complete control unit cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60727200	FEMALE BUTTON -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60084407	Pin button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62419500	L.H. side panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62498300	Rivet l. 3,2 x l. 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62569300	Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62747300	R.H. lower frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62747400	L.H. lower frame work covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62746900	R.H. complete control unit cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62747000	L.H. complete control unit cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62471400	Bushing	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62747200	Covering -Valid for USA-	62747200 Covering -Valid for USA-	-	1	Enquire
-	62747600	Covering -Valid for USA-	62747600 Covering -Valid for USA-	-	1	Enquire
-	62747100	Covering -Valid for USA-	62747100 Covering -Valid for USA-	-	1	Enquire
-	62419400	R.H. side panel	62419400 R.H. side panel	-	1	Enquire
-	62747500	Covering -Valid for USA-	62747500 Covering -Valid for USA-	-	1	Enquire
-	62539600	Covering -Not for USA-	62539600 Covering -Not for USA-	-	1	Enquire
-	62547000	Pin l. 20	62547000 Pin l. 20	-	-	Enquire
-	62547100	Pin l. 24	62547100 Pin l. 24	-	-	Enquire
-	62539500	Covering -Not for USA-	62539500 Covering -Not for USA-	-	1	Enquire
-	62539800	Covering -Not for USA-	62539800 Covering -Not for USA-	-	1	Enquire
-	62540000	Covering	62540000 Covering	-	1	Enquire
-	62539700	Covering -Not for USA-	62539700 Covering -Not for USA-	-	1	Enquire
-	62539200	Covering	62539200 Covering	-	1	Enquire
-	62539900	Covering	62539900 Covering	-	1	Enquire
-	62503800	R.H. and L.H. covering	62503800 R.H. and L.H. covering Not for USA	-	2	Enquire
-	62748200	R.H. and L.H. covering	62748200 R.H. and L.H. covering Valid for USA	-	1	Enquire
-	62748100	R.H. front frame work covering	62748100 R.H. front frame work covering Valid for USA	-	1	Enquire
-	62748400	L.H. front frame work covering	62748400 L.H. front frame work covering Valid for USA	-	1	Enquire
-	62504100	R.H. and L.H. covering	62504100 R.H. and L.H. covering	-	2	Enquire
-	62503300	Covering	62503300 Covering	-	1	Enquire
-	62503700	Covering	62503700 Covering	-	1	Enquire
-	62758100	L.H. frame work covering	62758100 L.H. frame work covering Valid for USA	-	1	Enquire
-	62503400	R.H. and L.H. covering	62503400 R.H. and L.H. covering	-	2	Enquire
-	62758000	R.H. frame work covering	62758000 R.H. frame work covering Valid for USA	-	1	Enquire
1	62476400	R.H. frame work covering	62476400 R.H. frame work covering Not for USA	-	1	Enquire
2	62476500	L.H. frame work covering	62476500 L.H. frame work covering Not for USA	-	1	Enquire
3	62476800	R.H. frame work covering	62476800 R.H. frame work covering	-	1	Enquire
4	62476900	L.H. frame work covering	62476900 L.H. frame work covering	-	1	Enquire
5	62476200	Window plane covering	62476200 Window plane covering	-	1	Enquire
6	62479600	Front frame work covering	62479600 Front frame work covering	-	1	Enquire
7	62479900	R.H. front frame work covering	62479900 R.H. front frame work covering Not for USA	-	1	Enquire
8	62480000	L.H. front frame work covering	62480000 L.H. front frame work covering Not for USA	-	1	Enquire
9	62419100	Frame work	62419100 Frame work	-	1	Enquire
10	61755900	POP Rivet	61755900 POP Rivet	-	45	Enquire
11	62488900	Central insulation	62488900 Central insulation	-	1	Enquire
12	62489000	R.H. insulation	62489000 R.H. insulation	-	1	Enquire
13	62489100	L.H. insulation	62489100 L.H. insulation	-	1	Enquire
14	62573600	Central shield interior engine covering (with fixing pins)	62573600 Central shield interior engine covering (with fixing pins) engine covering / (with fixing pins)	-	1	Enquire
15	62418900	R.H. shield (without covering)	62418900 R.H. shield (without covering)	-	1	Enquire
16	62419000	L.H. shield (without covering)	62419000 L.H. shield (without covering)	-	1	Enquire
17	62552900	R.H. lower frame work covering	62552900 R.H. lower frame work covering Not for USA	-	1	Enquire
18	62553000	L.H. lower frame work covering	62553000 L.H. lower frame work covering Not for USA	-	1	Enquire
19	15908506	SCREW	15908506 SCREW	-	6	Enquire
20	12611607	Washer	12611607 Washer	-	6	Enquire
21	62498300	Rivet l. 3,2 x l. 30	62498300 Rivet l. 3,2 x l. 30	-	22	Enquire
22	61767700	Pin l.15	61767700 Pin l.15	-	-	Enquire
23	61411200	Clip	61411200 Clip	-	10	Enquire
24	62553200	R.H. complete control unit cover	62553200 R.H. complete control unit cover Not for USA	-	1	Enquire
25	62553300	L.H. complete control unit cover	62553300 L.H. complete control unit cover Not for USA	-	1	Enquire
26	60727200	FEMALE BUTTON -Not for USA-	60727200 FEMALE BUTTON -Not for USA-	-	2	Enquire
27	60084407	Pin button	60084407 Pin button	-	2	Enquire
28	62419500	L.H. side panel	62419500 L.H. side panel	-	1	Enquire
29	62498300	Rivet l. 3,2 x l. 30	62498300 Rivet l. 3,2 x l. 30	-	24	Enquire
30	62569300	Bushing	62569300 Bushing	-	4	Enquire
31	62747300	R.H. lower frame work covering	62747300 R.H. lower frame work covering Valid for USA	-	1	Enquire
32	62747400	L.H. lower frame work covering	62747400 L.H. lower frame work covering Valid for USA	-	1	Enquire
33	62746900	R.H. complete control unit cover	62746900 R.H. complete control unit cover Valid for USA	-	1	Enquire
34	62747000	L.H. complete control unit cover	62747000 L.H. complete control unit cover Valid for USA	-	1	Enquire
35	62471400	Bushing	62471400 Bushing	-	10	Enquire
