Doors -Sliding glass version- of Ferrari Ferrari F40

View All

Ferrari F40 - Doors -Sliding glass version-

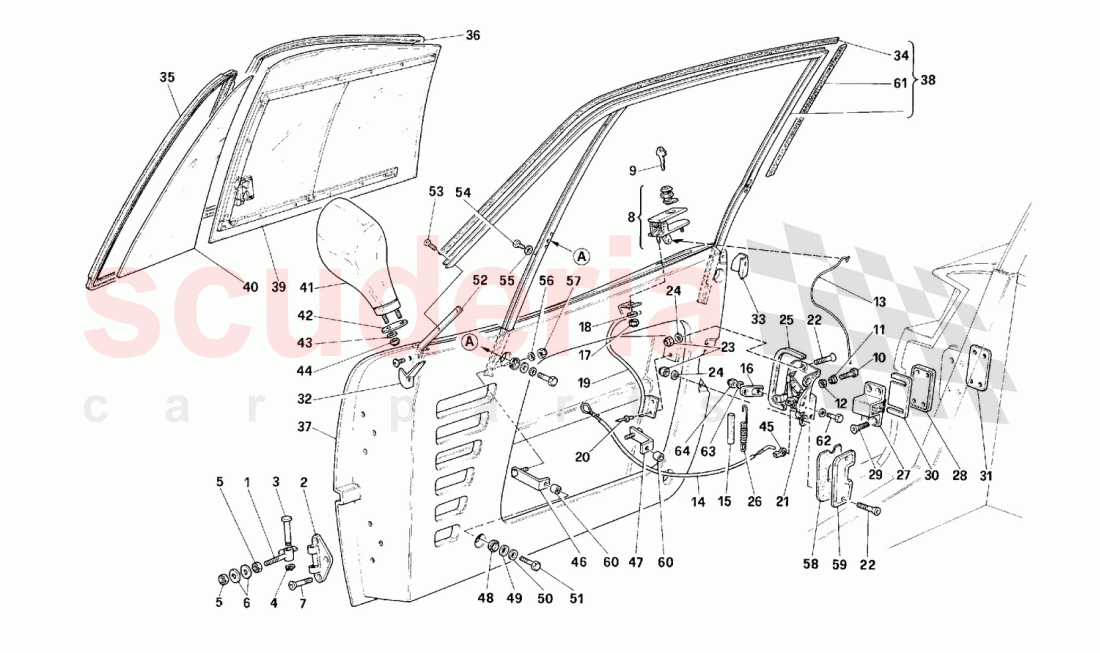

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62951300	Fixed hinge -Valid after	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62395000	Mobile hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62395100	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087675	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108051	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20298303	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95401161	Key blank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60088705	Special screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20089504	Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62495200	Cable for handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62460700	Cable for door handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62761400	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62452200	Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62498400	R.H. tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50209303	Rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20170819	R.H. lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20298303	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60566200	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60046000	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20019105	R.H. lock striker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60602400	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20287504	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60163003	Spacer (Possible mounting)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60085206	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62500600	R.H. front moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62587200	R.H. rear moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60278504	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62489800	R.H. and L.H. front gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62587100	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62598800	R.H. door -Valid till car	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000546	R.H. glass frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000542	R.H. side glass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000544	R.H. front glass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62470500	R.H. mirror	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000548	L.H. and R.H. gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40063208	CABLE RETAIN CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62587400	Front bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62587500	Rear bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60657600	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62394400	Front support R.H. frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20286704	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62762300	R.H. gasket moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62762100	R.H. lock moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62453800	Spacer (Possible mounting)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60278405	Rear gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62762000	L.H. lock moulding	62762000 L.H. lock moulding	-	1	Enquire
-	62762200	L.H. gasket moulding	62762200 L.H. gasket moulding	-	1	Enquire
-	62394500	Front support L.H. frame	62394500 Front support L.H. frame	-	1	Enquire
-	10902424	SCREW	10902424 SCREW (Possible mounting)	-	4	Enquire
-	62928400	L.H. mirror glass	62928400 L.H. mirror glass	-	1	Enquire
-	62928500	Bi-adhesive for mirror	62928500 Bi-adhesive for mirror	-	2	Enquire
-	62395900	L.H. front glass	62395900 L.H. front glass Valid from car 77089	-	1	Enquire
-	62928300	R.H. mirror glass	62928300 R.H. mirror glass	-	1	Enquire
-	62470600	L.H. mirror	62470600 L.H. mirror	-	1	Enquire
-	62587000	L.H. side glass	62587000 L.H. side glass Valid from car 77089	-	1	Enquire
-	70000545	L.H. front glass	70000545 L.H. front glass Valid till car 77088	-	1	Enquire
-	62395800	R.H. front glass	62395800 R.H. front glass Valid from car 77089	-	1	Enquire
-	62588200	L.H. glass frame	62588200 L.H. glass frame Valid from car 77089	-	1	Enquire
-	70000543	L.H. side glass (lexan)	70000543 L.H. side glass (lexan) Valid till car 77088	-	1	Enquire
-	62586900	R.H. side glass	62586900 R.H. side glass Valid from car 77089	-	1	Enquire
-	62598900	L.H. door -Valid till car	62598900 L.H. door -Valid till car Valid from car 77089	-	1	Enquire
-	70000547	L.H. glass frame	70000547 L.H. glass frame Valid till car 77088	-	1	Enquire
-	62586600	R.H. glass frame	62586600 R.H. glass frame Valid from car 77089	-	1	Enquire
-	62598900	L.H. door -Valid till car	62598900 L.H. door -Valid till car 77088 - See note	-	1	Enquire
-	62598800	R.H. door -Valid till car	62598800 R.H. door -Valid till car Valid from car 77089	-	1	Enquire
-	62500700	L.H. front moulding	62500700 L.H. front moulding	-	1	Enquire
-	62587300	L.H. rear moulding	62587300 L.H. rear moulding	-	1	Enquire
-	20019204	L.H. lock striker	20019204 L.H. lock striker	-	1	Enquire
-	62498500	L.H. tube	62498500 L.H. tube	-	1	Enquire
-	20170918	L.H. lock	20170918 L.H. lock	-	1	Enquire
-	62461100	Set of lock	62461100 Set of lock Not for USA	-	1	Enquire
-	62760000	Set of lock	62760000 Set of lock Valid for USA	-	1	Enquire
-	10791324	NUT	10791324 NUT Valid for 62951300	-	8	Enquire
-	112126	Washer	112126 Washer Valid for 62951300	-	8	Enquire
-	62951300	Fixed hinge -Valid after	62951300 Fixed hinge -Valid after depletion of 62537100	-	4	Enquire
1	62951300	Fixed hinge -Valid after	62951300 Fixed hinge -Valid after Valid till depletion	-	4	Enquire
2	62395000	Mobile hinge	62395000 Mobile hinge	-	4	Enquire
3	62395100	Pin	62395100 Pin	-	4	Enquire
4	11087675	SNAP RING	11087675 SNAP RING	-	4	Enquire
5	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8 Valid for 62537100	-	8	Enquire
6	108051	Washer	108051 Washer Valid for 62537100	-	8	Enquire
7	20298303	Screw	20298303 Screw	-	12	Enquire
9	95401161	Key blank	95401161 Key blank	-	2	Enquire
10	60088705	Special screw	60088705 Special screw	-	2	Enquire
11	20089504	Bushing	20089504 Bushing	-	2	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
13	62495200	Cable for handle	62495200 Cable for handle	-	2	Enquire
14	62460700	Cable for door handle	62460700 Cable for door handle Request also clip / no. 40063208	-	2	Enquire
15	62761400	Pipe	62761400 Pipe	-	2	Enquire
16	62452200	Lever	62452200 Lever	-	2	Enquire
17	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	4	Enquire
18	12638124	WASHER	12638124 WASHER	-	4	Enquire
19	62498400	R.H. tube	62498400 R.H. tube	-	1	Enquire
20	50209303	Rivet	50209303 Rivet	-	4	Enquire
21	20170819	R.H. lock	20170819 R.H. lock	-	1	Enquire
22	20298303	Screw	20298303 Screw	-	8	Enquire
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
24	12643724	WASHER	12643724 WASHER	-	8	Enquire
25	60566200	Gasket	60566200 Gasket	-	2	Enquire
26	60046000	Spring	60046000 Spring	-	2	Enquire
27	20019105	R.H. lock striker	20019105 R.H. lock striker	-	1	Enquire
28	60602400	Gasket	60602400 Gasket	-	2	Enquire
29	20287504	Screw	20287504 Screw	-	8	Enquire
30	60163003	Spacer (Possible mounting)	60163003 Spacer (Possible mounting) (Possible mounting)	-	2	Enquire
31	60085206	Plate	60085206 Plate	-	2	Enquire
32	62500600	R.H. front moulding	62500600 R.H. front moulding	-	1	Enquire
33	62587200	R.H. rear moulding	62587200 R.H. rear moulding	-	1	Enquire
34	60278504	Gasket	60278504 Gasket	-	2	Enquire
35	62489800	R.H. and L.H. front gasket	62489800 R.H. and L.H. front gasket	-	2	Enquire
36	62587100	Gasket	62587100 Gasket	-	2	Enquire
37	62598800	R.H. door -Valid till car	62598800 R.H. door -Valid till car 77088 - See note	-	1	Enquire
38	70000546	R.H. glass frame	70000546 R.H. glass frame Valid till car 77088	-	1	Enquire
39	70000542	R.H. side glass	70000542 R.H. side glass Valid till car 77088	-	1	Enquire
40	70000544	R.H. front glass	70000544 R.H. front glass Valid till car 77088	-	1	Enquire
41	62470500	R.H. mirror	62470500 R.H. mirror	-	1	Enquire
42	70000548	L.H. and R.H. gasket	70000548 L.H. and R.H. gasket	-	2	Enquire
43	84653800	WASHER	84653800 WASHER	-	4	Enquire
44	16104411	Selflocking nut	16104411 Selflocking nut	-	4	Enquire
45	40063208	CABLE RETAIN CLIP	40063208 CABLE RETAIN CLIP	-	2	Enquire
46	62587400	Front bracket	62587400 Front bracket	-	2	Enquire
47	62587500	Rear bracket	62587500 Rear bracket	-	2	Enquire
48	60657600	Washer	60657600 Washer	-	8	Enquire
49	12643724	WASHER	12643724 WASHER	-	8	Enquire
50	127494	WASHER	127494 WASHER	-	8	Enquire
51	81591700	SCREW	81591700 SCREW	-	8	Enquire
52	62394400	Front support R.H. frame	62394400 Front support R.H. frame	-	1	Enquire
53	20286704	Screw	20286704 Screw	-	4	Enquire
54	81591700	SCREW	81591700 SCREW	-	2	Enquire
55	127494	WASHER	127494 WASHER	-	2	Enquire
56	12643724	WASHER	12643724 WASHER	-	4	Enquire
57	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
58	62762300	R.H. gasket moulding	62762300 R.H. gasket moulding	-	1	Enquire
59	62762100	R.H. lock moulding	62762100 R.H. lock moulding	-	1	Enquire
60	62453800	Spacer (Possible mounting)	62453800 Spacer (Possible mounting) (Possible mounting)	-	4	Enquire
61	60278405	Rear gasket	60278405 Rear gasket	-	2	Enquire
62	81591700	SCREW	81591700 SCREW	-	2	Enquire
63	127494	WASHER	127494 WASHER	-	4	Enquire
64	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
