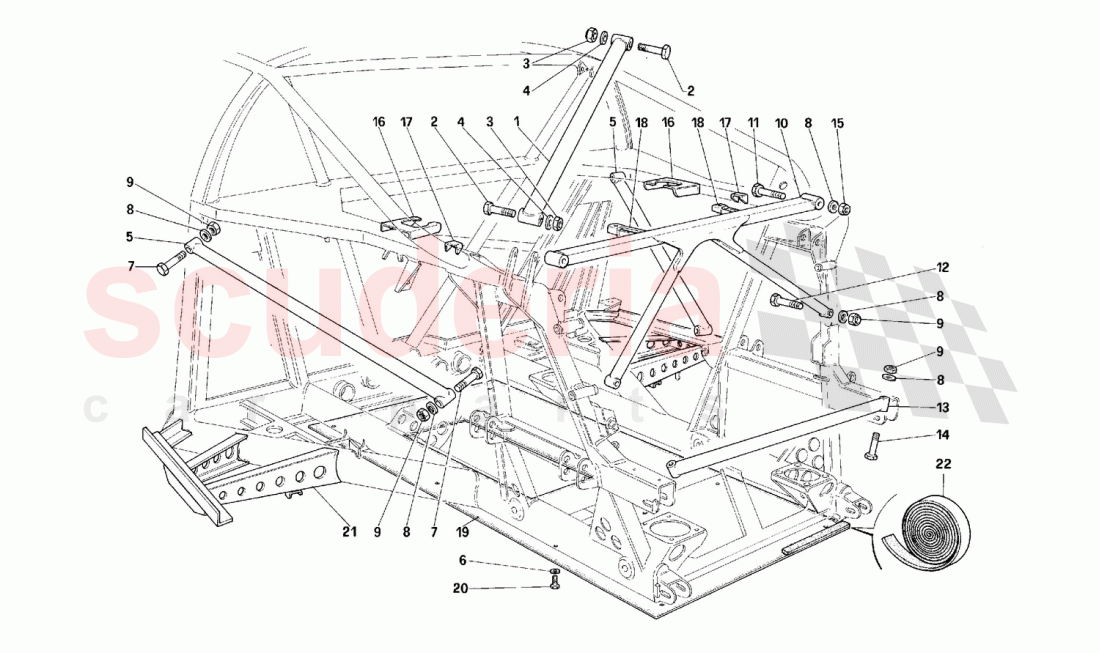

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	143374	Diagonal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11343721	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107993	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143375	R.H. and L.H. side diagonal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044521	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137541	Cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145743	Cross member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044121	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62453300	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62453500	Front exchanger supports	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137519	Rear exchanger supports	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62383900	Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60909500	ALLEN HEAD SCREW M6 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62414000	L.H. tank support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63250700	Gasket	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62413900	R.H. tank support	62413900 R.H. tank support	-	1	Enquire
1	143374	Diagonal	143374 Diagonal	-	1	Enquire
2	11343721	Screw	11343721 Screw	-	2	Enquire
3	12574521	Nyloc Nut	12574521 Nyloc Nut	-	2	Enquire
4	107993	Washer	107993 Washer	-	2	Enquire
5	143375	R.H. and L.H. side diagonal	143375 R.H. and L.H. side diagonal	-	2	Enquire
6	12648925	WASHER	12648925 WASHER	-	13	Enquire
7	16044521	SCREW	16044521 SCREW	-	4	Enquire
8	127496	WASHER	127496 WASHER	-	10	Enquire
9	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	8	Enquire
10	137541	Cross member	137541 Cross member	-	1	Enquire
11	16044424	SCREW	16044424 SCREW	-	2	Enquire
12	16044321	SCREW	16044321 SCREW	-	2	Enquire
13	145743	Cross member	145743 Cross member	-	1	Enquire
14	16044121	Screw	16044121 Screw	-	2	Enquire
15	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
16	62453300	Bracket	62453300 Bracket	-	2	Enquire
17	62453500	Front exchanger supports	62453500 Front exchanger supports	-	2	Enquire
18	137519	Rear exchanger supports	137519 Rear exchanger supports	-	2	Enquire
19	62383900	Floor	62383900 Floor	-	1	Enquire
20	60909500	ALLEN HEAD SCREW M6 X 15	60909500 ALLEN HEAD SCREW M6 X 15	-	13	Enquire
21	62414000	L.H. tank support	62414000 L.H. tank support	-	1	Enquire
22	63250700	Gasket	63250700 Gasket	-	1	Enquire
