External elements body - Front part of Ferrari Ferrari F40

View All

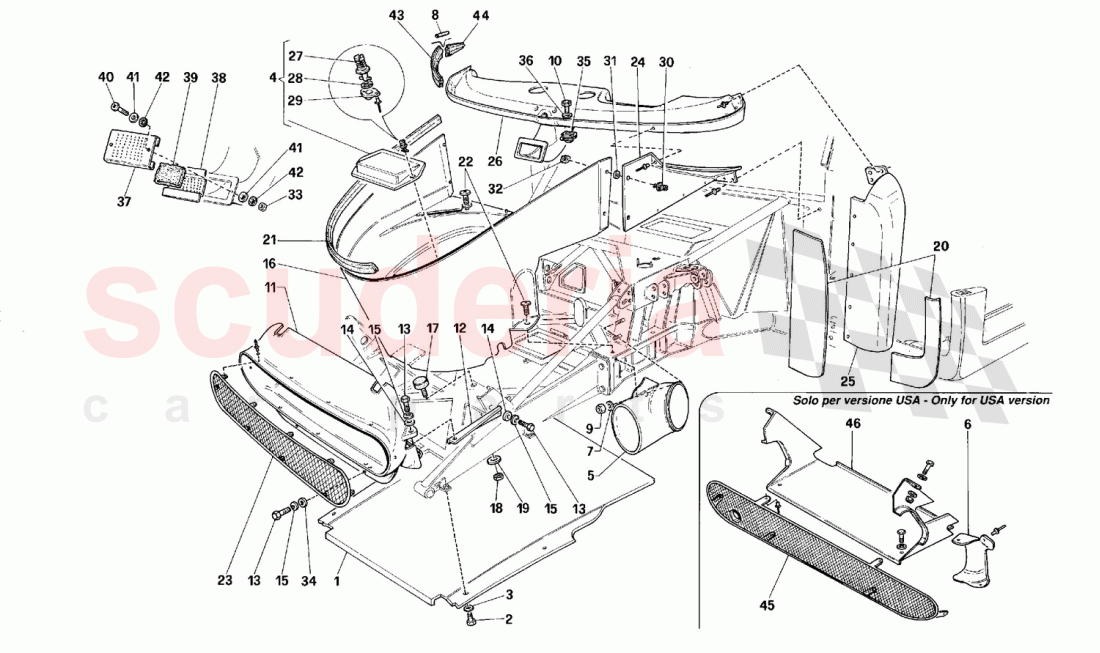

Ferrari F40 - External elements body - Front part

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62383800	Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60909500	ALLEN HEAD SCREW M6 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62506900	Battery cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62610900	L.H. air duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62900100	R.H. side conveyor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63394400	Tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62389300	Air central conveyor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62513300	L.H. bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62506800	Front holder -Not for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62302700	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62845500	R.H. red protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62493100	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14779611	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62472400	Front central grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62479500	LH. panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62390000	L.H. panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62385300	Under board	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62513600	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62468000	Stop ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62467900	Pin clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62468100	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62468000	Stop ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62467900	Pin clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101772	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20037008	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62561000	External shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62561100	Internal shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62572100	Plenum air filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13270572	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615176	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62494900	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62612500	R.H. terminal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62901200	Front central grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62900000	Air central conveyor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62612600	L.H. terminal	62612600 L.H. terminal	-	1	Enquire
-	62389900	R.H. panel	62389900 R.H. panel	-	1	Enquire
-	62479400	R.H. panel	62479400 R.H. panel	-	1	Enquire
-	62845600	L.H. red protection	62845600 L.H. red protection	-	1	Enquire
-	62732800	Front holder	62732800 Front holder Valid for USA - For battery / cover 62731800	-	1	Enquire
-	62513200	R.H. bracket	62513200 R.H. bracket	-	1	Enquire
-	62900200	L.H. side conveyor	62900200 L.H. side conveyor Valid for USA	-	1	Enquire
-	62610800	R.H. air duct	62610800 R.H. air duct Valid till car 78622	-	1	Enquire
-	62610800	R.H. air duct	62610800 R.H. air duct Valid from car 78623	-	1	Enquire
-	62731800	Battery cover	62731800 Battery cover 2nd type - l. mm 435	-	1	Enquire
-	62610900	L.H. air duct	62610900 L.H. air duct Valid from car 78623	-	1	Enquire
-	62901100	Floor	62901100 Floor Valid for USA	-	1	Enquire
1	62383800	Floor	62383800 Floor Not for USA	-	1	Enquire
2	60909500	ALLEN HEAD SCREW M6 X 15	60909500 ALLEN HEAD SCREW M6 X 15	-	11	Enquire
3	12648925	WASHER	12648925 WASHER	-	11	Enquire
4	62506900	Battery cover	62506900 Battery cover 1st type - l. mm 340	-	1	Enquire
5	62610900	L.H. air duct	62610900 L.H. air duct Valid till car 78622	-	1	Enquire
6	62900100	R.H. side conveyor	62900100 R.H. side conveyor Valid for USA	-	1	Enquire
7	12637824	WASHER	12637824 WASHER	-	6	Enquire
8	63394400	Tube	63394400 Tube	-	2	Enquire
9	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	4	Enquire
10	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	-	1	Enquire
11	62389300	Air central conveyor	62389300 Air central conveyor Not for USA	-	1	Enquire
12	62513300	L.H. bracket	62513300 L.H. bracket	-	1	Enquire
13	10902224	SCREW	10902224 SCREW	-	6	Enquire
14	12643724	WASHER	12643724 WASHER	-	4	Enquire
15	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
16	62506800	Front holder -Not for	62506800 Front holder -Not for USA - For battery / cover 62731800	-	1	Enquire
17	62302700	Plug	62302700 Plug	-	1	Enquire
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
19	12647724	WASHER	12647724 WASHER	-	1	Enquire
20	62845500	R.H. red protection	62845500 R.H. red protection	-	1	Enquire
21	62493100	Gasket	62493100 Gasket	-	1	Enquire
22	14779611	SCREW	14779611 SCREW	-	6	Enquire
23	62472400	Front central grille	62472400 Front central grille Not for USA	-	1	Enquire
24	62479500	LH. panel	62479500 LH. panel	-	1	Enquire
25	62390000	L.H. panel	62390000 L.H. panel	-	1	Enquire
26	62385300	Under board	62385300 Under board	-	1	Enquire
27	62513600	Pin	62513600 Pin	-	2	Enquire
28	62468000	Stop ring	62468000 Stop ring	-	2	Enquire
29	62467900	Pin clip	62467900 Pin clip	-	2	Enquire
30	62468100	Pin	62468100 Pin	-	4	Enquire
31	62468000	Stop ring	62468000 Stop ring	-	4	Enquire
32	62467900	Pin clip	62467900 Pin clip	-	4	Enquire
33	16101772	Nut	16101772 Nut	-	2	Enquire
34	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	2	Enquire
35	20037008	Spring	20037008 Spring	-	1	Enquire
36	12643724	WASHER	12643724 WASHER	-	1	Enquire
37	62561000	External shield	62561000 External shield	-	1	Enquire
38	62561100	Internal shield	62561100 Internal shield	-	1	Enquire
39	62572100	Plenum air filter	62572100 Plenum air filter	-	1	Enquire
40	13270572	Screw	13270572 Screw	-	2	Enquire
41	12639477	WASHER	12639477 WASHER	-	2	Enquire
42	10615176	Washer	10615176 Washer	-	2	Enquire
43	62494900	Gasket	62494900 Gasket	-	1	Enquire
44	62612500	R.H. terminal	62612500 R.H. terminal	-	1	Enquire
45	62901200	Front central grille	62901200 Front central grille Valid for USA	-	1	Enquire
46	62900000	Air central conveyor	62900000 Air central conveyor Valid for USA	-	1	Enquire
