Ferrari F40 - Water pump and pipings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
134084 Water pump body complete Enquire To Order
Photo Part No Description Price (each) Stock
135121 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
116157 Spacer Enquire To Order
Photo Part No Description Price (each) Stock
116159 Bearing Enquire To Order
Photo Part No Description Price (each) Stock
106227 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
105196 Sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
11060076 Seeger Ring Enquire To Order
Photo Part No Description Price (each) Stock
116158 Washer Enquire To Order
Photo Part No Description Price (each) Stock
100436 BLIND NUT Enquire To Order
Photo Part No Description Price (each) Stock
10730321 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16101521 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11198679 Washer Enquire To Order
Photo Part No Description Price (each) Stock
10205820 Feather key Enquire To Order
Photo Part No Description Price (each) Stock
11500820 Stud Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
16044424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
136304 THERMOMETRIC SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
136322 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
134086 Water pump complete (Front) Enquire To Order
Photo Part No Description Price (each) Stock
121253 Splindle for pulley Enquire To Order
Photo Part No Description Price (each) Stock
125964 Impeller Enquire To Order
Photo Part No Description Price (each) Stock
152051 Complete sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
152051 Complete sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
136741 Manifold for water outlet Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
103039 Sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
132980 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
134080 Junction pipe to water outlet manifolds Enquire To Order
Photo Part No Description Price (each) Stock
132981 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
106241 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
136291 Water outlet union Enquire To Order
Photo Part No Description Price (each) Stock
105189 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
134225 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
12180090 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
104628 GEARBOX THERMISTOR Enquire To Order
Photo Part No Description Price (each) Stock
199821 Generator control pulley Enquire To Order
Photo Part No Description Price (each) Stock
16042940 Screw Enquire To Order
Photo Part No Description Price (each) Stock
10260060 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
122844 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
133309 Pulley Enquire To Order
Photo Part No Description Price (each) Stock
128991 Thermostat Enquire To Order
Photo Part No Description Price (each) Stock
105192 O-Ring for Thermostat Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
152051 Complete sealing ring Enquire To Order
View All

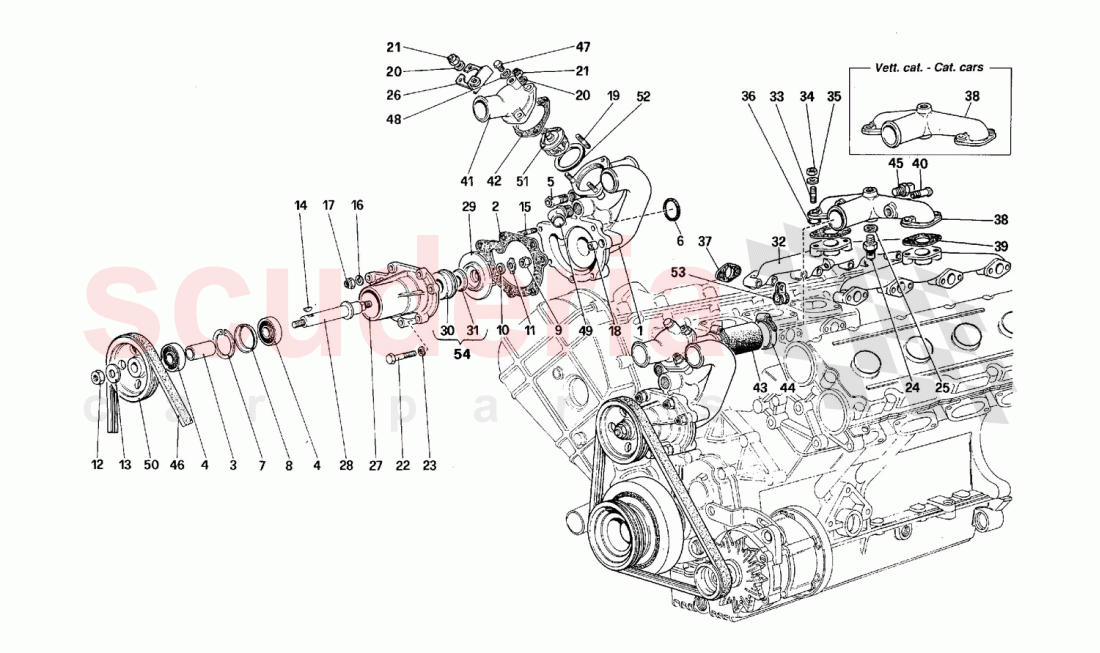

Water pump and pipings of Ferrari Ferrari F40 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 142849
Pulley
Valid for cars with catalyst 		- 1 Enquire
- 144010
Junction pipe to water outlet manifolds
outlet manifolds / Valid for cars with catalyst 		- 1 Enquire
- 144938
Manifold for water outlet
outlet / Valid for cars with catalyst 		- 2 Enquire
- 134086
Water pump complete (Front)
(Front) 		- 1 Enquire
- 134084
Water pump body complete
complete 		- 1 Enquire
- 134085
Water pump complete
Not for cars with catalyst 		- 1 Enquire
- 144247
Water pump complete
Valid for cars with catalyst 		- 1 Enquire
1 134084
Water pump body complete
Not as spare parts / With assembly 134084 		- 1 Enquire
2 135121
Gasket 		- 1 Enquire
3 116157
Spacer 		- 1 Enquire
4 116159
Bearing 		- 2 Enquire
5 106227
Fitting 		- 1 Enquire
6 105196
Sealing ring 		- 1 Enquire
7 11060076
Seeger Ring 		- 1 Enquire
8 116158
Washer 		- 1 Enquire
9 100436
BLIND NUT 		- 1 Enquire
10 10730321
WASHER 		- 1 Enquire
11 100434
Safety plate 		- 1 Enquire
12 16101521
NUT 		- 1 Enquire
13 11198679
Washer 		- 1 Enquire
14 10205820
Feather key 		- 1 Enquire
15 11500820
Stud 		- 3 Enquire
16 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
17 14059290
FLANGED NUT M6 		- 3 Enquire
18 102704
ALIGNMENT DOWEL 		- 2 Enquire
19 11500524
STUD BOLT 		- 3 Enquire
20 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
21 14059290
FLANGED NUT M6 		- 3 Enquire
22 16044424
SCREW 		- 4 Enquire
23 12601374
WASHER 		- 4 Enquire
24 136304
THERMOMETRIC SWITCH 		- 1 Enquire
25 10298460
GASKET 		- 1 Enquire
26 136322
Bracket 		- 1 Enquire
27 134086
Water pump complete (Front)
Not as spare parts / With assembly 134086 		- 1 Enquire
28 121253
Splindle for pulley 		- 1 Enquire
29 125964
Impeller 		- 1 Enquire
30 152051
Complete sealing ring
Not as spare part now / Replaced by part 54 		- 1 Enquire
31 152051
Complete sealing ring
Not as spare part now / Replaced by part 54 		- 1 Enquire
32 136741
Manifold for water outlet
outlet / Not for cars with catalyst 		- 2 Enquire
33 13516824
STUD BOLT 		- 4 Enquire
34 14040711
NUT M8 FLANGED 		- 4 Enquire
35 986899
WASHER 		- 4 Enquire
36 103039
Sealing ring 		- 4 Enquire
37 132980
GASKET 		- 8 Enquire
38 134080
Junction pipe to water outlet manifolds
outlet manifolds / Not for cars with catalyst 		- 1 Enquire
39 132981
GASKET 		- 2 Enquire
40 106241
Fitting 		- 1 Enquire
41 136291
Water outlet union 		- 1 Enquire
42 105189
Gasket 		- 1 Enquire
43 134225
Sleeve 		- 1 Enquire
44 12180090
Clamp 		- 2 Enquire
45 104628
GEARBOX THERMISTOR 		- 1 Enquire
46 199821
Generator control pulley 		- 1 Enquire
47 16042940
Screw 		- 1 Enquire
48 10260060
Gasket 		- 1 Enquire
49 122844
Fitting 		- 1 Enquire
50 133309
Pulley
Not for cars with catalyst 		- 1 Enquire
51 128991
Thermostat 		- 1 Enquire
52 105192
O-Ring for Thermostat
ARRIVING SOON 		- 1 Enquire
53 10441690
BRACKET WITH SHEATH 		- 1 Enquire
54 152051
Complete sealing ring 		- 1 Enquire
