Ferrari F40 - Injection device

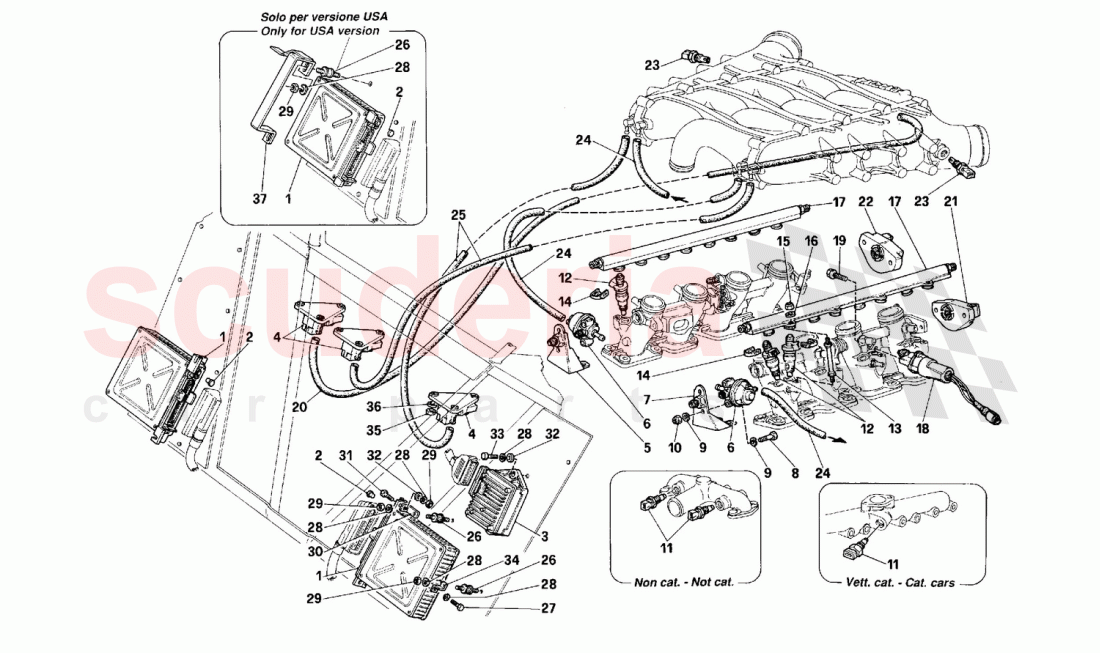

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	134527	Control unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139402	Plug -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136615	Module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134528	Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136169	Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134530	Regulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136190	Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125380	WATER TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134531	Jet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133106	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130402	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133108	Tank manifold assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133528	Actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138668	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138505	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137205	L.H. potentiometer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137206	R.H. potentiometer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130400	Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113021	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977521	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138343	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10978021	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61675800	L.H. bracket -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142751	R.H. bracket -Valid for USA-	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	142752	L.H. bracket -Valid for USA-	142752 L.H. bracket -Valid for USA-	-	1	Enquire
-	138032	R.H. bracket -Not for USA-	138032 R.H. bracket -Not for USA-	-	1	Enquire
-	148715	L.H. bracket -Valid for USA-	148715 L.H. bracket -Valid for USA-	-	1	Enquire
-	148714	R.H. bracket -Valid for USA-	148714 R.H. bracket -Valid for USA-	-	1	Enquire
-	148199	Plug -Valid for USA-	148199 Plug -Valid for USA-	-	2	Enquire
-	143401	Control unit -Valid for cars	143401 Control unit -Valid for cars with catalyst / Not for USA	-	2	Enquire
-	142778	Control unit	142778 Control unit Valid for USA	-	2	Enquire
1	134527	Control unit	134527 Control unit Not for cars with catalyst	-	2	Enquire
2	139402	Plug -Not for USA-	139402 Plug -Not for USA-	-	2	Enquire
3	136615	Module	136615 Module	-	1	Enquire
4	134528	Sensor	134528 Sensor	-	3	Enquire
5	136169	Support	136169 Support	-	1	Enquire
6	134530	Regulator	134530 Regulator	-	2	Enquire
7	136190	Support	136190 Support	-	1	Enquire
8	231625	SCREW	231625 SCREW	-	4	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
11	125380	WATER TEMPERATURE SENSOR	125380 WATER TEMPERATURE SENSOR	-	2	Enquire
12	134531	Jet	134531 Jet	-	16	Enquire
13	133106	Pin	133106 Pin	-	8	Enquire
14	130402	Spring	130402 Spring	-	16	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
16	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
17	133108	Tank manifold assy	133108 Tank manifold assy	-	2	Enquire
18	133528	Actuator	133528 Actuator	-	1	Enquire
19	138668	Screw	138668 Screw	-	3	Enquire
20	138505	PIPE	138505 PIPE	-	1	Enquire
21	137205	L.H. potentiometer	137205 L.H. potentiometer	-	1	Enquire
22	137206	R.H. potentiometer	137206 R.H. potentiometer	-	1	Enquire
23	130400	Sensor	130400 Sensor	-	2	Enquire
24	118901	RUBBER PIPE	118901 RUBBER PIPE	-	2	Enquire
25	122126	RUBBER PIPE	122126 RUBBER PIPE	-	2	Enquire
26	113021	Plug	113021 Plug	-	6	Enquire
27	10977521	SCREW	10977521 SCREW	-	2	Enquire
28	127493	WASHER	127493 WASHER	-	14	Enquire
29	15896470	NUT	15896470 NUT	-	10	Enquire
30	138343	Bracket	138343 Bracket	-	4	Enquire
31	10977624	SCREW	10977624 SCREW	-	4	Enquire
32	12637824	WASHER	12637824 WASHER	-	6	Enquire
33	10978021	SCREW	10978021 SCREW	-	2	Enquire
34	61675800	L.H. bracket -Not for USA-	61675800 L.H. bracket -Not for USA-	-	1	Enquire
35	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	9	Enquire
36	12604178	Washer	12604178 Washer	-	9	Enquire
37	142751	R.H. bracket -Valid for USA-	142751 R.H. bracket -Valid for USA-	-	1	Enquire
