Name: Heat exchangers
Rating: 4.4 (1 reviews)

View All

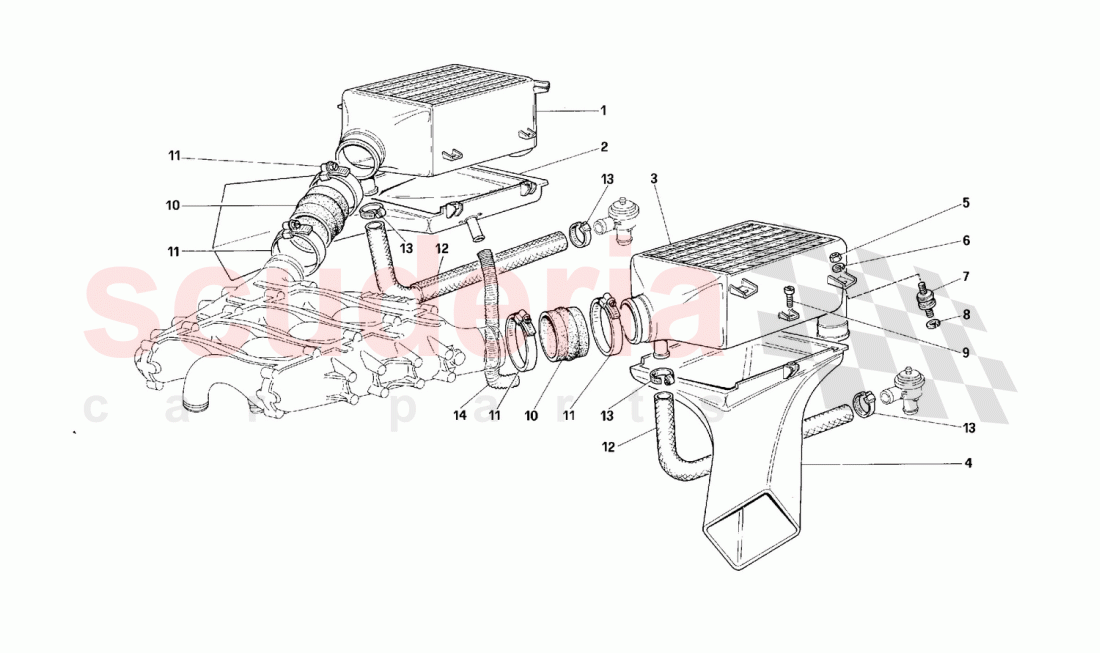

Ferrari F40 - Heat exchangers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	134540	Heat exchanger	$4,112.08	To Order

Photo	Part No	Description	Price (each)	Stock
	134542	Air inlet for R.H. exchanger	$1,690.50	To Order

Photo	Part No	Description	Price (each)	Stock
	134541	Heat exchanger	$4,112.08	To Order

Photo	Part No	Description	Price (each)	Stock
	134543	Air inlet for L.H. exchanger	$1,690.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	119365	Washer thick. mm. 2	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	134298	Pipe union	$565.16	To Order

Photo	Part No	Description	Price (each)	Stock
	122890	Clamp	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	136883	Tube	$316.75	To Order

Photo	Part No	Description	Price (each)	Stock
	168220	Screw Collar -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 268210-	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	148302	Pipe -Valid for USA-	$34.43	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	119363	Washer thick. mm. 1	119363 Washer thick. mm. 1	$4.85	6
-	119364	Washer thick. mm. 1,5	119364 Washer thick. mm. 1,5	$1.57	6
-	148419	Air inlet for R.H. exchanger	148419 Air inlet for R.H. exchanger Valid for USA	$1,139.25	1
-	148420	Air inlet for L.H. exchanger	148420 Air inlet for L.H. exchanger Valid for USA	$1,094.56	1
1	134540	Heat exchanger	134540 Heat exchanger	$4,112.08	1
2	134542	Air inlet for R.H. exchanger	134542 Air inlet for R.H. exchanger Not for USA	$1,690.50	1
3	134541	Heat exchanger	134541 Heat exchanger	$4,112.08	1
4	134543	Air inlet for L.H. exchanger	134543 Air inlet for L.H. exchanger Not for USA	$1,690.50	1
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	6
6	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	6
7	102947	VIBRATION DAMPER	102947 VIBRATION DAMPER	$19.24 MSRP: ~~19.52~~ (1.4% off)	6
8	119365	Washer thick. mm. 2	119365 Washer thick. mm. 2	$8.33 MSRP: ~~19.50~~ (57.3% off)	6
9	11568124	SCREW	11568124 SCREW	$0.94	6
10	134298	Pipe union	134298 Pipe union	$565.16	2
11	122890	Clamp	122890 Clamp	$1.78 MSRP: ~~2.25~~ (20.9% off)	4
12	136883	Tube	136883 Tube	$316.75	2
13	168220	Screw Collar -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 268210-	168220 Screw Collar -Applicable for CINA, USA, CDN, J- -Applicable from Ass. No. 90609- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 268210-	$1.65	4
14	148302	Pipe -Valid for USA-	148302 Pipe -Valid for USA-	$34.43	2
