Manifold and throttle bodies of Ferrari Ferrari F40

View All

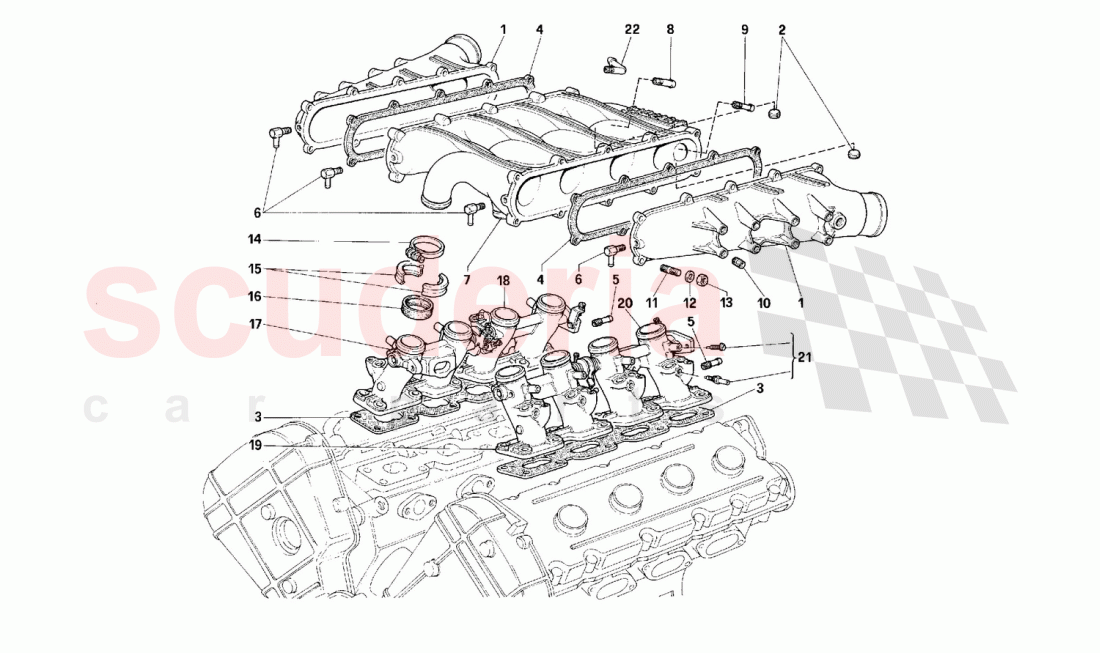

Ferrari F40 - Manifold and throttle bodies

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	135086	Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269750	THREADED PLUG - Ø 18 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134784	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135114	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117348	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135085	Case	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129808	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113652	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135113	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100044	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135686	Half ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135687	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133731	R.H. front intake manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133732	R.H. rear intake manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133733	L.H. front intake manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133734	L.H. rear intake manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000609	Overhaul set -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144342	Fitting	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	142774	L.H. rear intake manifold	142774 L.H. rear intake manifold Valid for USA	-	1	Enquire
-	70000733	Overhaul set -Valid for USA-	70000733 Overhaul set -Valid for USA-	-	4	Enquire
-	142772	R.H. rear intake manifold	142772 R.H. rear intake manifold Valid for USA	-	1	Enquire
-	142773	L.H. front intake manifold	142773 L.H. front intake manifold Valid for USA	-	1	Enquire
-	142771	R.H. front intake manifold	142771 R.H. front intake manifold Valid for USA	-	1	Enquire
1	135086	Cap	135086 Cap	-	2	Enquire
2	10269750	THREADED PLUG - Ø 18 mm	10269750 THREADED PLUG - Ø 18 mm	-	2	Enquire
3	134784	Gasket	134784 Gasket	-	2	Enquire
4	135114	Gasket	135114 Gasket	-	2	Enquire
5	117348	THREADED UNION	117348 THREADED UNION	-	2	Enquire
6	128016	CONNECTOR	128016 CONNECTOR	-	4	Enquire
7	135085	Case	135085 Case	-	1	Enquire
8	129808	THREADED UNION	129808 THREADED UNION	-	1	Enquire
9	113652	Union	113652 Union	-	1	Enquire
10	135113	Bush	135113 Bush	-	16	Enquire
11	13540924	STUD BOLT	13540924 STUD BOLT	-	20	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	20	Enquire
13	100044	Selflocking nut	100044 Selflocking nut	-	20	Enquire
14	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	8	Enquire
15	135686	Half ring	135686 Half ring	-	16	Enquire
16	135687	Gasket	135687 Gasket	-	8	Enquire
17	133731	R.H. front intake manifold	133731 R.H. front intake manifold Not for USA	-	1	Enquire
18	133732	R.H. rear intake manifold	133732 R.H. rear intake manifold Not for USA	-	1	Enquire
19	133733	L.H. front intake manifold	133733 L.H. front intake manifold Not for USA	-	1	Enquire
20	133734	L.H. rear intake manifold	133734 L.H. rear intake manifold Not for USA	-	1	Enquire
21	70000609	Overhaul set -Not for USA-	70000609 Overhaul set -Not for USA-	-	4	Enquire
22	144342	Fitting	144342 Fitting Valid for cars with catalyst	-	1	Enquire
