Oversupply System -Not For Cars With Catalyst-

Ferrari F40

Find Your Part

Ferrari F40 - Oversupply system -Not for cars with catalyst-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
115743 Air filter $87.41 To Order
Photo Part No Description Price (each) Stock
134945 L.H. cover $439.32 To Order
Photo Part No Description Price (each) Stock
134939 Holder Enquire To Order
Photo Part No Description Price (each) Stock
134535 L.H. air inlet assy $863.74 To Order
Photo Part No Description Price (each) Stock
10376077 Screw $22.43 To Order
Photo Part No Description Price (each) Stock
11030421 Screw $0.71 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
164358 R.H. Turbocharger $19,694.82 To Order
Photo Part No Description Price (each) Stock
164359 L.H. Turbocharger $19,694.82 To Order
Photo Part No Description Price (each) Stock
145379 Turbo support L.H. $1,363.89 To Order
Photo Part No Description Price (each) Stock
145378 Turbo support R.H. $1,363.89 To Order
Photo Part No Description Price (each) Stock
123385 Metallic ring $168.71 To Order
Photo Part No Description Price (each) Stock
136425 L.H. air inlet pipe $2,319.93 To Order
Photo Part No Description Price (each) Stock
136424 Hose $82.86 To Order
Photo Part No Description Price (each) Stock
12177190 Clamp $3.58 To Order
Photo Part No Description Price (each) Stock
124449 Sleeve $61.57 To Order
Photo Part No Description Price (each) Stock
122890 Clamp $1.65 To Order
Photo Part No Description Price (each) Stock
120748 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
135847 W.G. valve $2,685.11 To Order
Photo Part No Description Price (each) Stock
121098 Gasket $66.11 To Order
Photo Part No Description Price (each) Stock
137414 Shield $1,721.22 To Order
Photo Part No Description Price (each) Stock
13836271 SCREW $12.25 To Order
Photo Part No Description Price (each) Stock
68040000 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
138057 Shield $137.98 To Order
Photo Part No Description Price (each) Stock
134538 Bracket $221.74 To Order
Photo Part No Description Price (each) Stock
10978321 Screw $1.15 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127493 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.11 IN STOCK
Photo Part No Description Price (each) Stock
136423 Hose $341.84 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.79 IN STOCK
Photo Part No Description Price (each) Stock
136303 Hose $153.81 To Order
Photo Part No Description Price (each) Stock
129564 Valve Enquire To Order
Photo Part No Description Price (each) Stock
277185 BREATHER PIPE FROM REGULATOR CYLINDER $51.33 To Order
Photo Part No Description Price (each) Stock
137301 3 ways union $10.29 To Order
Photo Part No Description Price (each) Stock
121830 PIPE FROM UNION TO UNION FOR SOLENOID VALVE $8.27 To Order
Photo Part No Description Price (each) Stock
185208 RUBBER HOSE $4.47 To Order
Photo Part No Description Price (each) Stock
129085 Valve torsion damper $28.27 To Order
Photo Part No Description Price (each) Stock
138308 Silencer bracket $8.33 To Order
Photo Part No Description Price (each) Stock
277569 COMPL. BREATHER PIPE $60.96 To Order
Photo Part No Description Price (each) Stock
124346 RUBBER PIPE $7.05 To Order
Photo Part No Description Price (each) Stock
137642 Hard pipe $84.93 To Order
Photo Part No Description Price (each) Stock
14304021 SCREW M5 X 10 $0.21 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
135965 Valve $214.45 To Order
Photo Part No Description Price (each) Stock
137882 Bracket $70.59 To Order
Photo Part No Description Price (each) Stock
111199 Rubber pipe from W.G. Enquire To Order
Photo Part No Description Price (each) Stock
111463 Rubber pipe from solenoid valve Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 IN STOCK
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
10978224 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
137776 Support $96.26 To Order
Photo Part No Description Price (each) Stock
137775 L.H. shield $1,799.26 To Order
Photo Part No Description Price (each) Stock
137777 Support $96.26 To Order
Photo Part No Description Price (each) Stock
137774 Shield $1,713.69 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 IN STOCK
Photo Part No Description Price (each) Stock
68040000 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
137773 Shield $221.50 To Order
Photo Part No Description Price (each) Stock
13836071 SCREW $0.41 To Order
Photo Part No Description Price (each) Stock
68040000 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
View All

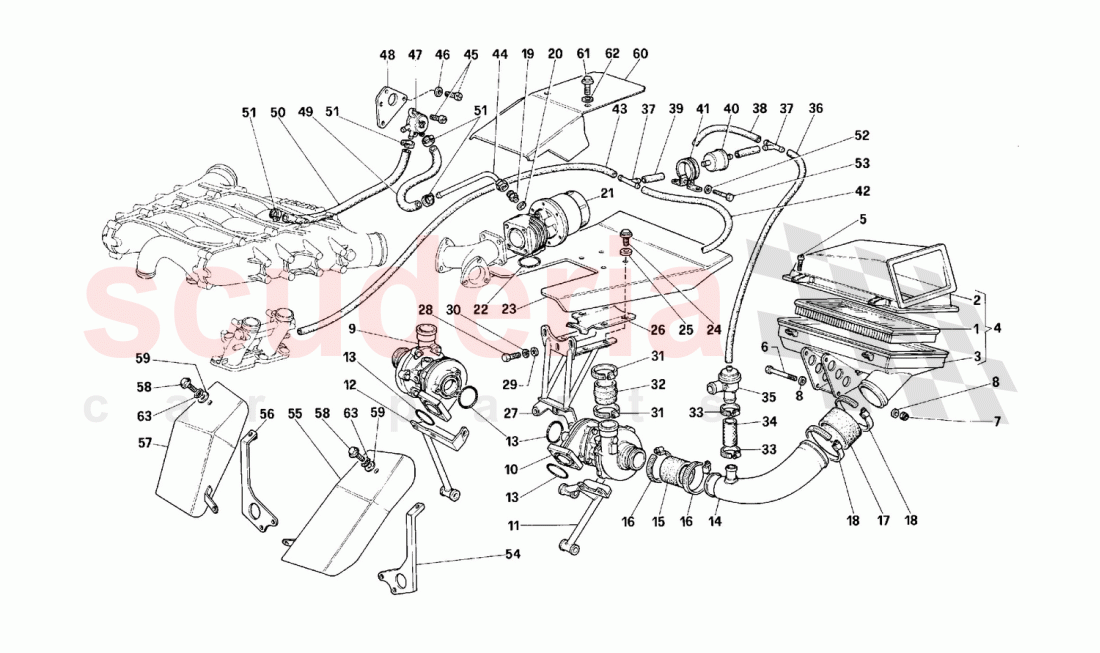

Oversupply system -Not for cars with catalyst- of Ferrari Ferrari F40 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 120750
Westgate membrane 		$604.38 1
- 136426
R.H. air inlet pipe 		$2,185.48 1
- 134938
Holder
With assembly 134534 		- 1 Enquire
- 134534
R.H. air inlet assy 		$863.74 1
- 134944
R.H. cover 		$433.23 1
1 115743
Air filter 		$87.41 2
2 134945
L.H. cover 		$439.32 1
3 134939
Holder
With assembly 134535 		- 1 Enquire
4 134535
L.H. air inlet assy 		$863.74 1
5 10376077
Screw 		$22.43 8
6 11030421
Screw 		$0.71 4
7 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
8 12643724
WASHER
IN STOCK 		$0.06 (88% off) 8
9 164358
R.H. Turbocharger 		$19,694.82 1
10 164359
L.H. Turbocharger 		$19,694.82 1
11 145379
Turbo support L.H. 		$1,363.89 1
12 145378
Turbo support R.H. 		$1,363.89 1
13 123385
Metallic ring 		$168.71 (12.8% off) 4
14 136425
L.H. air inlet pipe 		$2,319.93 1
15 136424
Hose 		$82.86 2
16 12177190
Clamp 		$3.58 (53.8% off) 4
17 124449
Sleeve 		$61.57 (69.3% off) 2
18 122890
Clamp 		$1.65 (26.7% off) 4
19 120748
Fitting 		- 1 Enquire
20 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.21 (79% off) 1
21 135847
W.G. valve 		$2,685.11 1
22 121098
Gasket 		$66.11 (13.2% off) 1
23 137414
Shield 		$1,721.22 1
24 13836271
SCREW 		$12.25 4
25 68040000
WASHER
IN STOCK 		$0.15 4
26 138057
Shield 		$137.98 1
27 134538
Bracket 		$221.74 1
28 10978321
Screw 		$1.15 3
29 12637824
WASHER
IN STOCK 		$0.06 (88% off) 3
30 127493
WASHER 		$0.08 (73.3% off) 3
31 296781
COLLAR 30-45MM
IN STOCK 		$9.11 4
32 136423
Hose 		$341.84 2
33 13000490
Screw Collar
IN STOCK 		$0.79 (58.4% off) 4
34 136303
Hose 		$153.81 2
35 129564
Valve 		- 2 Enquire
36 277185
BREATHER PIPE FROM REGULATOR CYLINDER 		$51.33 1
37 137301
3 ways union 		$10.29 2
38 121830
PIPE FROM UNION TO UNION FOR SOLENOID VALVE 		$8.27 1
39 185208
RUBBER HOSE 		$4.47 2
40 129085
Valve torsion damper 		$28.27 1
41 138308
Silencer bracket 		$8.33 1
42 277569
COMPL. BREATHER PIPE 		$60.96 1
43 124346
RUBBER PIPE 		$7.05 1
44 137642
Hard pipe 		$84.93 1
45 14304021
SCREW M5 X 10 		$0.21 3
46 127493
WASHER 		$0.08 (73.3% off) 1
47 135965
Valve 		$214.45 (23.7% off) 1
48 137882
Bracket 		$70.59 1
49 111199
Rubber pipe from W.G. 		- 1 Enquire
50 111463
Rubber pipe from solenoid valve 		- 1 Enquire
51 13432070
HOSE COLLAR
IN STOCK 		$0.57 (46.7% off) 4
52 12604178
Washer 		- 1 Enquire
53 10978224
SCREW 		$0.10 1
54 137776
Support 		$96.26 1
55 137775
L.H. shield 		$1,799.26 1
56 137777
Support 		$96.26 1
57 137774
Shield 		$1,713.69 1
58 10902424
SCREW
IN STOCK 		$0.15 (78.6% off) 2
59 68040000
WASHER
IN STOCK 		$0.15 2
60 137773
Shield 		$221.50 1
61 13836071
SCREW 		$0.41 2
62 68040000
WASHER
IN STOCK 		$0.15 2
63 12601374
WASHER
IN STOCK 		$0.02 (92% off) 2
