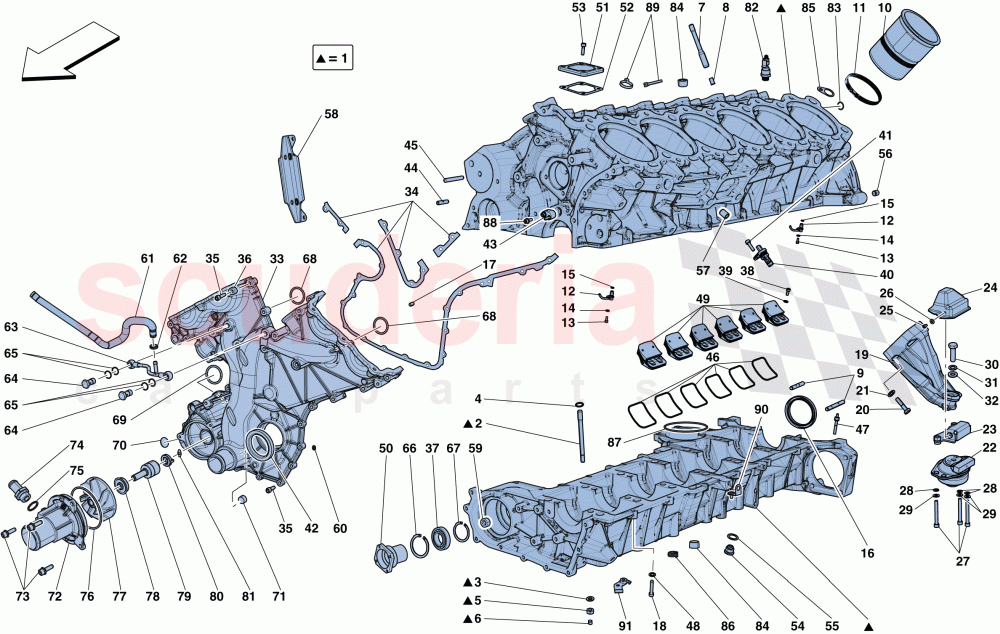

Ferrari F12 TDF - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	332018	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	336038	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333917	STUD BOLT	Enquire	To Order
	312153	STUD BOLT	Enquire	To Order
	330554	STUD BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	Enquire	To Order
	13547234	STUD BOLT	Enquire	To Order
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE D.94	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267424	LH ENGINE STRUT	Enquire	To Order
	267423	RH ENGINE STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11234734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296230	RH FLEXIBLE ENGINE MOUNTING BUSH	Enquire	To Order
	296231	LH FLEXIBLE ENGINE MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	Enquire	To Order
	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277259	BUSH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285972	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15215834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324199	FRONT CRANKCASE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316502	GASKET BETWEEN CRANKCASE AND FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231620	SCREW	Enquire	To Order
	14309224	SCREW	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	281356	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128799	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	857098	ANGULAR SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294944	COMPL. CHAIN COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255136	COMPL. VALVE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295132	PUMP DRIVE JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218440	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280123	MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297872	RUBBER WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294135	COMPL. WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211847	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11061576	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11068376	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10159001	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288787	WATER PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET D.79X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917267	WATER PUMP ROTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252192	WATER PUMP GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295219	WATER PUMP BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295218	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255939	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304074	OIL PRESSURE SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328523	DAMPER PLATE FOR TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294290	WIRING HARNESS MOUNTING BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	332018	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	332018 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY For vehicles up to engine No. 320662 also order oil pumps 331659 tab.18 pos.1, bracket 327526 tab.18 pos.9 and bush 327521 tab.18 pos.17; Applicable up to engine No. 342394	-	1	Enquire
1	336038	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	336038 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY For vehicles up to engine No. 320662 also order oil pumps 331659 tab.18 pos.1, bracket 327526 tab.18 pos.9 and bush 327521 tab.18 pos.17; Applicable from engine No. 342395	-	1	Enquire
2	333917	STUD BOLT	333917 STUD BOLT Applicable from engine No. 342395	-	14	Enquire
2	312153	STUD BOLT	312153 STUD BOLT Applicable up to engine No. 342394	-	14	Enquire
2	330554	STUD BOLT	330554 STUD BOLT Applicable from engine No. 342395	-	14	Enquire
2	312412	STUD BOLT	312412 STUD BOLT Applicable up to engine No. 342394	-	14	Enquire
3	178348	WASHER	178348 WASHER	-	28	Enquire
4	134704	O-RING ARRIVING SOON	134704 O-RING Also comes with engine gasket set ARRIVING SOON	-	28	Enquire
5	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	28	Enquire
6	176421	CENTERING DOWEL	176421 CENTERING DOWEL	-	14	Enquire
7	802590	STUD BOLT	802590 STUD BOLT	-	28	Enquire
8	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
9	13546934	STUD BOLT	13546934 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing, dowel section	-	2	Enquire
9	13547234	STUD BOLT	13547234 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing	-	1	Enquire
9	13546834	STUD BOLT	13546834 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing	-	3	Enquire
10	266366	CYLINDER SLEEVE D.94	266366 CYLINDER SLEEVE D.94 D. 94	-	12	Enquire
11	186251	O-RING	186251 O-RING Also comes with engine gasket set	-	36	Enquire
12	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE	-	12	Enquire
13	14302921	SCREW	14302921 SCREW M4 X 10	-	12	Enquire
14	11181474	WASHER	11181474 WASHER	-	12	Enquire
15	164877	O-RING	164877 O-RING Also comes with engine gasket set	-	12	Enquire
16	240214	GASKET ARRIVING SOON	240214 GASKET Also comes with engine gasket set ARRIVING SOON	-	1	Enquire
17	175611	CENTERING DOWEL	175611 CENTERING DOWEL Fastening front cover on crankcase	-	2	Enquire
18	231624	SCREW	231624 SCREW M6 X 45; Fastening crankcase to lower crankcase shell; Rear RH pump side	-	1	Enquire
18	231620	SCREW	231620 SCREW M6 X 25; Fastening crankcase to lower crankcase shell	-	12	Enquire
19	267424	LH ENGINE STRUT	267424 LH ENGINE STRUT	-	1	Enquire
19	267423	RH ENGINE STRUT	267423 RH ENGINE STRUT	-	1	Enquire
20	11234734	SCREW	11234734 SCREW M10 X 1.25 X 45; Fastening strut to crankcase	-	8	Enquire
21	11190574	WASHER	11190574 WASHER Fastening strut to crankcase	-	8	Enquire
22	296230	RH FLEXIBLE ENGINE MOUNTING BUSH	296230 RH FLEXIBLE ENGINE MOUNTING BUSH	-	1	Enquire
22	296231	LH FLEXIBLE ENGINE MOUNTING BUSH	296231 LH FLEXIBLE ENGINE MOUNTING BUSH	-	1	Enquire
23	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	269829 LH ENGINE MOUNTING BUSH LIMITER BRACKET	-	1	Enquire
23	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	269828 RH ENGINE MOUNTING BUSH LIMITER BRACKET	-	1	Enquire
24	277259	BUSH HEAT SHIELD	277259 BUSH HEAT SHIELD	-	2	Enquire
25	14305024	SCREW	14305024 SCREW M6 X 10	-	4	Enquire
26	14498801	WASHER	14498801 WASHER	-	4	Enquire
27	285972	SCREW	285972 SCREW M10 X 1.25 X 85	-	6	Enquire
28	127497	WASHER	127497 WASHER	-	6	Enquire
29	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	6	Enquire
30	15215834	SCREW	15215834 SCREW M12 X 1.75 X 60	-	2	Enquire
31	10738021	WASHER	10738021 WASHER	-	2	Enquire
32	127498	WASHER	127498 WASHER	-	2	Enquire
33	324199	FRONT CRANKCASE COVER	324199 FRONT CRANKCASE COVER	-	1	Enquire
34	316502	GASKET BETWEEN CRANKCASE AND FRONT COVER	316502 GASKET BETWEEN CRANKCASE AND FRONT COVER Also comes with engine gasket set	-	1	Enquire
35	231620	SCREW	231620 SCREW M6 X 30	-	6	Enquire
35	231620	SCREW	231620 SCREW M6 X 25	-	6	Enquire
35	14309224	SCREW	14309224 SCREW M6 X 65	-	1	Enquire
35	10589624	SCREW	10589624 SCREW M6 X 80	-	3	Enquire
35	231624	SCREW	231624 SCREW M6 X 45	-	2	Enquire
35	231625	SCREW	231625 SCREW M6 X 50	-	11	Enquire
36	281356	SPACER	281356 SPACER	-	1	Enquire
37	128799	BEARING	128799 BEARING	-	1	Enquire
38	13026924	SCREW	13026924 SCREW M6 X 14	-	12	Enquire
39	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	14	Enquire
40	857098	ANGULAR SPEED SENSOR	857098 ANGULAR SPEED SENSOR	-	1	Enquire
41	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	1	Enquire
42	210359	GASKET	210359 GASKET Also comes with engine gasket set	-	1	Enquire
43	294944	COMPL. CHAIN COOLING NOZZLE	294944 COMPL. CHAIN COOLING NOZZLE	-	1	Enquire
44	13543124	STUD BOLT	13543124 STUD BOLT M8 X 16; Shaft length 16 mm	-	1	Enquire
45	13543824	STUD BOLT	13543824 STUD BOLT M8 X 16; Shaft length 40 mm	-	1	Enquire
46	154691	GASKET	154691 GASKET Also comes with engine gasket set	-	6	Enquire
47	219283	STUD BOLT	219283 STUD BOLT Fastening crankcase to rear LH lower crankcase shell	-	1	Enquire
48	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
49	255136	COMPL. VALVE HOLDER	255136 COMPL. VALVE HOLDER	-	6	Enquire
50	295132	PUMP DRIVE JOINT	295132 PUMP DRIVE JOINT	-	1	Enquire
51	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	-	1	Enquire
52	317312	GASKET	317312 GASKET Also comes with engine gasket set	-	1	Enquire
53	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	4	Enquire
54	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	-	1	Enquire
55	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 Also comes with engine gasket set	-	1	Enquire
56	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
57	218440	THREADED INSERT	218440 THREADED INSERT	-	8	Enquire
58	280123	MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	280123 MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	-	1	Enquire
59	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	1	Enquire
60	216292	GASKET	216292 GASKET Also comes with engine gasket set	-	6	Enquire
61	297872	RUBBER WATER DRAIN PIPE	297872 RUBBER WATER DRAIN PIPE	-	1	Enquire
62	177995	CLAMP	177995 CLAMP	-	1	Enquire
63	294135	COMPL. WATER DRAIN PIPE	294135 COMPL. WATER DRAIN PIPE	-	1	Enquire
64	211847	HOSE	211847 HOSE	-	2	Enquire
65	10260960	GASKET	10260960 GASKET	-	4	Enquire
66	11061576	SEEGER RING	11061576 SEEGER RING	-	1	Enquire
67	11068376	CIRCLIP	11068376 CIRCLIP	-	1	Enquire
68	183010	O-RING	183010 O-RING	-	2	Enquire
69	289278	O-RING	289278 O-RING	-	1	Enquire
70	10159001	PLUG	10159001 PLUG	-	1	Enquire
71	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	1	Enquire
72	288787	WATER PUMP COVER	288787 WATER PUMP COVER	-	1	Enquire
73	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	3	Enquire
74	253823	CONNECTOR	253823 CONNECTOR	-	1	Enquire
75	11270550	O-RING	11270550 O-RING	-	1	Enquire
76	253797	GASKET D.79X2	253797 GASKET D.79X2	-	1	Enquire
77	917267	WATER PUMP ROTOR	917267 WATER PUMP ROTOR	-	1	Enquire
78	252192	WATER PUMP GASKET	252192 WATER PUMP GASKET	-	1	Enquire
79	295219	WATER PUMP BEARING	295219 WATER PUMP BEARING	-	1	Enquire
80	295218	JOINT	295218 JOINT	-	1	Enquire
81	255939	CLIP	255939 CLIP	-	1	Enquire
82	304074	OIL PRESSURE SENDER	304074 OIL PRESSURE SENDER	-	1	Enquire
83	137192	O-RING	137192 O-RING	-	1	Enquire
84	282753	THREADED PLUG	282753 THREADED PLUG	-	8	Enquire
85	328523	DAMPER PLATE FOR TIMING SENSOR	328523 DAMPER PLATE FOR TIMING SENSOR	-	4	Enquire
86	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	-	1	Enquire
87	176388	O-RING	176388 O-RING	-	1	Enquire
88	282393	SCREW	282393 SCREW M6 X 16	-	1	Enquire
89	206739	CLAMP	206739 CLAMP	-	2	Enquire
90	149694	PIPE FASTENER BRACKET	149694 PIPE FASTENER BRACKET	-	1	Enquire
91	294290	WIRING HARNESS MOUNTING BRACKET	294290 WIRING HARNESS MOUNTING BRACKET	-	1	Enquire
