Alternator - Starter Motor

Ferrari F12 TDF

Find Your Part

Ferrari F12 TDF - ALTERNATOR - STARTER MOTOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
322484 ALTERNATOR Enquire To Order
Photo Part No Description Price (each) Stock
14308724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10569474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
14308224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10569474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
8332052 BELT TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
268567 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
295763 BELT TIGHTENER Enquire To Order
Photo Part No Description Price (each) Stock
318332 BELT Enquire To Order
Photo Part No Description Price (each) Stock
233644 BELT TIGHTENER Enquire To Order
Photo Part No Description Price (each) Stock
314545 BELT Enquire To Order
Photo Part No Description Price (each) Stock
196216 SCREW FOR DAMPER FIXING Enquire To Order
Photo Part No Description Price (each) Stock
263683 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
962187 STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
277661 REAR STARTER MOTOR MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12646621 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248471 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
284426 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
341579 STARTER MOTOR HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
291924 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
959229 STARTER MOTOR SHIELD MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
290295 ALTERNATOR HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
258137 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
288320 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
13578324 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
324198 BELT TIGHTENER MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
12646621 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
282190 WIRING HARNESS FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
294613 SMOOTH PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
14307434 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16102314 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10418901 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
View All

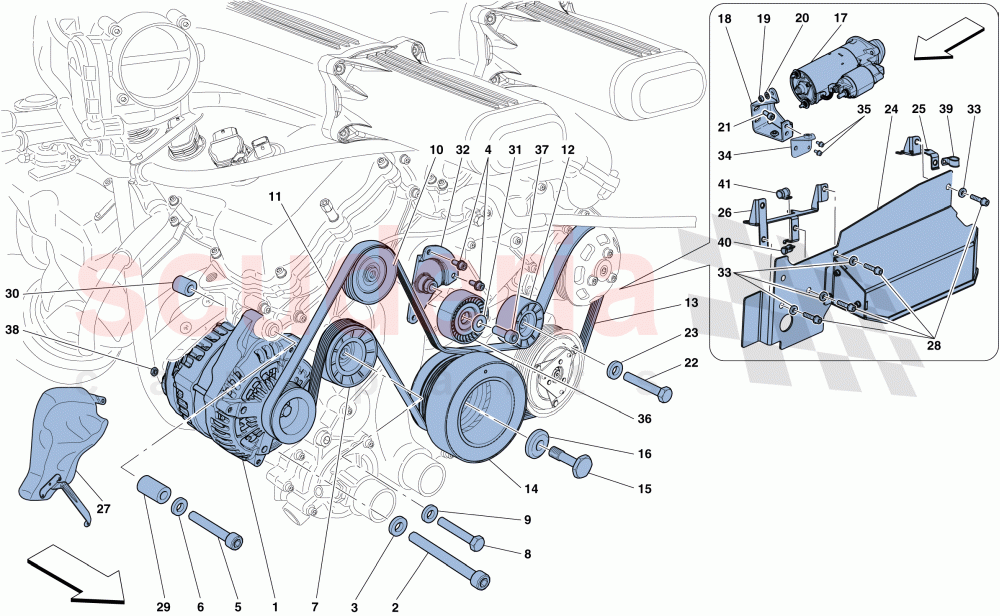

ALTERNATOR - STARTER MOTOR of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 322484
ALTERNATOR 		- 1 Enquire
2 14308724
SCREW
M10 X 1.25 X 100 		- 1 Enquire
3 10569474
WASHER 		- 1 Enquire
4 248334
SCREW M6 X 14MM
M6 X 16 		- 3 Enquire
5 14308224
SCREW
M10 X 1.25 X 65 		- 1 Enquire
6 10569474
WASHER 		- 1 Enquire
7 8332052
BELT TENSIONER 		- 1 Enquire
8 268567
SCREW
M8 X 60 		- 1 Enquire
9 11193874
WASHER 		- 1 Enquire
10 295763
BELT TIGHTENER 		- 1 Enquire
11 318332
BELT 		- 1 Enquire
12 233644
BELT TIGHTENER 		- 1 Enquire
13 314545
BELT 		- 1 Enquire
15 196216
SCREW FOR DAMPER FIXING 		- 1 Enquire
16 263683
WASHER 		- 1 Enquire
17 962187
STARTER MOTOR 		- 1 Enquire
18 277661
REAR STARTER MOTOR MOUNTING BRACKET 		- 1 Enquire
19 14059290
FLANGED NUT M6 		- 2 Enquire
20 12646621
WASHER 		- 2 Enquire
21 248471
SCREW
M8 X 20 		- 2 Enquire
22 284426
SCREW
M8 X 65 		- 1 Enquire
23 11193874
WASHER 		- 1 Enquire
24 341579
STARTER MOTOR HEAT SHIELD 		- 1 Enquire
25 291924
BRACKET 		- 1 Enquire
26 959229
STARTER MOTOR SHIELD MOUNTING BRACKET 		- 1 Enquire
27 290295
ALTERNATOR HEAT SHIELD 		- 1 Enquire
28 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 2 Enquire
28 248334
SCREW M6 X 14MM
M6 X 14 		- 5 Enquire
29 258137
BUSH 		- 2 Enquire
30 288320
THREADED BUSHING 		- 2 Enquire
31 13578324
WASHER 		- 1 Enquire
32 324198
BELT TIGHTENER MOUNT 		- 1 Enquire
33 12646621
WASHER 		- 5 Enquire
34 282190
WIRING HARNESS FASTENER BRACKET 		- 1 Enquire
35 248334
SCREW M6 X 14MM
M6 X 12 		- 2 Enquire
36 294613
SMOOTH PULLEY 		- 1 Enquire
37 14307434
SCREW 		- 1 Enquire
38 16102314
NUT 		- 1 Enquire
39 10418901
BRACKET 		- 1 Enquire
40 10441590
BRACKET WITH SHEATH 		- 1 Enquire
41 10441790
BRACKET WITH SHEATH 		- 1 Enquire
