Ferrari F12 TDF - TIMING SYSTEM - DRIVE

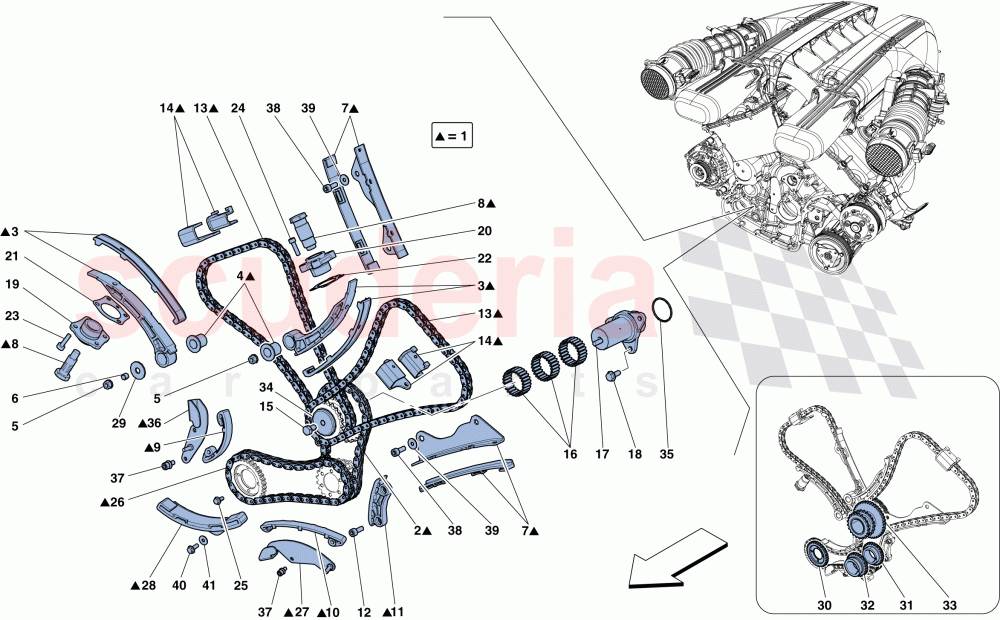

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315599	VALVE TIMING AND PUMP DRIVE SYSTEM	$1,785.90	To Order

Photo	Part No	Description	Price (each)	Stock
	312629	CHAIN	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	260614	MOBILE SHOE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	183929	BUSH	$7.73	To Order

Photo	Part No	Description	Price (each)	Stock
	198034	FIXED SHOE	$73.80	To Order

Photo	Part No	Description	Price (each)	Stock
	267099	HYDRAULIC CHAIN TENSIONER	$118.72	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	SHOE	$100.33	To Order

Photo	Part No	Description	Price (each)	Stock
	282395	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	254263	CHAIN	$117.74	To Order

Photo	Part No	Description	Price (each)	Stock
	239566	COMPL. UPPER FIXED SHOE	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	187742	ROLLER BEARING CAGE	$11.90	To Order

Photo	Part No	Description	Price (each)	Stock
	289896	MOUNTING	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	181336	SCREW	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	268314	BUSH	$51.74	To Order

Photo	Part No	Description	Price (each)	Stock
	252512	BUSH	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	317023	GASKET	$10.26	To Order

Photo	Part No	Description	Price (each)	Stock
	317022	GASKET	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	181336	SCREW	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	186668	SCREW	$15.48	To Order

Photo	Part No	Description	Price (each)	Stock
	271880	CHAIN	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	265712	MOUNTING	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	277283	FIXED SHOE	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	175306	SHOULDER	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	288731	PUMP DRIVE GEAR	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	299590	INNER CRANKSHAFT GEAR	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	301217	EXTERNAL CRANKSHAFT GEAR	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	299589	DRIVE GEAR	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	194262	SHOULDER	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	265180	MOUNTING	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	181336	SCREW	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12649624	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	315599	VALVE TIMING AND PUMP DRIVE SYSTEM	315599 VALVE TIMING AND PUMP DRIVE SYSTEM	$1,785.90	1
2	312629	CHAIN	312629 CHAIN	$481.36	1
3	260614	MOBILE SHOE	260614 MOBILE SHOE	$433.23	2
4	175303	BUSH	175303 BUSH	$37.25	2
5	14040711	NUT	14040711 NUT	$0.41	2
6	183929	BUSH	183929 BUSH	$7.73	2
7	198034	FIXED SHOE	198034 FIXED SHOE	$73.80	2
8	267099	HYDRAULIC CHAIN TENSIONER	267099 HYDRAULIC CHAIN TENSIONER	$118.72	2
9	257626	SHOE	257626 SHOE	$100.33	1
10	272014	SHOE	272014 SHOE	$70.59	1
11	309750	FIXED SHOE	309750 FIXED SHOE	$78.82	1
12	282395	SCREW	282395 SCREW M6 X 20	$0.70	2
13	254263	CHAIN	254263 CHAIN	$117.74	2
14	239566	COMPL. UPPER FIXED SHOE	239566 COMPL. UPPER FIXED SHOE	$50.15	2
15	16043124	SCREW	16043124 SCREW M8 X 14	$0.18	1
16	187742	ROLLER BEARING CAGE	187742 ROLLER BEARING CAGE	$11.90	3
17	289896	MOUNTING	289896 MOUNTING	$208.58	1
18	181336	SCREW	181336 SCREW M6 X 16	$3.36 MSRP: ~~4.75~~ (29.3% off)	3
19	268314	BUSH	268314 BUSH	$51.74	1
20	252512	BUSH	252512 BUSH	$97.86	1
21	317023	GASKET	317023 GASKET	$10.26	1
22	317022	GASKET	317022 GASKET Also comes with engine gasket set	$3.36	1
23	181336	SCREW	181336 SCREW M6 X 16	$3.36 MSRP: ~~4.75~~ (29.3% off)	4
24	231619	SCREW	231619 SCREW M6 X 18	$0.31	4
25	186668	SCREW	186668 SCREW M5 X 12	$15.48	4
26	271880	CHAIN	271880 CHAIN	$139.58	1
27	265712	MOUNTING	265712 MOUNTING	$372.69	1
28	277283	FIXED SHOE	277283 FIXED SHOE	$372.69	1
29	175306	SHOULDER	175306 SHOULDER	$4.30	1
30	288731	PUMP DRIVE GEAR	288731 PUMP DRIVE GEAR	$192.54	1
31	299590	INNER CRANKSHAFT GEAR	299590 INNER CRANKSHAFT GEAR Z. 26; Internal	$288.81	1
32	301217	EXTERNAL CRANKSHAFT GEAR	301217 EXTERNAL CRANKSHAFT GEAR Z. 26; External	$208.58	1
33	299589	DRIVE GEAR	299589 DRIVE GEAR	$481.36	1
34	194262	SHOULDER	194262 SHOULDER	$41.70	1
35	154191	GASKET	154191 GASKET Also comes with engine gasket set	$1.47 MSRP: ~~2.52~~ (41.7% off)	1
36	265180	MOUNTING	265180 MOUNTING	$77.39	1
37	282393	SCREW	282393 SCREW M6 X 14	$0.78	4
38	86768100	SCREW	86768100 SCREW M8 X 16	$0.50	3
39	163759	WASHER	163759 WASHER	$14.28	3
40	181336	SCREW	181336 SCREW M6 X 16	$3.36 MSRP: ~~4.75~~ (29.3% off)	2
41	12649624	WASHER	12649624 WASHER	-	2	Enquire
